Introduction

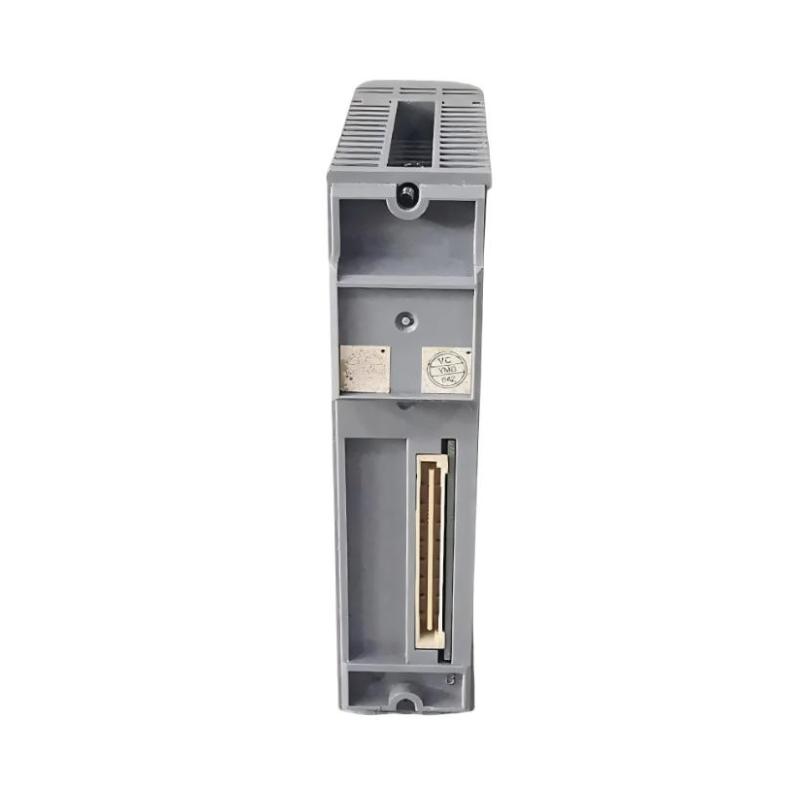

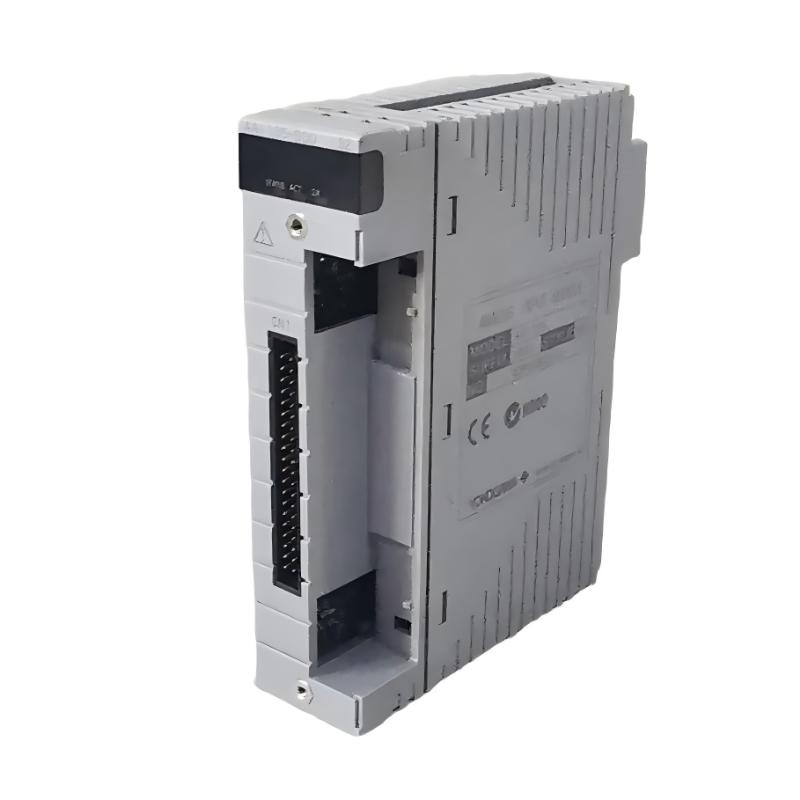

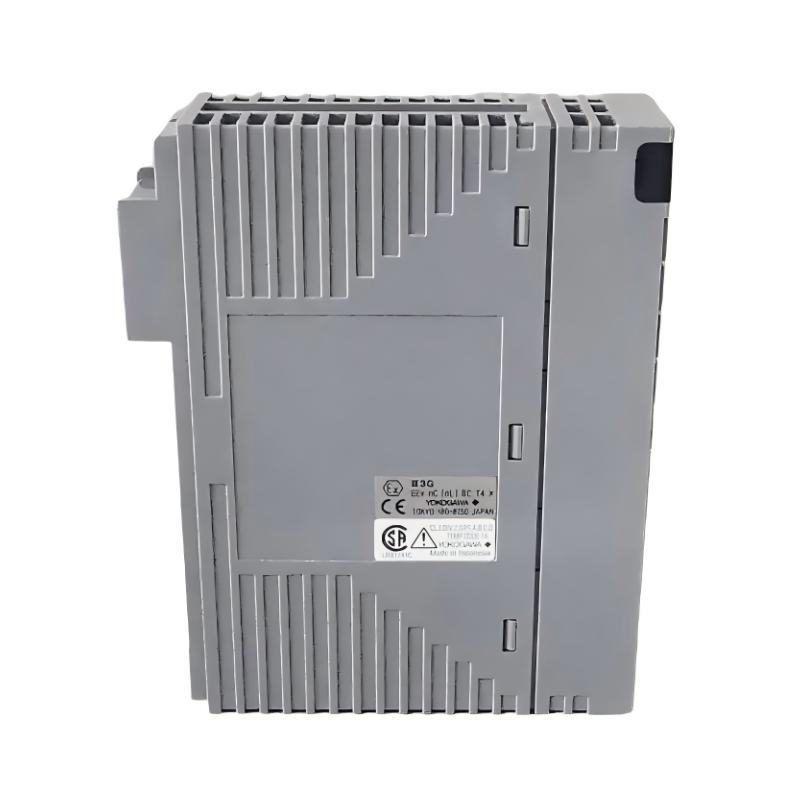

The Yokogawa AAP135-S50/K4A00 Analog I/O Module combines precision, reliability, and flexibility for industrial automation. It is designed to deliver stable and accurate analog signal conversion for real-time process monitoring and control, making it ideal for demanding production environments. Engineers can rely on this module for high-performance integration into SCADA and DCS systems.

Technical Specifications

Feature	Specification
Input Type	Voltage/Current (0–10V, 4–20mA)
Output Type	Voltage/Current (0–10V, 4–20mA)
Accuracy	±0.1% of full scale
Response Time	<10 ms
Isolation	Channel-to-channel isolation
Operating Temperature	−10°C to 55°C
Dimensions	107.5 × 32.8 × 130 mm
Weight	0.3 kg
Mounting	DIN Rail / Rack Mount

Recommended Related Models

Yokogawa AAP136-S50/K4A01 – High-density Analog Input/Output Module
Yokogawa AAP138-S50/K4A02 – Enhanced Temperature Signal Module
Yokogawa AAP139-S50/K4A03 – Multi-channel Voltage/Current Module
Yokogawa AAP140-S50/K4A04 – High-Precision Process Control I/O Module

Popular Related Models

Yokogawa AAP134-S50/K4A05 – Standard Analog I/O Module
Yokogawa AAP137-S50/K4A06 – High-Precision Current Output Module
Yokogawa AAP141-S50/K4A07 – Compact Analog Signal Module
Yokogawa AAP142-S50/K4A08 – Universal Analog Input/Output Module

Applications

Continuous process control in chemical, petrochemical, and pharmaceutical plants
Monitoring and regulating temperature, pressure, and flow in production lines
Integration with SCADA (Supervisory Control and Data Acquisition) systems
Use in DCS (Distributed Control Systems) for real-time process optimization
Signal acquisition for critical industrial automation processes

Advantages

High Accuracy and Stability: Ensures precise analog signal processing in demanding environments.
Versatile I/O Support: Handles multiple analog input and output types, including voltage and current signals.
Robust Industrial Design: Built for reliability under harsh factory conditions.
Compact and Easy to Install: Space-saving form factor for simplified integration.
Seamless DCS Compatibility: Works smoothly with Yokogawa CENTUM and other major control systems.

Technical FAQs

What types of analog signals does this module support?
Voltage (0–10V) and current (4–20mA) signals with configurable ranges.
Is it suitable for high-speed process control?
Yes, with fast sampling rates under 10 ms response time.
Does it provide channel-to-channel isolation?
Yes, each channel is electrically isolated to prevent interference.
Can it operate in extreme temperatures?
Yes, it supports industrial ranges from −10°C to 55°C.
How is configuration handled?
Through Yokogawa DCS engineering software with intuitive parameter settings.
Does it support redundant I/O systems?
Yes, for high availability in critical processes.
Is calibration required?
Minimal, as it is factory-calibrated for standard ranges.
What is the expected operational lifespan?
Over 10 years with proper maintenance.
Can it provide diagnostic feedback?
Yes, remote diagnostics are accessible via DCS or networked field systems.
Is it compatible with other Yokogawa modules?
Fully compatible with Yokogawa analog and digital I/O modules.
