Introduction

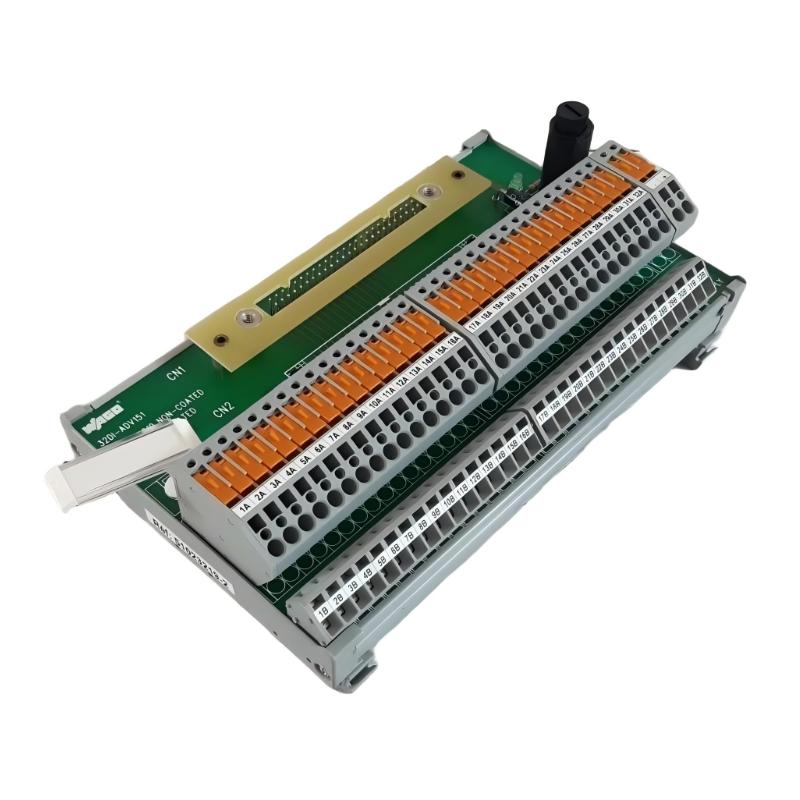

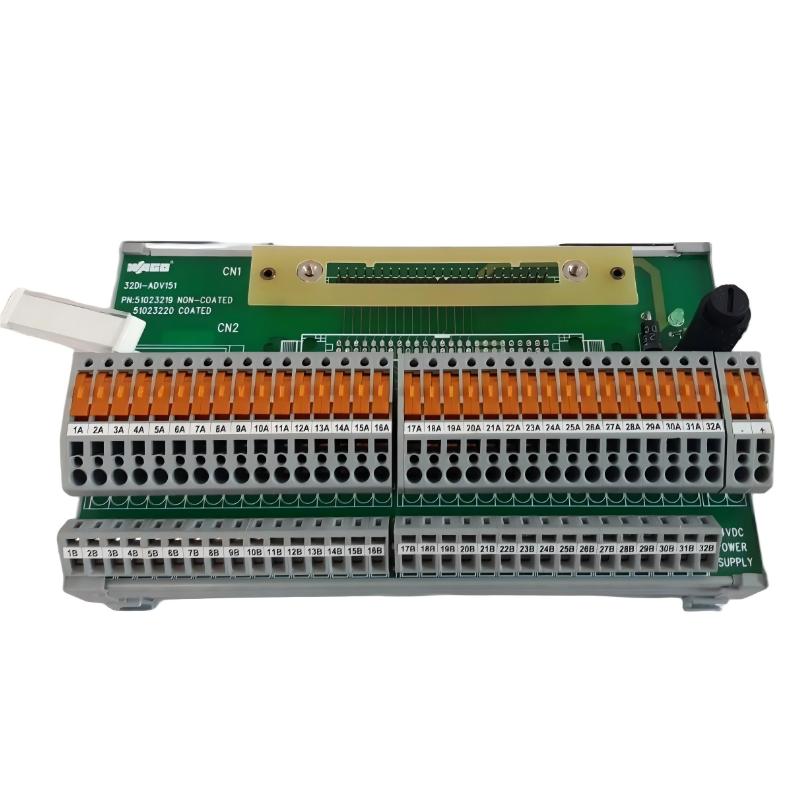

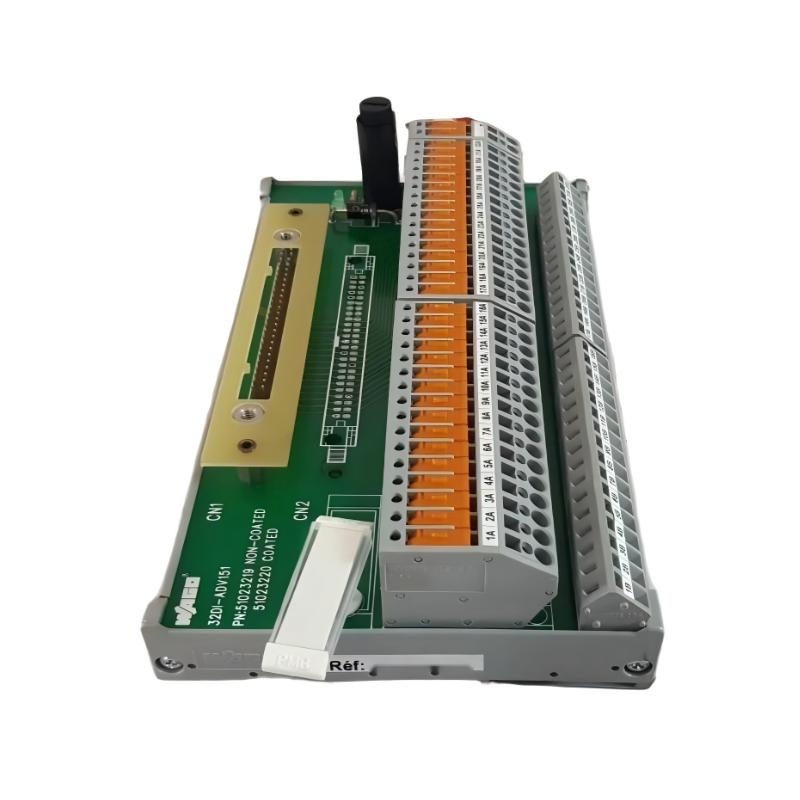

The Yokogawa ADV151-DI32 Numeric Input Module provides reliable, high-speed acquisition of digital signals for industrial automation systems. Its 32-channel capacity, robust design, and seamless integration with DCS and SCADA platforms make it ideal for engineers who require precision and durability in process monitoring.

Technical Specifications

Feature	Specification
Input Type	Numeric / Discrete Input
Channels	32
Response Time	<10 ms
Isolation	Channel-to-channel isolation
Operating Temperature	−10°C to 55°C
Dimensions	107.5 × 130 × 32.8 mm
Weight	0.3 kg
Mounting	DIN Rail / Rack Mount

Recommended Related Models

Yokogawa ADV152-DI64 – 64-Channel Numeric Input Module
Yokogawa ADV153-DI16 – Compact 16-Channel Digital Input Module
Yokogawa ADV154-DI48 – High-Speed 48-Channel Input Module
Yokogawa ADV155-DI32/HR – High-Resolution 32-Channel Input Module

Popular Related Models

Yokogawa ADV150-DI16 – Standard 16-Channel Digital Input Module
Yokogawa ADV156-DI64 – High-Density 64-Channel Input Module
Yokogawa ADV157-DI32 – Multi-Channel Numeric Input Module
Yokogawa ADV158-DI48 – Compact High-Speed 48-Channel Input Module

Applications

High-speed digital signal acquisition in industrial automation systems
Monitoring discrete input signals from sensors, switches, and relays
Integration with SCADA (Supervisory Control and Data Acquisition) platforms
Use in DCS (Distributed Control Systems) for real-time process monitoring
Data collection for critical production control loops

Advantages

Fast and Reliable Digital Input: Ensures timely and accurate reading of numeric signals
Flexible Channel Support: Handles multiple discrete input channels efficiently
Rugged Industrial Design: Durable construction suitable for harsh plant environments
Easy Integration: Plug-and-play with Yokogawa DCS and other major automation systems
Compact Form Factor: Space-saving design simplifies installation and maintenance

Technical FAQs

What type of signals does this module accept?
Digital discrete signals from sensors, switches, and other devices.
How many input channels are supported?
Supports up to 32 discrete input channels.
Is there electrical isolation between channels?
Yes, to prevent interference and ensure signal integrity.
Can it handle high-speed digital signals?
Yes, designed for fast sampling to support real-time control.
What is the typical response time?
Response time is less than 10 ms.
Is it compatible with redundant systems?
Yes, it can be integrated into redundant I/O configurations.
How is the module configured?
Configuration is performed through Yokogawa DCS engineering software.
Does it provide diagnostic information?
Yes, remote diagnostics are available via DCS or field networks.
Is calibration required?
No calibration is necessary for standard digital inputs.
What is the operating temperature range?
−10°C to 55°C, suitable for standard industrial environments.
