Introduction

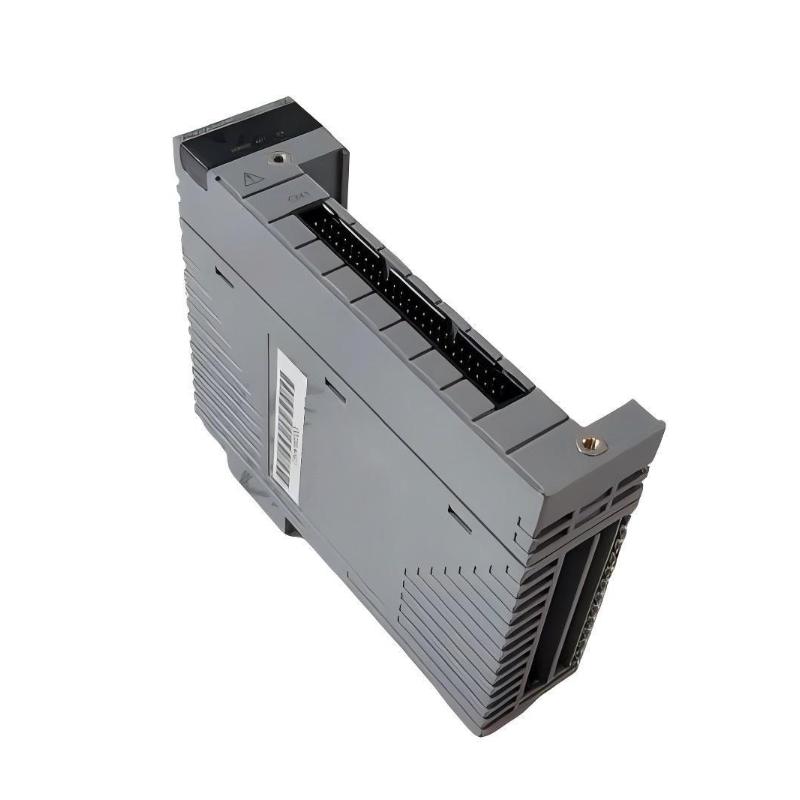

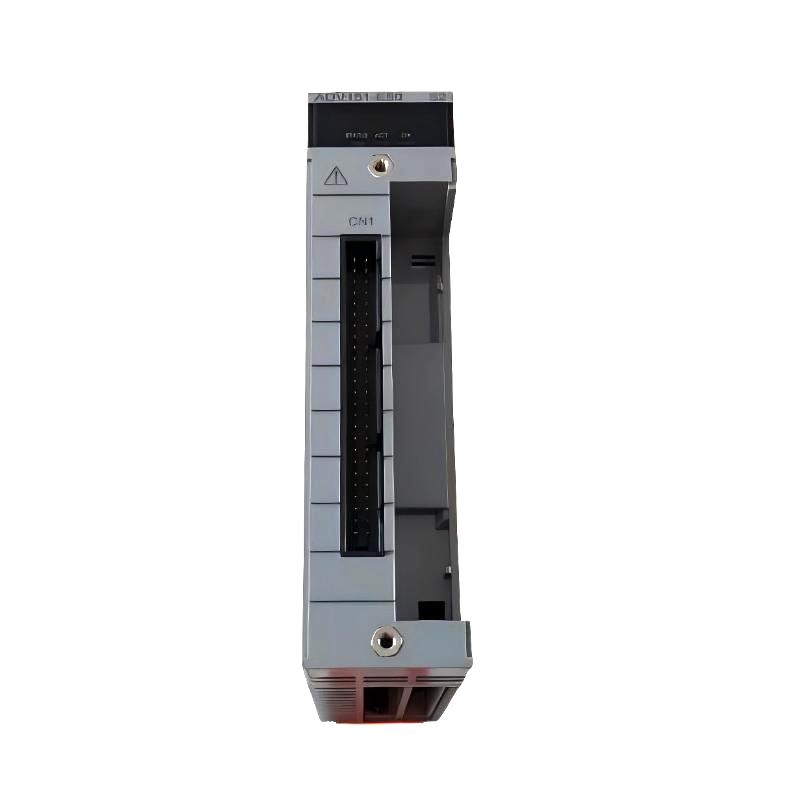

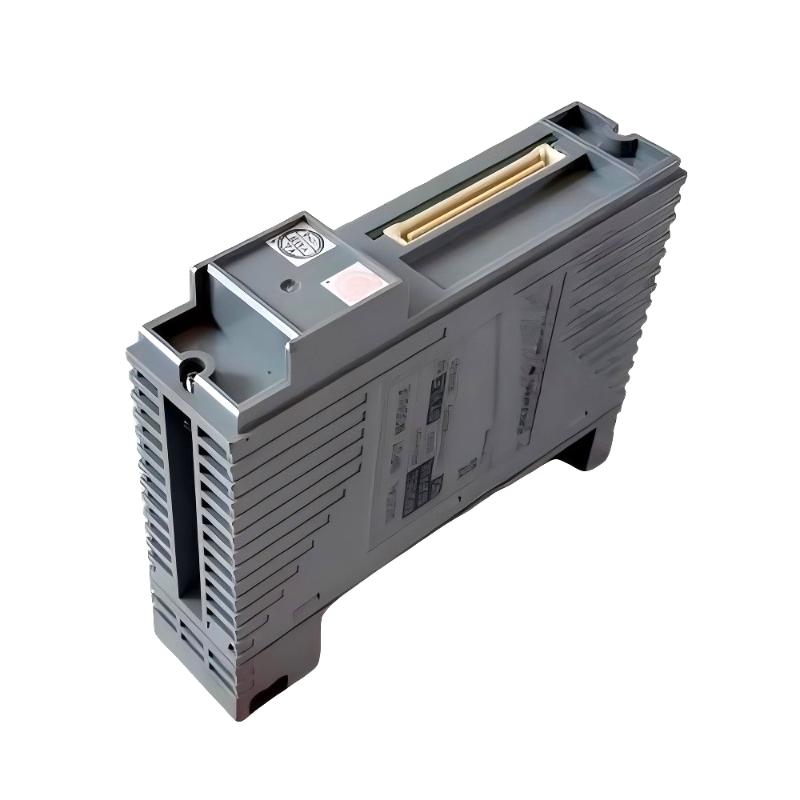

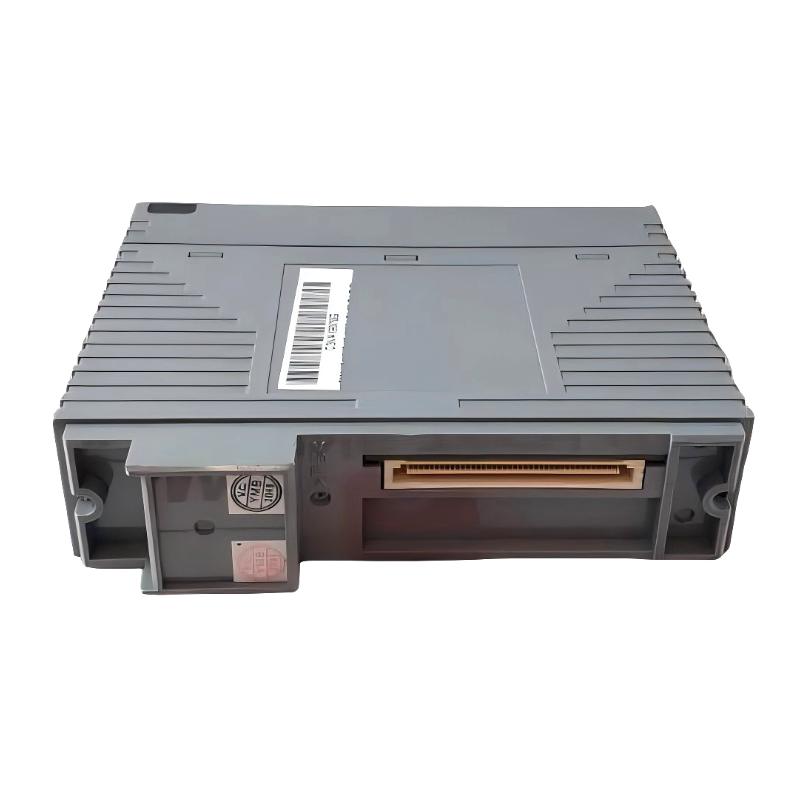

The Yokogawa ADV151-E50/B5S00 Numeric Input Module delivers precise, high-speed acquisition of digital signals in industrial automation environments. Its 32-channel capacity, robust design, and seamless DCS/SCADA integration make it ideal for engineers seeking reliability and performance in process monitoring and control.

Technical Specifications

Feature	Specification
Input Type	Numeric / Discrete Input
Channels	32
Response Time	<10 ms
Isolation	Channel-to-channel isolation
Operating Temperature	−10°C to 55°C
Dimensions	107.5 × 130 × 32.8 mm
Weight	0.3 kg
Mounting	DIN Rail / Rack Mount

Recommended Related Models

Yokogawa ADV152-E50/B5S01 – 64-Channel Numeric Input Module
Yokogawa ADV153-E50/B5S02 – Compact 16-Channel Digital Input Module
Yokogawa ADV154-E50/B5S03 – High-Speed 48-Channel Input Module
Yokogawa ADV155-E50/B5S04 – High-Resolution 32-Channel Input Module

Popular Related Models

Yokogawa ADV150-E50/B5S05 – Standard 16-Channel Digital Input Module
Yokogawa ADV156-E50/B5S06 – High-Density 64-Channel Input Module
Yokogawa ADV157-E50/B5S07 – Multi-Channel Numeric Input Module
Yokogawa ADV158-E50/B5S08 – Compact High-Speed 48-Channel Input Module

Applications

High-speed numeric signal acquisition in industrial automation systems
Monitoring discrete inputs from sensors, switches, and control devices
Integration with SCADA (Supervisory Control and Data Acquisition) platforms
Real-time process monitoring in DCS (Distributed Control Systems)
Data collection for production line automation and safety systems

Advantages

Reliable Digital Input: Fast and accurate acquisition of numeric signals
32-Channel Support: Handles multiple discrete inputs efficiently
Rugged Industrial Design: Suitable for harsh industrial environments
Seamless Integration: Compatible with Yokogawa DCS and other automation systems
Compact and Space-Saving: Easy to install in tight control panels

Technical FAQs

What types of signals are supported?
Digital discrete signals from sensors, switches, and relays.
How many input channels does this module provide?
Supports 32 discrete input channels.
Is there electrical isolation between channels?
Yes, each channel is isolated to prevent interference.
Can it handle high-speed inputs?
Yes, response time is designed under 10 ms for real-time control.
Is the module compatible with redundant systems?
Yes, it can be integrated into redundant I/O setups.
How is configuration performed?
Configuration is done via Yokogawa DCS engineering software.
Does it provide diagnostic information?
Yes, diagnostic feedback is accessible remotely through DCS or field networks.
Is calibration required?
No, standard digital inputs do not require calibration.
What is the operating temperature range?
−10°C to 55°C for standard industrial environments.
Is it compatible with other Yokogawa modules?
Fully compatible with Yokogawa analog and digital I/O modules.
