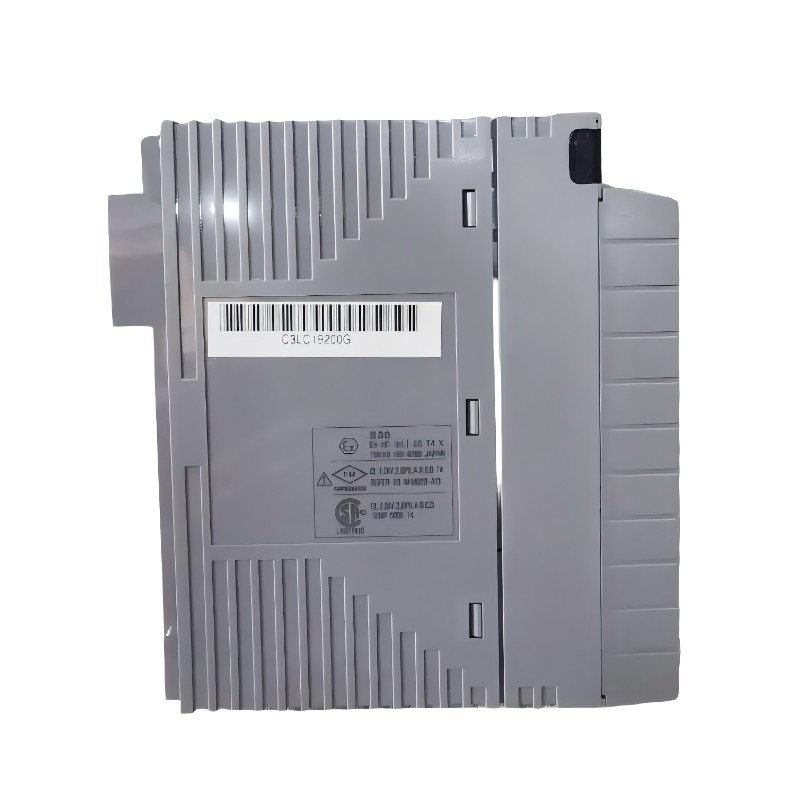

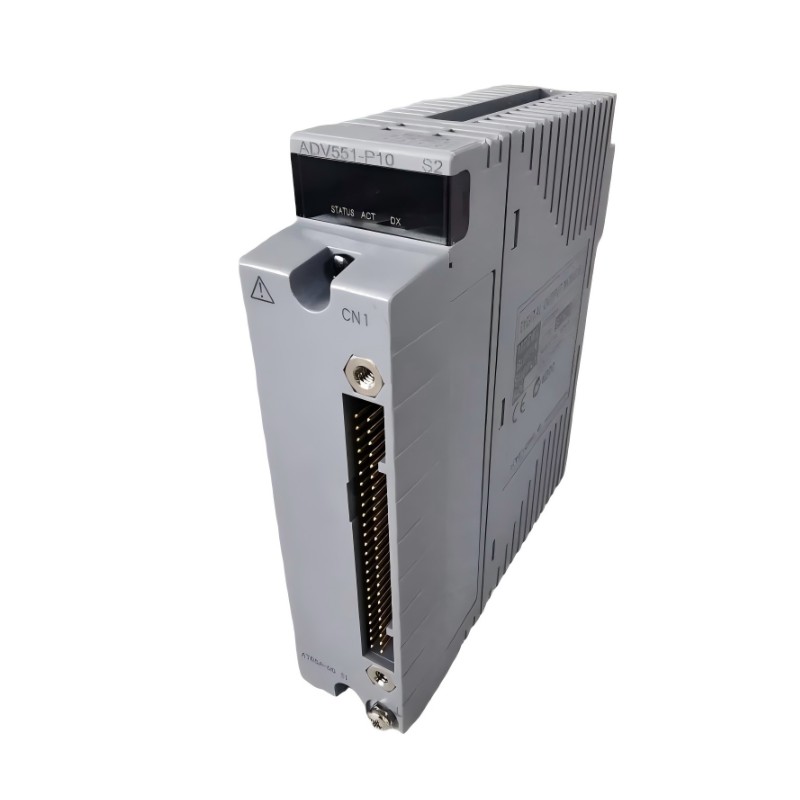

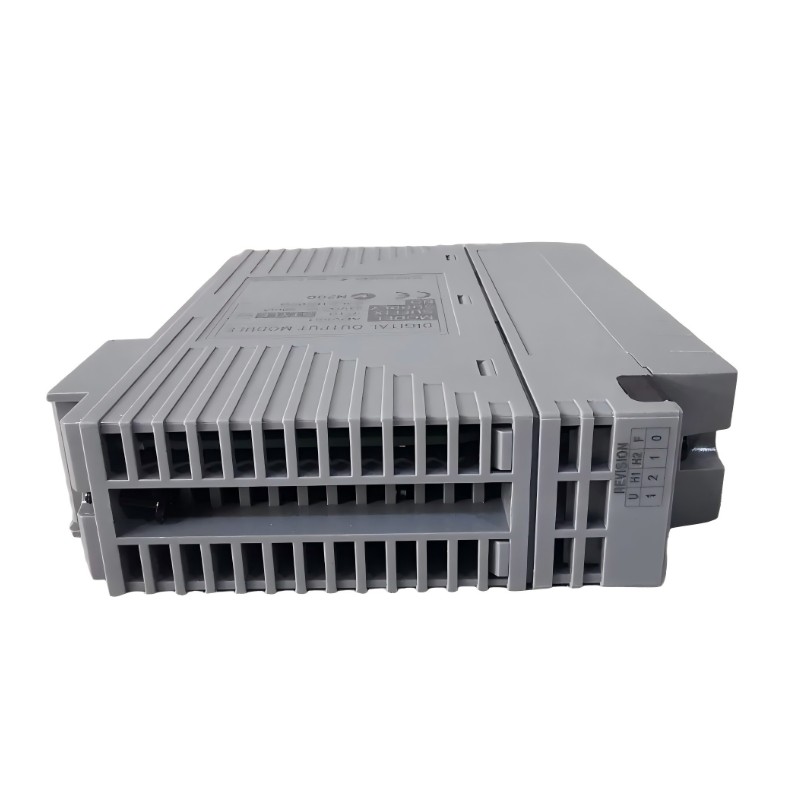

Yokogawa ADV551-P10 S2 Digital Output Module

Applications

• Controlling discrete output devices such as relays, actuators, and indicators

• Integration with SCADA (Supervisory Control and Data Acquisition) platforms

• Real-time process control in DCS (Distributed Control Systems)

• Automation of production lines requiring digital output signals

• Safety and alarm signaling in industrial environments

Advantages

• High-Speed Digital Output: Provides fast and reliable switching of output channels

• 32-Channel Support: Handles multiple outputs efficiently

• Durable Industrial Design: Built for long-term reliability in harsh environments

• Easy Integration: Seamless compatibility with Yokogawa DCS and other control systems

• Compact Form Factor: Space-saving design for simplified installation

Technical FAQs

1. What type of signals does this module provide?
   Discrete digital output signals for actuators, relays, and indicators.

2. How many output channels are supported?
   Supports up to 32 discrete output channels.

3. Is there electrical isolation between channels?
   Yes, each channel is electrically isolated to prevent interference.

4. What is the typical response time?
   Less than 10 ms for real-time process control.

5. Can it be used in redundant systems?
   Yes, compatible with redundant I/O configurations.

6. How is the module configured?
   Configuration is done through Yokogawa DCS engineering software.

7. Does it provide diagnostic information?
   Yes, diagnostic data is accessible via DCS or field networks.

8. Is calibration required?
   No calibration is needed for standard digital outputs.

9. What is the operating temperature range?
   −10°C to 55°C, suitable for industrial environments.

10. Is it compatible with other Yokogawa modules?
    Fully compatible with Yokogawa analog and digital I/O modules.
