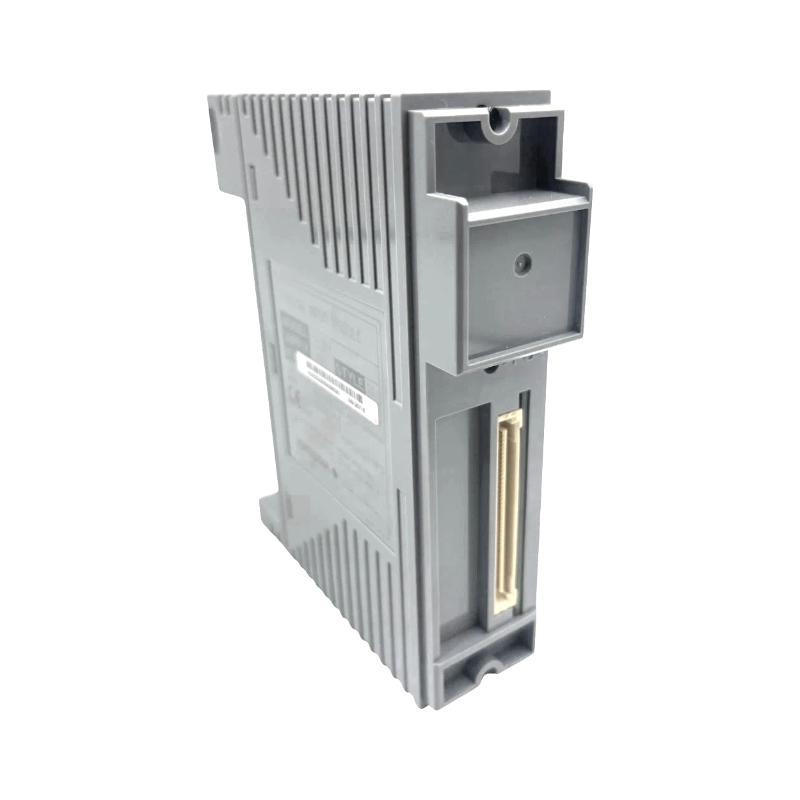

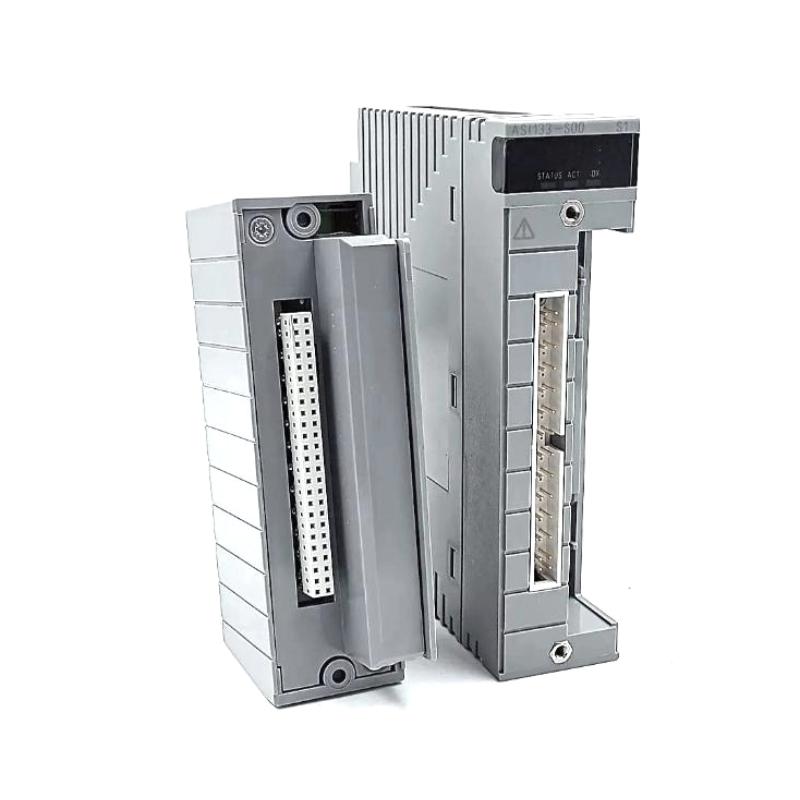

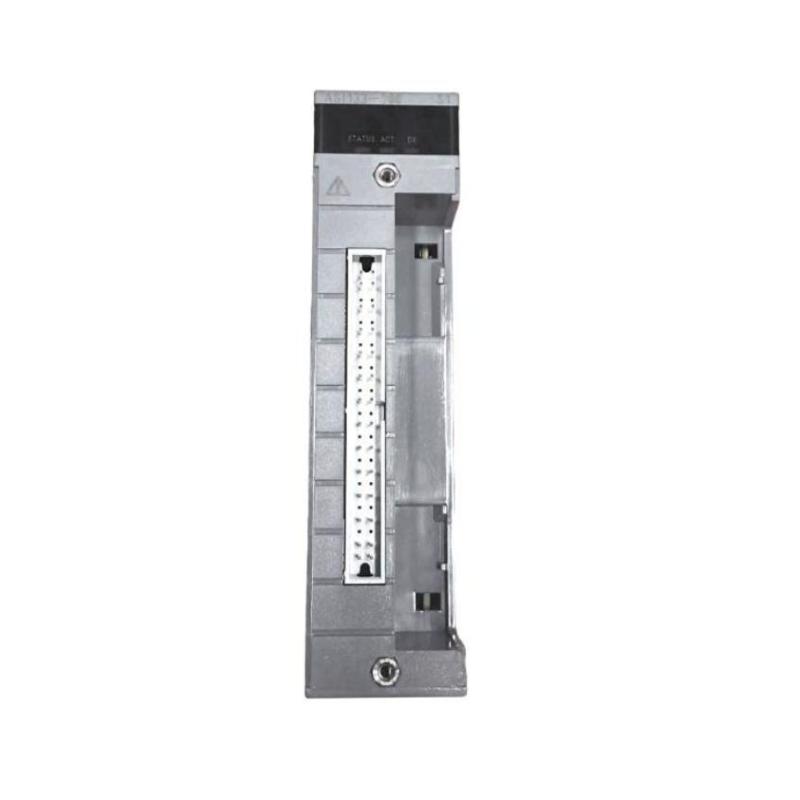

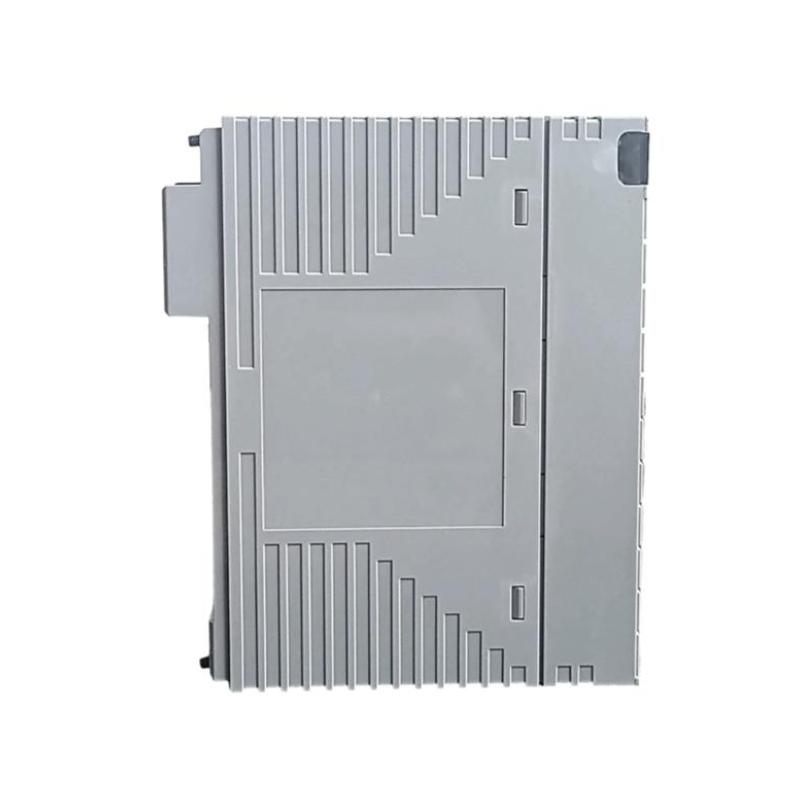

Yokogawa ASI133-H00/SA3S0 Analog Input Module

Applications

• Precise analog signal acquisition from sensors in process automation

• Monitoring temperature, pressure, flow, and other critical process variables

• Integration with SCADA (Supervisory Control and Data Acquisition) systems

• Real-time data acquisition in DCS (Distributed Control Systems)

• Continuous process control in chemical, petrochemical, and pharmaceutical plants

Advantages

• High Accuracy and Stability: Ensures precise analog signal measurement

• Versatile Input Types: Supports multiple voltage and current ranges

• Robust Industrial Design: Built for reliable operation in harsh plant environments

• Seamless DCS Compatibility: Integrates easily with Yokogawa CENTUM and other major platforms

• Compact Form Factor: Simplifies installation in tight control cabinets

Technical FAQs

1. What types of signals are supported?
   Voltage (0–10V) and current (4–20mA) analog signals.

2. How many input channels are available?
   Module supports multiple analog input channels (configurable per system).

3. Is there isolation between channels?
   Yes, each input channel is electrically isolated to prevent interference.

4. Can it handle high-speed sampling?
   Yes, suitable for process control loops with fast sampling requirements.

5. Is it compatible with redundant systems?
   Yes, can be integrated into redundant I/O configurations.

6. How is configuration performed?
   Via Yokogawa DCS engineering software with intuitive parameter settings.

7. Does it provide diagnostic information?
   Yes, remote diagnostics are accessible through the control system.

8. Is calibration required?
   Minimal calibration is needed; factory-calibrated for standard ranges.

9. What is the operating temperature range?
   −10°C to 55°C, suitable for industrial environments.

10. Is it compatible with other Yokogawa modules?
    Fully compatible with other Yokogawa analog and digital I/O modules.
