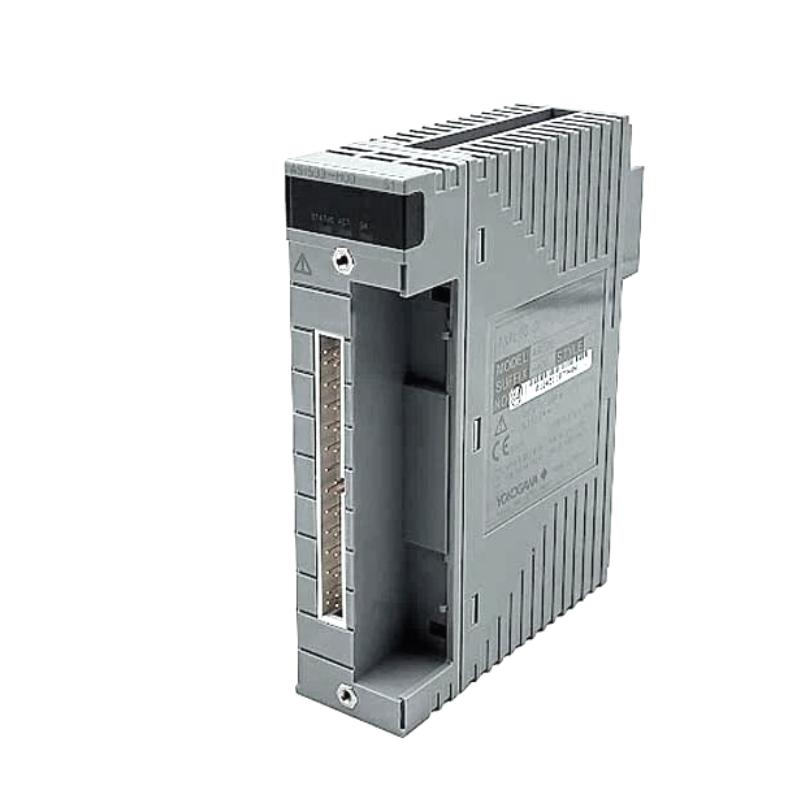

Yokogawa ASI533-S00/SS3S0 Analog Input Module

Applications

• Precise acquisition of analog signals from sensors in industrial automation

• Monitoring critical process variables such as temperature, pressure, and flow

• Integration with SCADA (Supervisory Control and Data Acquisition) systems

• Real-time process monitoring within DCS (Distributed Control Systems)

• Continuous process control in chemical, petrochemical, and pharmaceutical industries

Advantages

• High Accuracy and Stability: Ensures reliable measurement of analog signals

• Flexible Input Support: Handles multiple voltage and current input ranges

• Rugged Industrial Design: Built to operate reliably in harsh plant conditions

• Seamless DCS Compatibility: Integrates smoothly with Yokogawa CENTUM and other major platforms

• Compact and Space-Saving: Simplifies installation in control panels

Technical FAQs

1. What types of signals are supported?
   Voltage (0–10V) and current (4–20mA) analog signals.

2. How many input channels does this module provide?
   Multiple analog input channels (configurable depending on system).

3. Is there isolation between input channels?
   Yes, each channel is electrically isolated to prevent interference.

4. Can it handle high-speed sampling?
   Yes, suitable for process control loops requiring fast signal acquisition.

5. Is it compatible with redundant systems?
   Yes, it can be integrated into redundant I/O setups.

6. How is configuration performed?
   Via Yokogawa DCS engineering software with simple parameter settings.

7. Does it provide diagnostic information?
   Yes, remote diagnostics are accessible through the control system.

8. Is calibration required?
   Minimal calibration; factory-calibrated for standard input ranges.

9. What is the operating temperature range?
   −10°C to 55°C for typical industrial environments.

10. Is it compatible with other Yokogawa modules?
    Yes, fully compatible with other Yokogawa analog and digital I/O modules.
