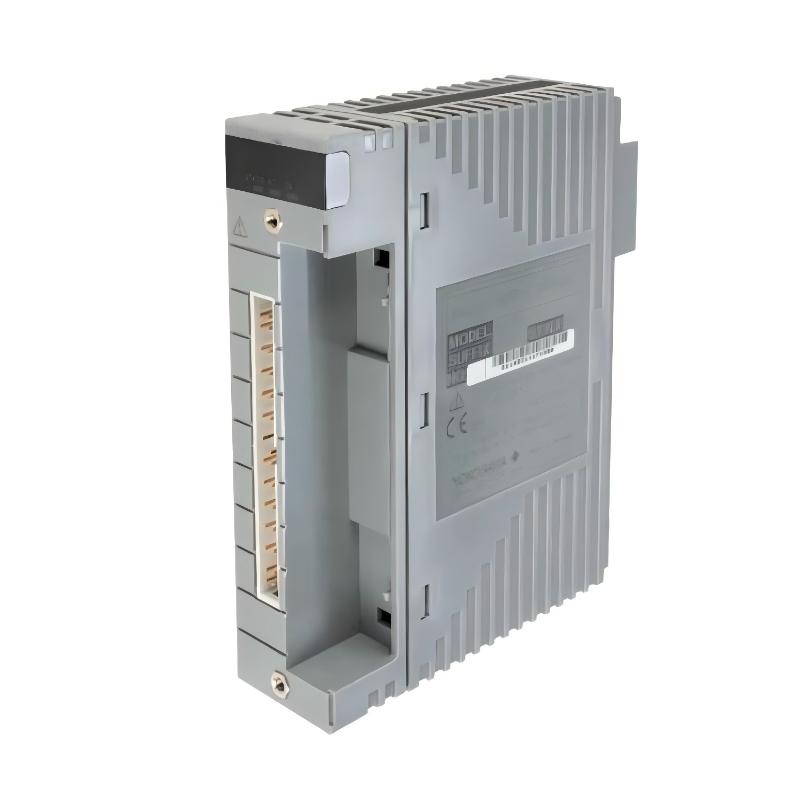

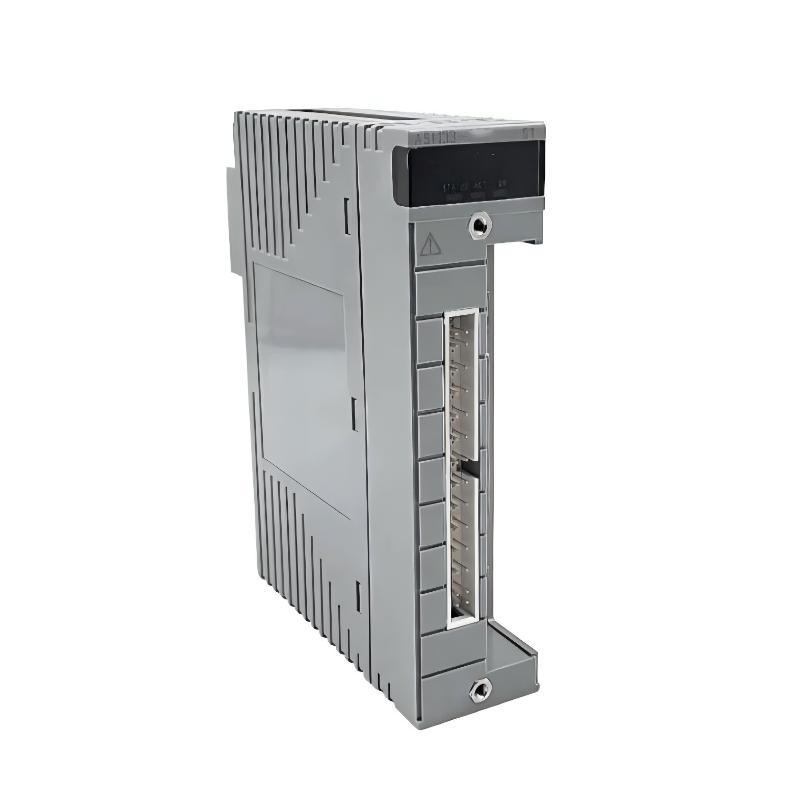

Yokogawa ASI133-S00/SA3S0 Analog Input Module

Applications

Monitoring analog signals in chemical, pharmaceutical, and power plants.

Integration with Yokogawa ADV500 series controllers for real-time data acquisition.

Temperature, pressure, and flow measurement in distributed control systems.

Signal conditioning for precise process automation.

Redundant and fault-tolerant analog input systems.

Industrial process diagnostics and early warning systems.

Key Advantages

High Accuracy: Provides precise analog input measurements with minimal error.

Wide Compatibility: Supports multiple sensor types including 4–20 mA, voltage, and resistance.

Rapid Sampling: Ensures fast and reliable data acquisition for real-time control.

Robust Design: Industrial-grade construction ensures stable operation in harsh environments.

Compact Size: Occupies minimal space in control racks.

Scalable: Can be combined with other modules for complex system expansion.

Technical FAQs

1. What types of analog signals can this module read?
It can read current (4–20 mA), voltage (0–10 V), and resistance signals.

2. What is the sampling rate per channel?
The module supports a typical sampling rate of up to 100 ms per channel.

3. Can it be used in redundant systems?
Yes, it supports integration into redundant DCS configurations.

4. How does it handle signal noise?
It features internal filtering and isolation to reduce interference and maintain signal integrity.

5. What is the maximum number of input channels?
This module supports 8 analog input channels.

6. Can sensors be hot-swapped?
Sensors must be disconnected safely; the module itself supports hot replacement in some DCS setups.

7. Is diagnostic feedback available?
Yes, it provides real-time status monitoring and error detection.

8. What is the operating temperature range?
The module operates reliably between -10°C and 55°C.

9. What is the typical power consumption?
Approximately 3 W under standard operation.

10. How is calibration performed?
Calibration is performed through the DCS interface using standard system tools.
