Introduction

The Yokogawa NFDV557-S00 S2 Digital Output Module is engineered to deliver dependable and high-performance digital output control in modern industrial environments. With its robust architecture and seamless integration capabilities, it ensures stable signal transmission, reduced downtime, and enhanced operational safety. This module is an ideal solution for industries that demand precision, reliability, and scalable automation infrastructure.

Technical Specifications

Parameter	Specification
Module Type	Digital Output Module
Model	NFDV557-S00 S2
Number of Channels	16
Output Type	Digital (Relay/Transistor based)
Response Time	Fast switching
Isolation	Channel and system isolation
Operating Voltage	24 VDC nominal
Protection Features	Overload and noise protection
Operating Temperature	-10°C to 55°C
Dimensions	32.8 × 130.9 × 130 mm
Weight	0.3 kg

Recommended Related Models

NFDV558-S00 S2 – Yokogawa NFDV558 High-Capacity Digital Output Module.

NFDV556-S00 S2 – Yokogawa NFDV556 Standard Digital Output Module.

NFDV557-S10 S2 – Yokogawa NFDV557 Enhanced Digital Output Module.

NFDV559-S00 S2 – Yokogawa NFDV559 Redundant Digital Output Module.

Popular Related Models

NFDV560-S00 S2 – Yokogawa NFDV560 Industrial Digital Output Module.

NFDV561-S00 S2 – Yokogawa NFDV561 High-Speed Digital Output Module.

NFDV562-S00 S2 – Yokogawa NFDV562 Advanced Diagnostic Output Module.

NFDV563-S00 S2 – Yokogawa NFDV563 Multi-Channel Output Module.

Applications

• Digital signal output control in distributed control systems (DCS).

• Actuation of field devices such as relays, solenoids, and indicators.

• Integration within Yokogawa CENTUM and compatible control platforms.

• High-reliability switching operations in process industries.

• Safety and interlock systems requiring deterministic output behavior.

• Automated production lines with synchronized output requirements.

Key Advantages

• Stable Output Performance: Ensures consistent digital signal delivery under continuous operation.

• High Channel Reliability: Designed for precise control of multiple output points simultaneously.

• Fast Switching Capability: Supports rapid signal transitions for real-time control processes.

• Strong System Compatibility: Fully aligned with Yokogawa system architectures.

• Enhanced Protection: Built-in safeguards against overload and signal disturbances.

• Efficient Space Utilization: Compact form factor simplifies cabinet layout planning.

Technical FAQs

1. What type of outputs does this module provide?
It provides digital output signals suitable for controlling relays, actuators, and field devices.

2. How many output channels are supported?
The module typically supports 16 digital output channels.

3. What is the switching response time?
It delivers fast response times suitable for real-time industrial control applications.

4. Can it operate in redundant control systems?
Yes, it is designed to support redundant DCS configurations for improved system reliability.

5. How is signal integrity maintained?
Through internal isolation and noise suppression mechanisms that reduce interference.

6. Is diagnostic functionality available?
Yes, it provides output status monitoring and fault detection capabilities.

7. What is the typical load capacity per channel?
Each channel is designed to handle standard industrial load requirements for digital outputs.

8. Can the module be replaced without system shutdown?
Yes, it supports hot-swapping in compatible Yokogawa systems.

9. What type of wiring interface is used?
It uses standard industrial terminal connections for secure and stable wiring.

10. How is configuration managed?
Configuration is handled through the Yokogawa control system interface.

Look forward to your comments!Comment

Latest comments

Tags:	NFDV557-S00 S2

Yokogawa Electric

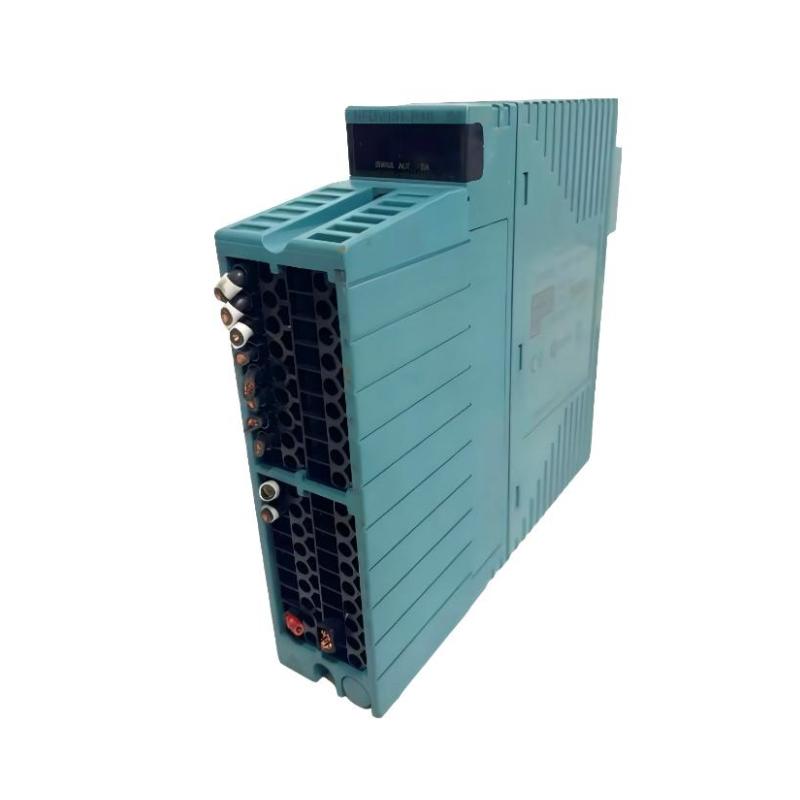

Yokogawa NFDV557-S00 S2 Digital Output Module
