Introduction

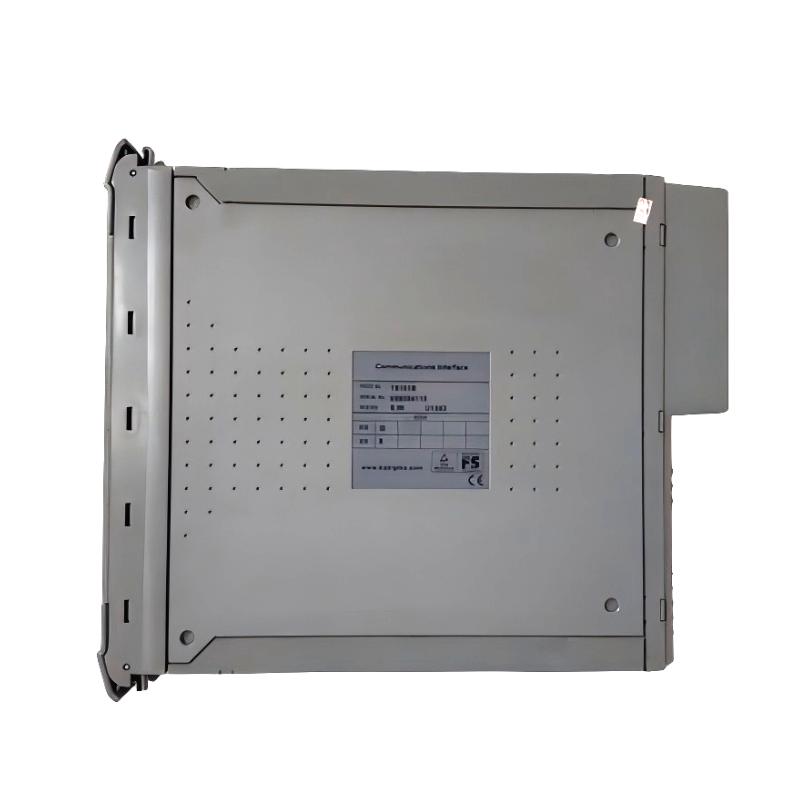

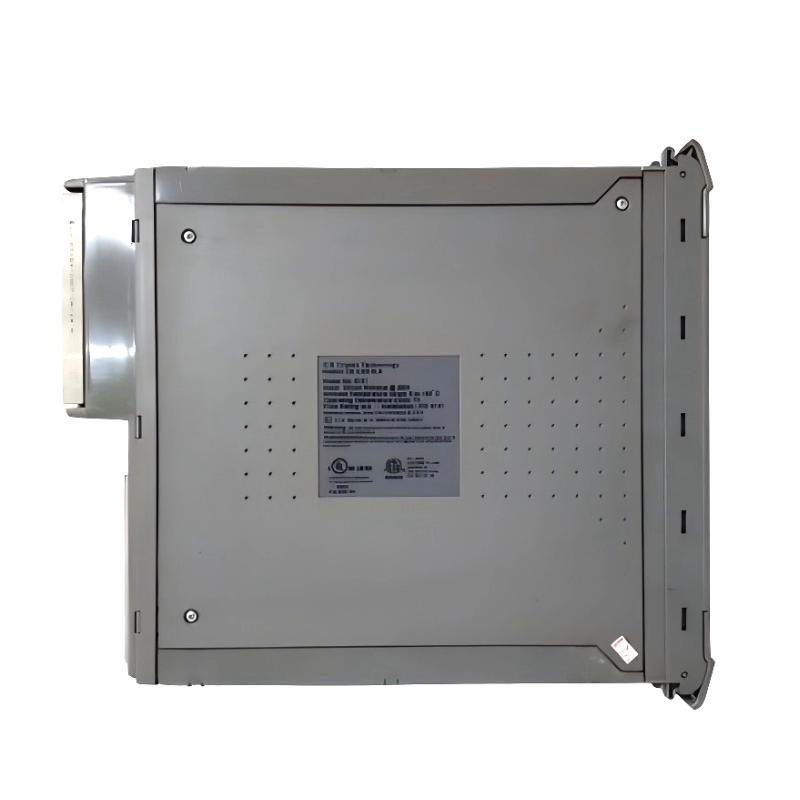

The ICS Triplex T8151B Communication Interface Module is a high-performance network interface module designed for the Triplex T8100/T8110 safety and process control systems. It facilitates seamless communication between processor modules and field devices, providing reliable data exchange and network connectivity in safety-critical environments.
Built for industrial-grade reliability, the T8151B ensures deterministic performance, fault-tolerant operations, and easy integration with redundant systems. Its slim profile allows flexible installation in densely populated controller chassis without sacrificing airflow or maintainability. This module is ideal for nuclear, chemical, petrochemical, and power generation facilities that demand high availability and secure communications.
Technical Specifications
|
Parameter |
Details |
|
Module Type |
Communication Interface Module |
|
Compatible Systems |
ICS Triplex T8100 / T8110 series |
|
Function |
Connects processors to field networks and I/O modules |
|
Communication Standards |
Triplex internal bus, Ethernet, optional field interfaces |
|
Diagnostics |
LED indicators, status monitoring, fault reporting |
|
Power Requirement |
24 VDC typical from chassis backplane |
|
Isolation |
Electrical isolation between processor and network interfaces |
|
Mounting |
Triplex controller chassis |
|
Operating Temperature |
0°C to +55°C |
|
Storage Temperature |
–40°C to +70°C |
|
Dimensions (H × W × D) |
266 × 31 × 303 mm |
|
Weight |
1.13 kg |
|
Safety Compliance |
Meets industrial safety and electrical standards for Triplex systems |
Recommended Related Models
|
Model |
Description |
|
T8110B Processor Module |
Core CPU module for Triplex systems |
|
T8100 Chassis |
Housing for processor and I/O modules |
|
T8100 I/O Modules |
Digital and analog input/output modules |
|
T8100 Power Supply Module |
Redundant DC power for processor and communication modules |
|
T8123 Processor Interface Adapter |
Interfaces CPU with I/O modules |
|
T8191 Safety Module |
Advanced safety-focused I/O module |
|
T8100 Expansion Bays |
Additional slots for future upgrades |
|
T8100 Terminal Block Kit |
Organized field wiring connections |
|
T8153 CPU Module |
High-performance CPU variant for larger systems |
|
T8100 Diagnostic Module |
System health and status monitoring |
Popular ICS Triplex Models
|
Model |
Use Case |
|
T8100 Chassis |
Modular housing for Triplex controllers |
|
T8110B Processor |
Standard CPU for fault-tolerant systems |
|
T8153 CPU Module |
High-performance processor |
|
T8191 Safety I/O Module |
Advanced safety input/output module |
|
T8100 I/O Module |
Digital and analog signal processing |
|
T8100 Power Supply |
Redundant DC power distribution |
|
T8100 Comm Module |
Network and field communication interface |
|
T8100 Terminal Block |
Organized wiring for field devices |
|
T8100 Redundant Processor |
Backup CPU for fault-tolerant operation |
|
T8100 Expansion Module |
Additional slots for I/O or communication |
