Brand:Yokogawa Electric Item No.:SDV144-S53 S4 Product Origin:Japan Product Dimensions:130 x 32.8 x 107.5 mm Product Weight:0.36 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

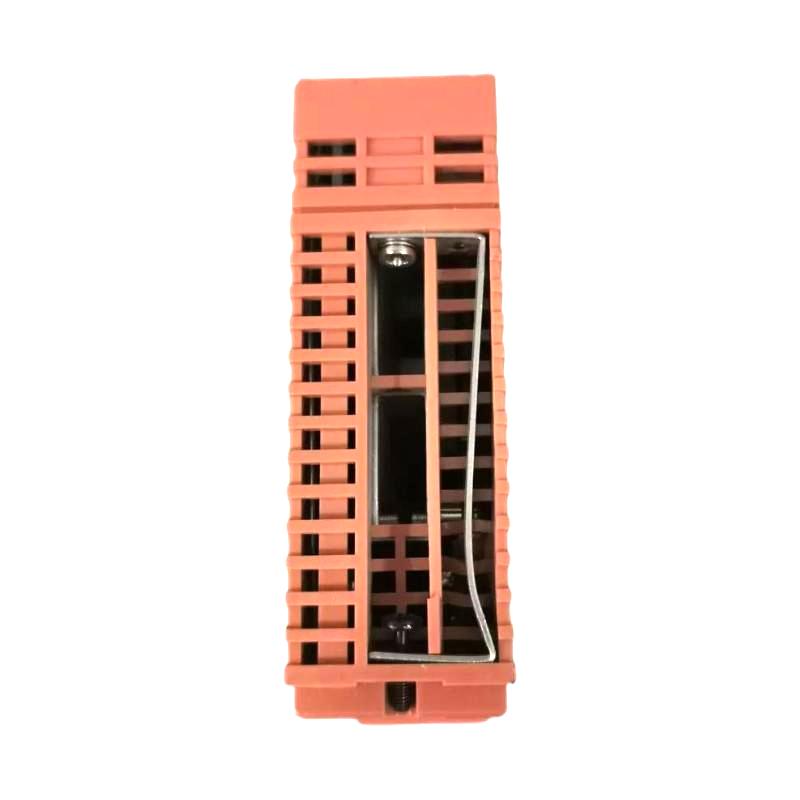

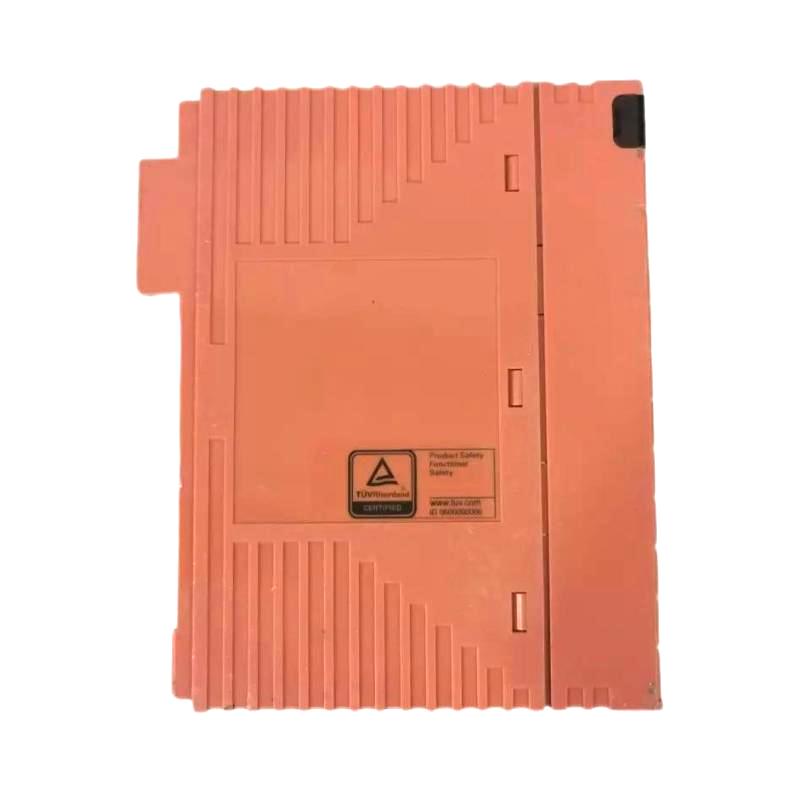

The Yokogawa SDV144-S53 S4 Numeric Input Module delivers precise and reliable acquisition of pulse and frequency signals. It is engineered for high-performance industrial environments requiring accurate numeric data processing.
Technical Specifications
Specification
Details
Module Type
Numeric Input Module
Input Type
Pulse / Frequency / Digital
Channels
Multi-channel numeric input
Function
High-speed counting and signal processing
Isolation
Electrical isolation included
Operating Temperature
-10°C to 55°C
Storage Temperature
-20°C to 70°C
Dimensions
130 mm × 32.8 mm × 107.5 mm
Weight
0.36 kg
Recommended Related Models
Model
Description
SDV144-S13
Numeric input module within the same SDV144 series.
SDV144-S33
Variant with different configuration for signal handling.
SDV145-S53
Extended numeric input module for higher channel flexibility.
SDV147-S53
Advanced module for complex numeric signal processing.
Popular Related Models
Model
Description
SDV144-S54
Updated version with improved performance characteristics.
SDV144-S63
Variant optimized for enhanced signal stability.
SDV145-S63
High-performance numeric input module for demanding applications.
SDV146-S53
Widely used module for general industrial signal acquisition.
Applications
• Pulse and frequency signal acquisition in industrial automation systems.
• Monitoring of digital sensors and encoders in manufacturing lines.
• Integration with distributed control systems for event counting and status tracking.
• Data collection in power, water treatment, and process industries.
• High-speed numeric signal processing in complex control environments.
Key Advantages
• High-speed numeric input processing for accurate signal capture.
• Stable operation in electrically noisy industrial environments.
• Seamless compatibility with Yokogawa control system platforms.
• Compact structure for efficient panel installation.
• Reliable long-term performance with minimal maintenance.
Technical FAQs
1. What is the primary function of the SDV144-S53 S4 module?
It is designed to receive and process numeric signals such as pulses and frequency inputs from field devices.
2. What types of signals can this module handle?
It supports pulse, frequency, and digital input signals commonly used in industrial automation.
3. Is the module suitable for high-speed counting applications?
Yes, it is optimized for high-speed pulse counting and frequency measurement tasks.
4. How many input channels are available?
The module supports multiple numeric input channels for flexible system configurations.
5. Does it include electrical isolation?
Yes, isolation is provided to ensure signal integrity and protect connected systems.
6. Can it be integrated with Yokogawa DCS systems?
Yes, it is fully compatible with Yokogawa distributed control systems.
7. What diagnostic features are included?
LED indicators and built-in diagnostics provide real-time status and fault monitoring.
8. Can it process encoder signals?
Yes, it is capable of handling encoder and other high-frequency input signals.
9. Is it suitable for continuous industrial operation?
Yes, it is designed for reliable 24/7 operation in industrial environments.
10. Does it support firmware updates?
Yes, firmware updates can be performed using Yokogawa maintenance tools.
