Brand:Yokogawa Electric Item No.:AER4D-00 Product Origin:Japan Product Dimensions:482.6 x 88.1 x 85 mm Product Weight:1.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

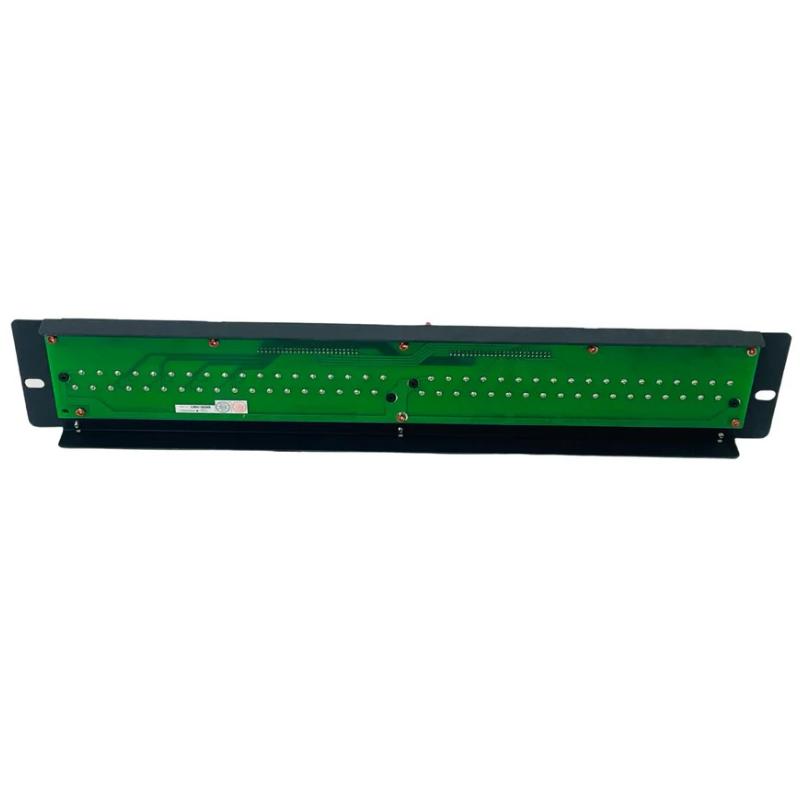

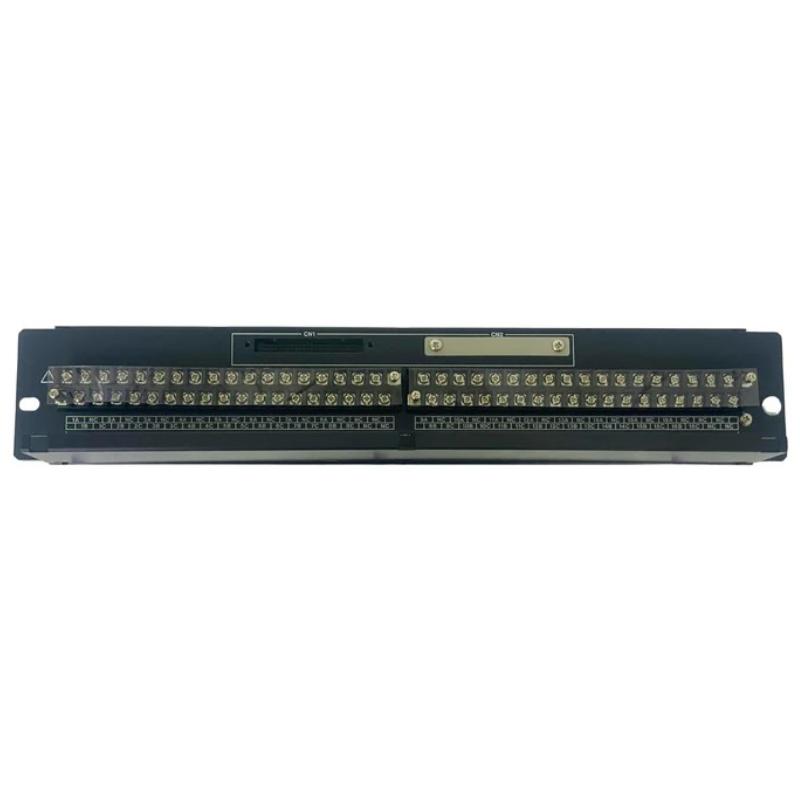

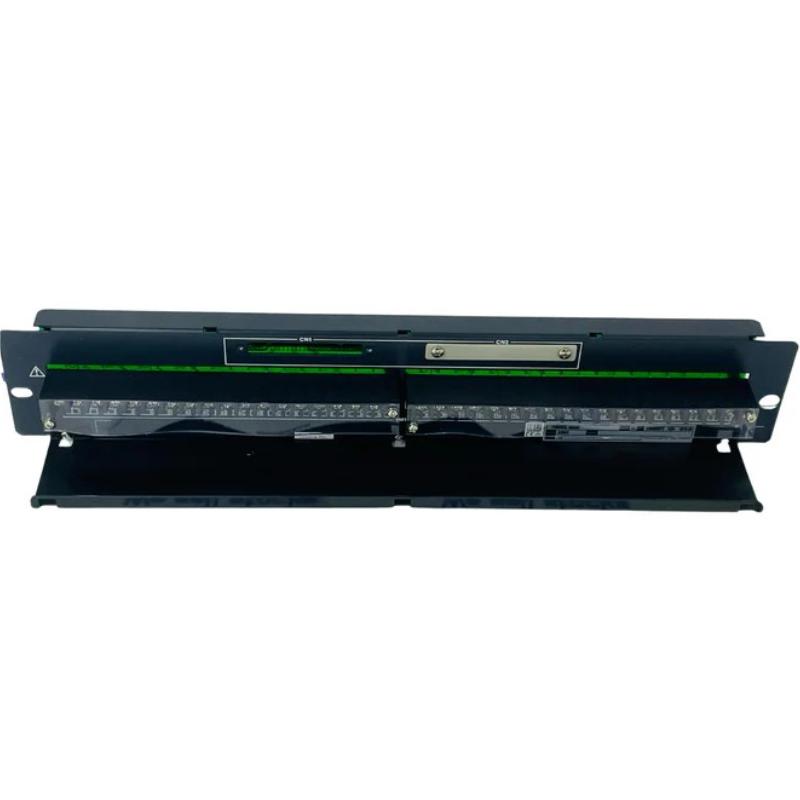

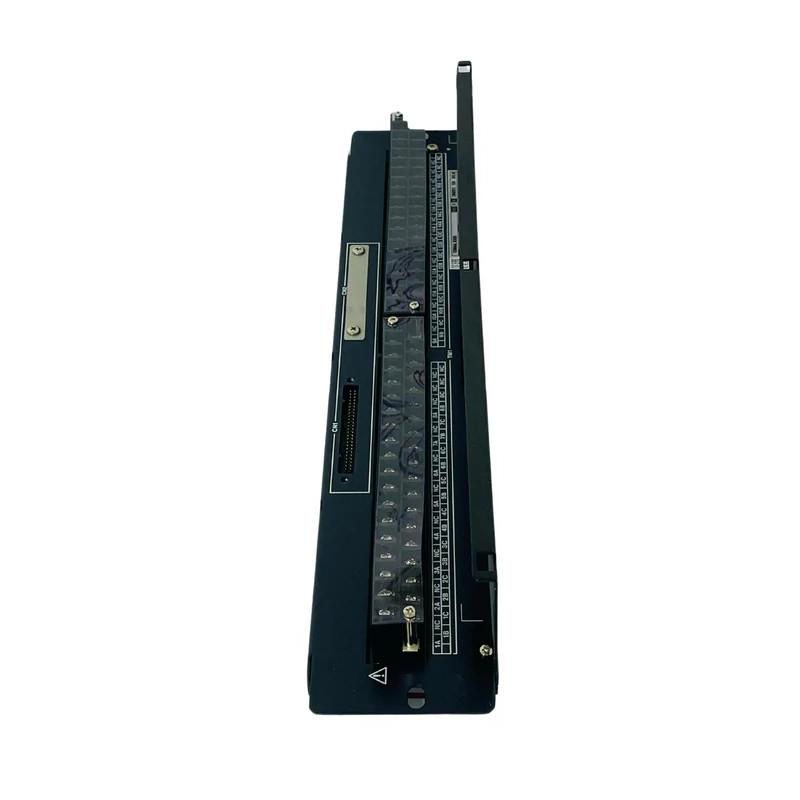

The Yokogawa AER4D-00 Terminal Board provides a reliable and organized interface for connecting I/O modules to control systems. Its durable design ensures stable operation in harsh industrial environments, while supporting system upgrades, expansions, and easier maintenance.
Technical Specifications
Parameter
Specification
Model
AER4D-00
Product Type
Terminal Board
Dimensions
482.6 × 88.1 × 85 mm
Weight
1.5 kg
Compatible Series
ADM / ADV Series
Suggested Alternatives
Model
Product Name
Yokogawa AER4D-01
Terminal Board
Yokogawa AER4D-02
Terminal Board
Yokogawa AER4D-03
Terminal Board
Yokogawa AER4D-04
Terminal Board
Frequently Selected Together
Model
Product Name
Yokogawa ADM55 Base Unit
ADM55 Chassis for I/O Modules
Yokogawa ADV561 Digital Output Module
ADV561-P50 S2 Digital Output Module
Yokogawa ADM55 Signal Cable
I/O Module Connection Cable
Yokogawa ADV561 Terminal Block
Terminal Block for Digital Outputs
Application Scenarios
• Centralized wiring interface for distributed control systems (DCS).
• Facilitates signal routing between I/O modules and control systems in industrial plants.
• Suitable for chemical, oil & gas, and power generation facilities.
• Replacement or upgrade of existing terminal boards in Yokogawa control systems.
• Supports system expansion and organized wiring in control panels.
Key Advantages
• Provides a secure and organized connection point for multiple signals.
• Robust construction suitable for industrial environments.
• Compact design relative to its capacity allows efficient use of panel space.
• Seamless integration with Yokogawa ADM and ADV series systems.
• Minimal maintenance required with long-term operational reliability.
• Facilitates easier troubleshooting and system modifications.
Technical FAQs
1. What is the primary function of this terminal board?
It serves as a centralized connection point for routing signals between I/O modules and control systems.
2. Is it compatible with all Yokogawa DCS systems?
It is designed for use with ADM and ADV series modules in Yokogawa control systems.
3. Can it operate reliably in industrial conditions?
Yes, it is built to withstand vibration, temperature variations, and industrial environments.
4. How many connections does it support?
It supports multiple input/output connections, depending on system configuration.
5. Which industries commonly use this terminal board?
Chemical, oil & gas, power generation, and general industrial automation sectors.
6. Does it require frequent maintenance?
No, it is designed for minimal maintenance over long-term use.
7. What are the dimensions of the terminal board?
482.6 × 88.1 × 85 mm.
8. Can it be used for retrofits or expansions?
Yes, suitable for upgrading or expanding existing control systems.
9. How durable is the board?
Constructed from industrial-grade materials to ensure long-term durability.
10. Does it facilitate easier system troubleshooting?
Yes, it organizes connections, simplifying maintenance and troubleshooting.
