Brand:Yokogawa Electric Item No.:ASI533-H00 Product Origin:Japan Product Dimensions:107.5 × 130 × 32.8 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

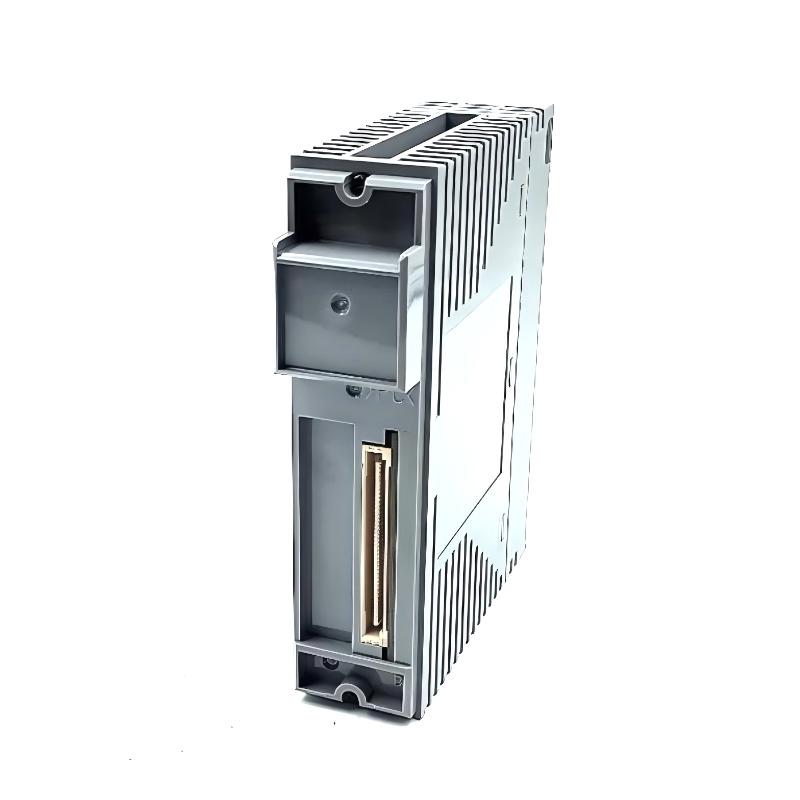

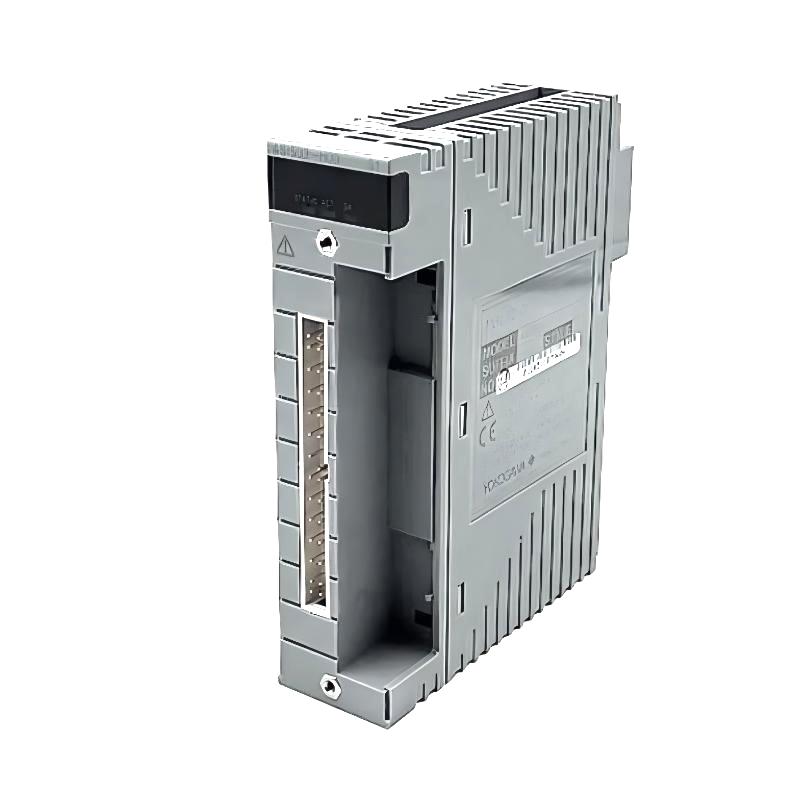

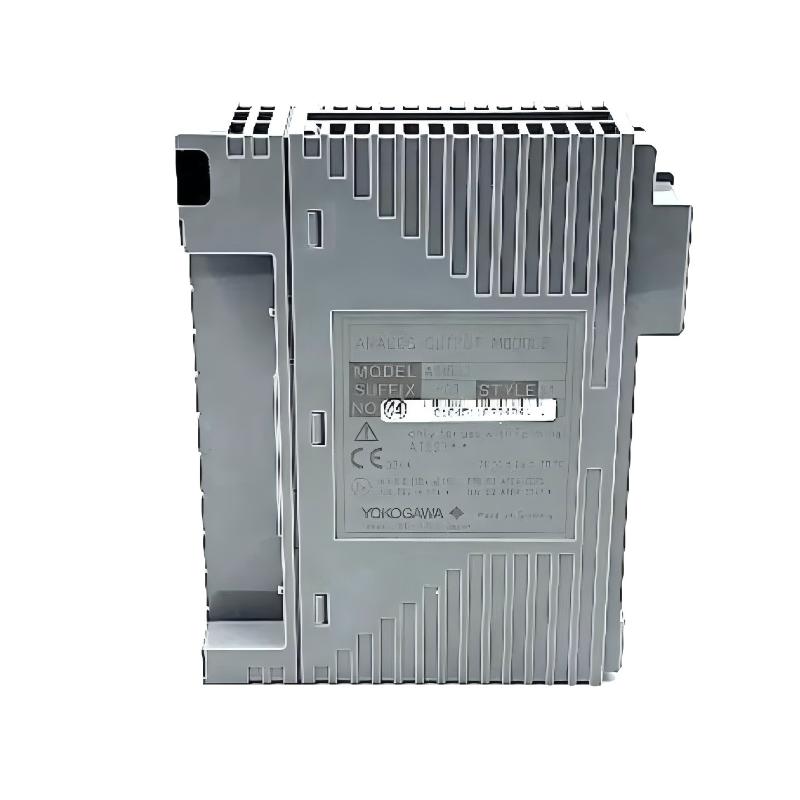

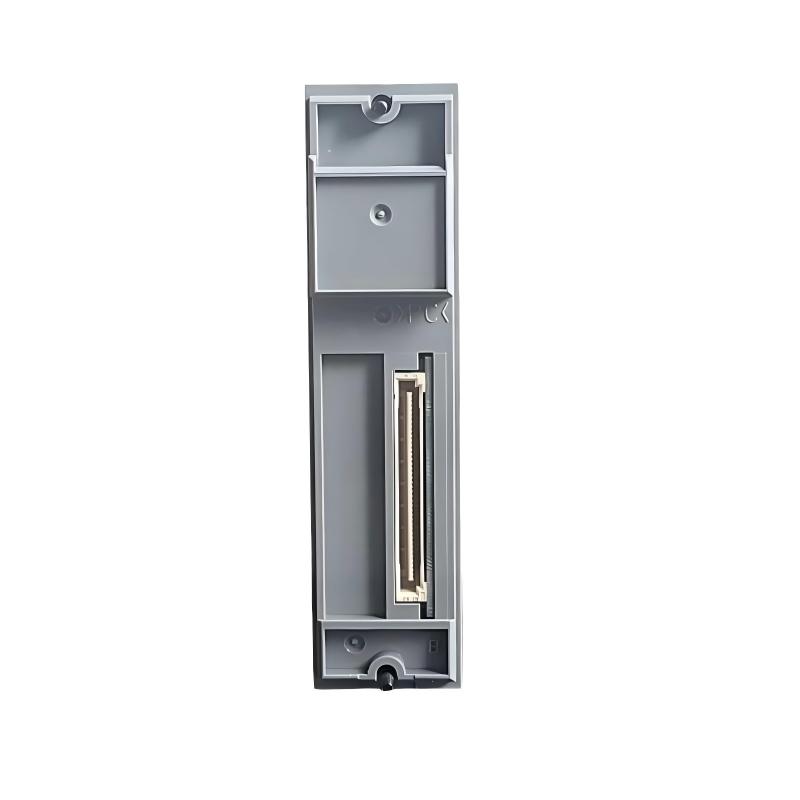

The Yokogawa ASI533-H00 Analog Output Module provides accurate and reliable analog control for industrial automation systems. Designed for ADV/AD/AE series controllers, it ensures precise output to valves, actuators, and other analog devices, supporting real-time process control and system optimization.
Its compact, lightweight, and rugged design makes it suitable for industrial environments, including manufacturing, chemical processing, and power generation.
Technical Specifications
Parameter
Specification
Product Model
ASI533-H00
Manufacturer
Yokogawa
Series
ADV/AD/AE Analog Output Module
Function
Analog Output
Dimensions
107.5 × 130 × 32.8 mm
Weight
0.3 kg
Mounting Type
Rack / Control System
Operating Temperature
0°C to +55°C
Storage Temperature
-20°C to +70°C
Output Signal Type
Analog (Current / Voltage)
Recommended Related Models
Model
Product Name
Yokogawa ASI533-H01
Analog Output Module
Yokogawa ASI533-H02
Analog Output Module
Yokogawa ASI532-H00
Analog Output Module
Yokogawa ASI531-H00
Analog Output Module
Popular Related Models
Model
Product Name
Yokogawa ASI533-H00-01
Analog Output Module
Yokogawa ASI533-H00-02
Analog Output Module
Yokogawa ASI533-H00-03
Analog Output Module
Yokogawa ASI533-H00-04
Analog Output Module
Applications
• Provides precise analog output control in Yokogawa automation and control systems.
• Integration into process control environments for manufacturing, chemical, and power generation plants.
• Replacement or expansion of existing analog output modules in ADV/AD/AE Series systems.
• Real-time control of valves, actuators, and other analog-controlled devices.
• Facilitates system upgrades to enhance automation accuracy and responsiveness.
Key Advantages
• High-precision analog output ensures reliable and accurate control of field devices.
• Compact and lightweight design allows easy installation in control cabinets.
• Robust construction tolerates industrial vibration, temperature variations, and electrical noise.
• Fully compatible with Yokogawa ADV/AD/AE series controllers for seamless integration.
• Supports high-speed response for real-time process control applications.
• Durable design ensures long-term operation in demanding industrial environments.
Technical FAQs
1. What is the main function of the ASI533-H00 module?
It provides analog output signals to control actuators and field devices in a process control system.
2. Can it be used with other Yokogawa modules?
Yes, it is compatible with ADV/AD/AE series controllers and modules.
3. What type of signals does it output?
Standard analog signals such as 4–20 mA or voltage signals, depending on system configuration.
4. How is it installed?
Mounted in a compatible Yokogawa rack or control system chassis.
5. Can it operate in harsh industrial conditions?
Yes, it is designed to withstand vibration, temperature fluctuations, and electrical interference.
6. Is configuration required?
Yes, the module must be configured via the controller to ensure proper analog output behavior.
7. How is signal integrity maintained?
Through high-quality circuitry and secure connections within the system.
8. Can it operate continuously?
Yes, it is designed for 24/7 industrial operation.
9. What are signs of potential issues?
Unexpected output values, communication errors, or alarm signals indicate potential problems.
10. How does it improve system reliability?
By delivering accurate and stable analog output signals, it ensures precise control of field devices and process reliability.
