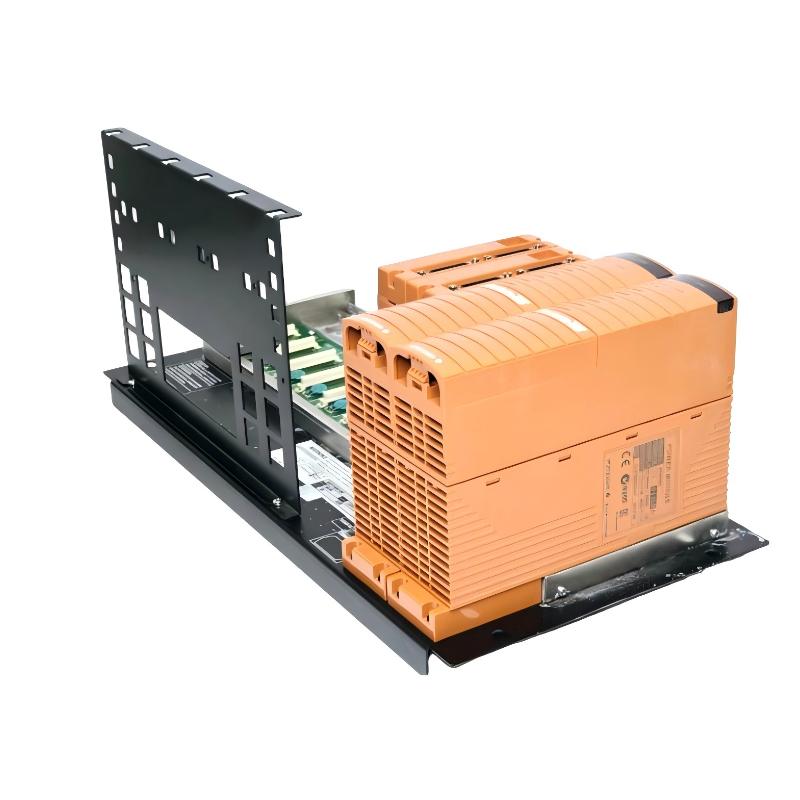

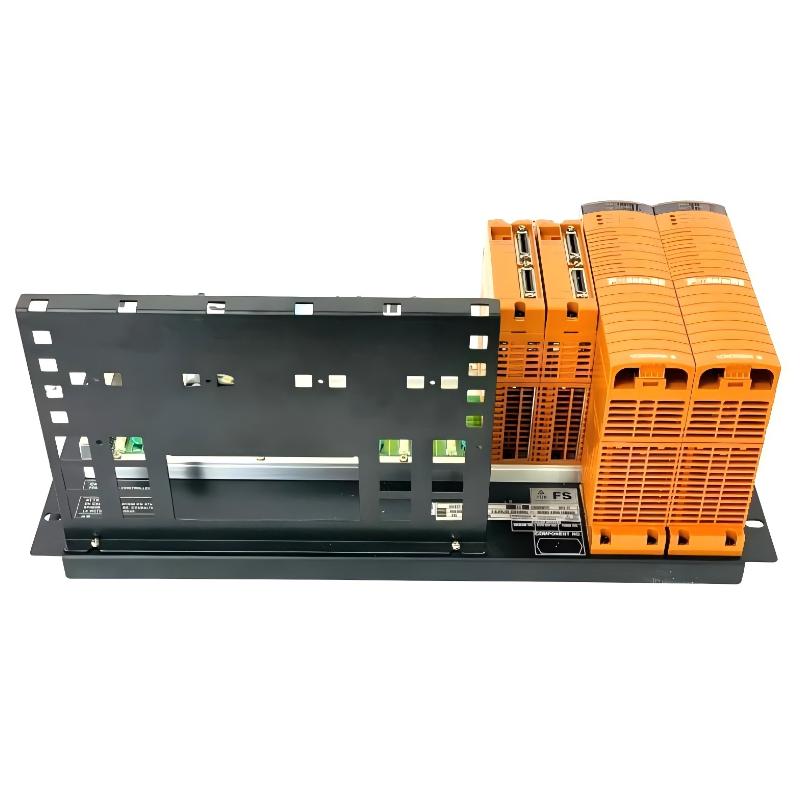

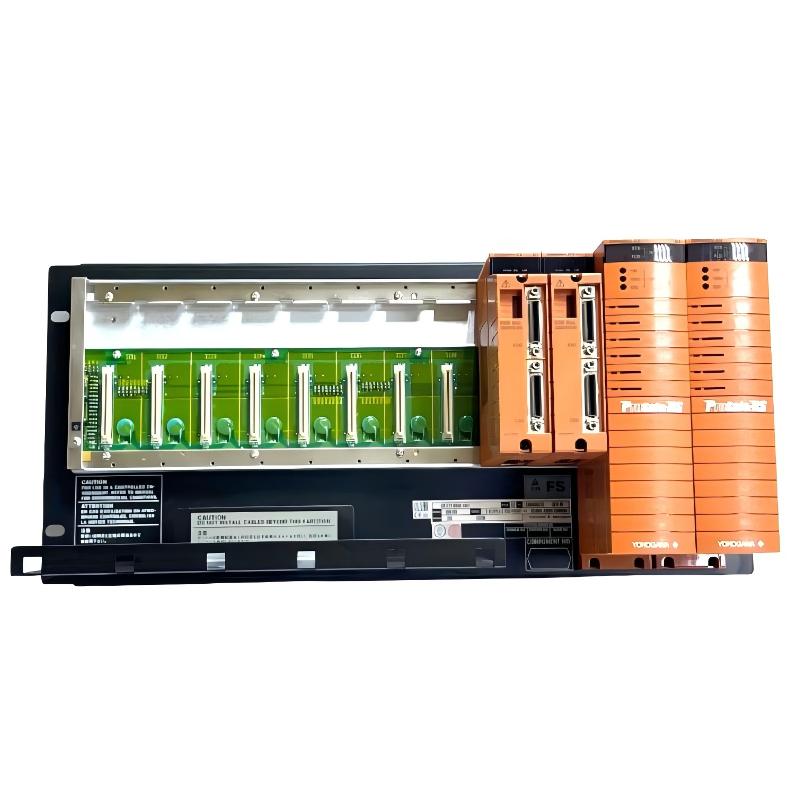

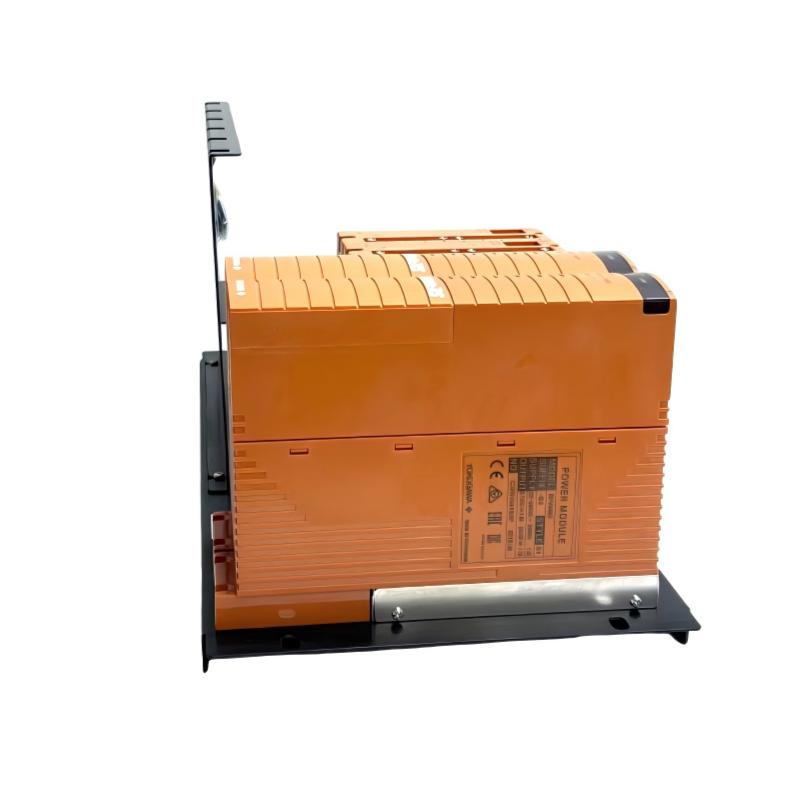

Yokogawa SNB10D-213/CN2N Safety Node Unit

Applications

• Acts as a dedicated safety communication hub in Yokogawa ESB and control networks.

• Monitors and controls safety-related signals from field devices in industrial automation systems.

• Integration into distributed control systems for chemical, power generation, and manufacturing plants.

• Replacement or expansion of safety node units to enhance system safety and compliance.

• Supports real-time safety monitoring and emergency shutdown operations.

Key Advantages

• Ensures reliable and secure communication for safety-critical processes.

• Rugged construction tolerates vibration, temperature variations, and electrical interference.

• Compact design allows efficient installation within control cabinets.

• Fully compatible with Yokogawa ESB and ADV series safety and control modules.

• Supports scalable network architecture, allowing additional safety nodes to be added easily.

• Enhances system reliability and compliance with industrial safety standards.

Technical FAQs

1. What is the main function of the SNB10D-213/CN2N unit?
It acts as a safety node, managing communication of safety-critical signals within the control network.

2. Can it operate with other Yokogawa modules?
Yes, it integrates with ESB and ADV series safety and control modules.

3. What are its physical dimensions?
The unit measures 482.6 × 221.5 × 205 mm.

4. What is the weight of the safety node unit?
The unit weighs 5.9 kg.

5. How is it installed?
Mounted in a control cabinet with proper alignment and connections to the network.

6. Can it operate in harsh industrial environments?
Yes, it is designed to handle vibration, temperature fluctuations, and electrical noise.

7. Does it require configuration?
Yes, safety parameters and network settings must be configured via the system controller.

8. Can additional safety nodes be added?
Yes, the unit supports scalable network expansion for additional safety nodes.

9. What are common signs of safety network issues?
Communication errors, safety alarm triggers, or unresponsive field devices indicate potential problems.

10. How does it improve overall system safety?
By managing and monitoring safety-critical signals, it ensures timely emergency response and compliance with safety standards.
