Brand:Yokogawa Electric Item No.:ATA4D-00 Product Origin:Japan Product Dimensions:114 x 65.6 x 72 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

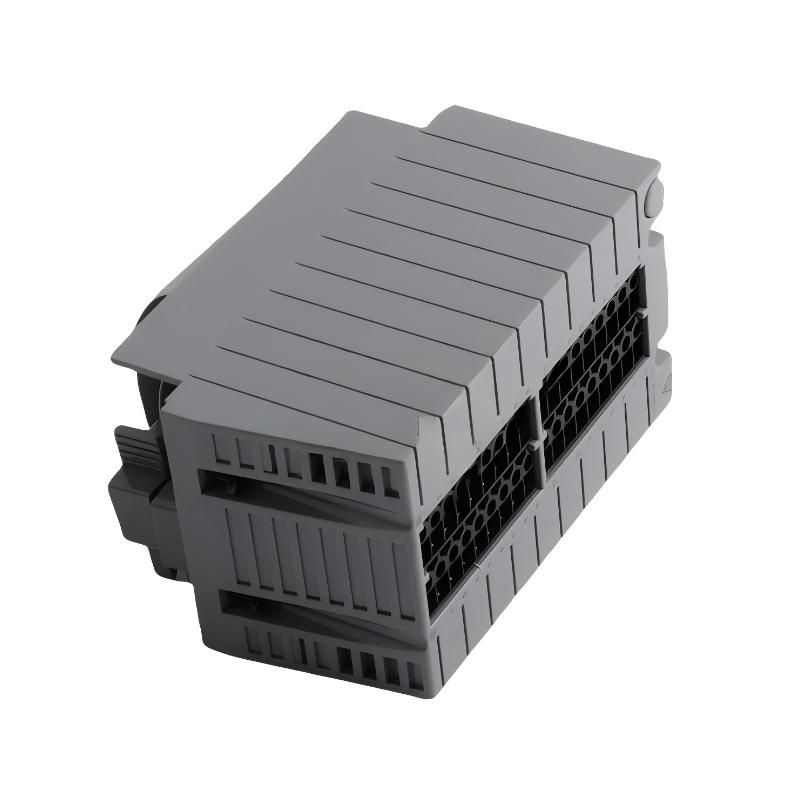

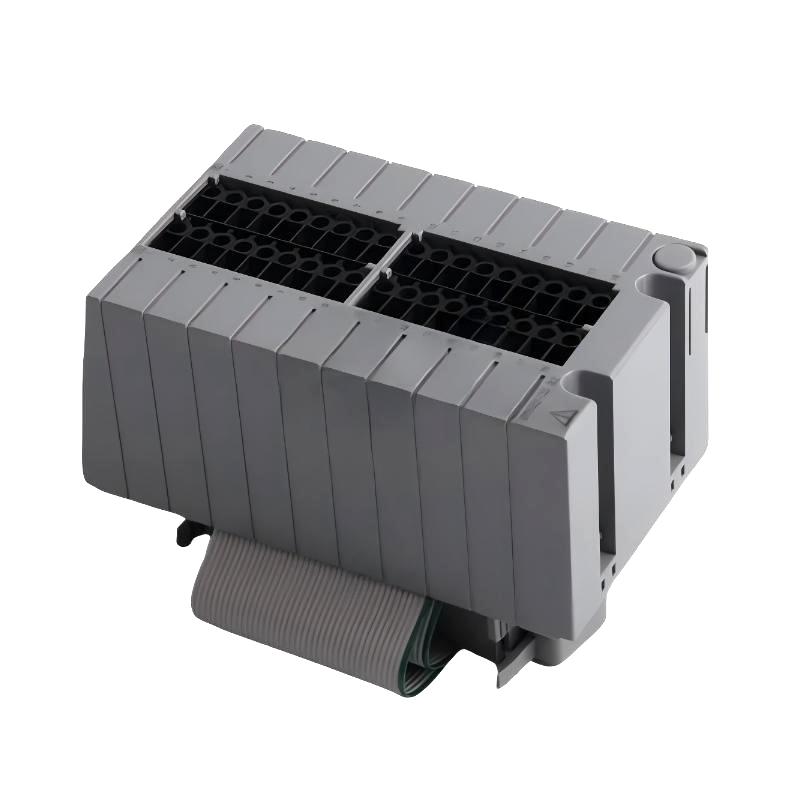

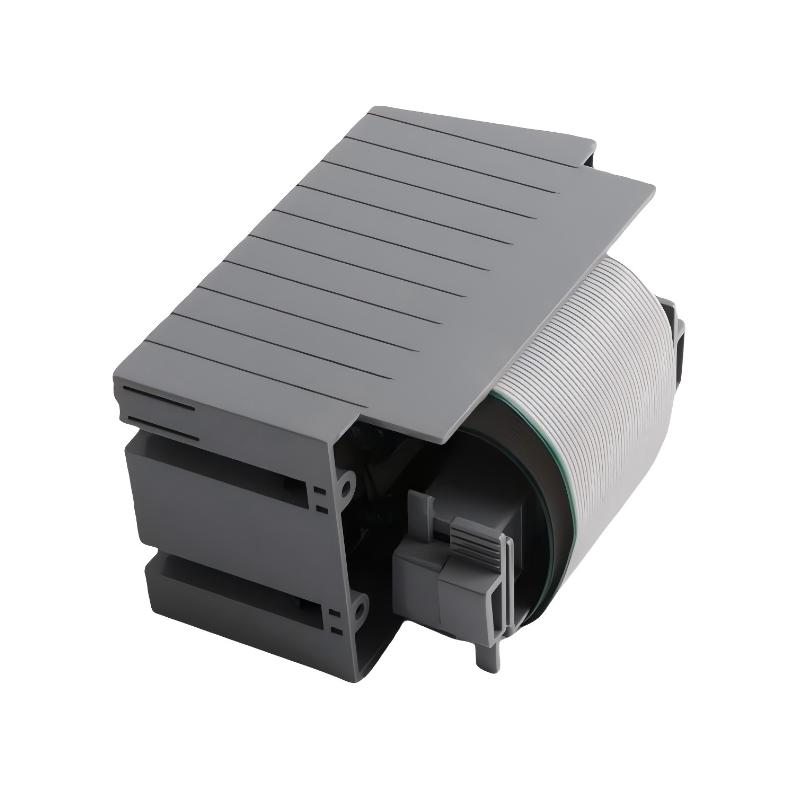

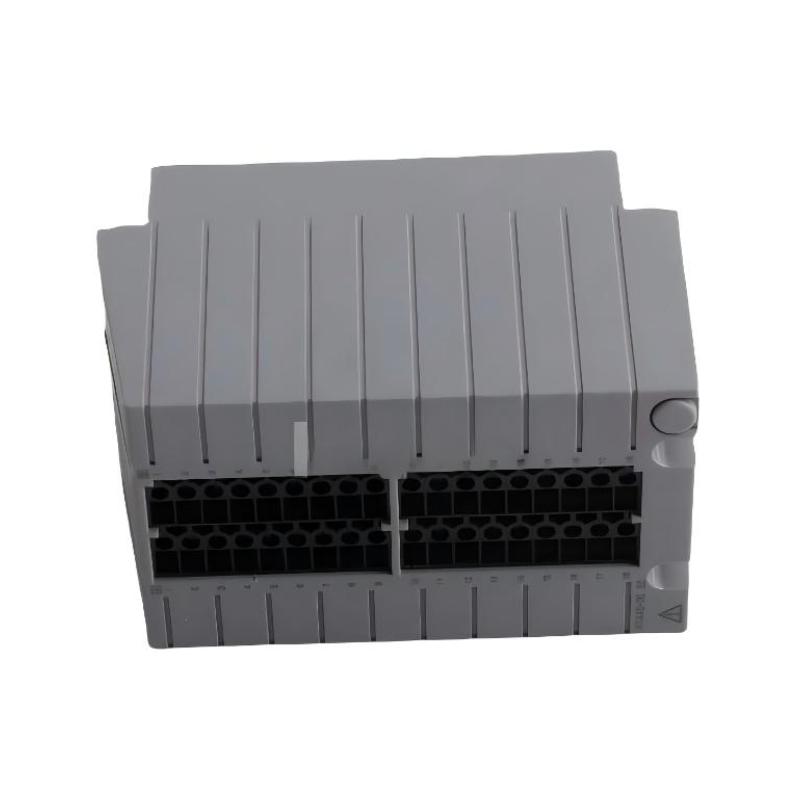

The ATA4D-00 Dual Redundant Pressure Clamp Terminal is a compact and reliable wiring solution designed for industrial automation systems. It ensures secure signal connections while supporting redundant architectures, making it ideal for applications where reliability and uptime are critical. Its space-saving design and robust construction make it a practical choice for modern control panels.
Technical Specifications
Parameter
Specification
Model
ATA4D-00
Type
Dual Redundant Pressure Clamp Terminal
Connection Method
Pressure clamp
Mounting
Panel-mounted
Operating Temperature
0°C to 60°C
Storage Temperature
-20°C to 70°C
Dimensions
114 × 65.6 × 72 mm
Weight
0.3 kg
Compatible and Complementary Options
Model
Product Name
ATA4S-00
Pressure Clamp Terminal
ATB5D-00
Dual Redundant Terminal Block
AAI141-S00
Analog Input Module
ADV551-P00
Digital Output Module
Frequently Selected Alternatives
Model
Product Name
ATA4D-10
Dual Redundant Clamp Terminal
ATK4A-00
Terminal Block Unit
ATA4S-10
Pressure Clamp Terminal
ATD5A-00
Terminal Distribution Unit
Applications
• Distributed control systems – Reliable terminal connection for critical signal paths
• Redundant system architectures – Ensures dual-channel wiring for enhanced safety
• Process automation – Stable signal termination in industrial environments
• Power and utility plants – Supports secure and consistent signal transmission
• Manufacturing systems – Improves wiring reliability in control panels
Key Advantages
• Dual redundancy design – Enhances system reliability and fault tolerance
• Secure clamp connection – Provides stable and vibration-resistant wiring
• Compact structure – Saves space in control cabinets
• Easy installation – Simplifies wiring and maintenance tasks
• Industrial durability – Built for long-term operation in harsh conditions
FAQs
1. What is the main function of this terminal unit?
It provides secure and redundant connection points for pressure signal wiring.
2. What does dual redundancy mean in this context?
It allows two independent signal paths to improve system reliability.
3. What type of connections are supported?
It uses pressure clamp terminals for secure and tool-efficient wiring.
4. Is it suitable for safety-critical systems?
Yes, its redundant design supports high-availability applications.
5. Does it require special tools for wiring?
No, standard tools are sufficient for installation and maintenance.
6. Can it withstand vibration?
Yes, the clamp mechanism ensures stable connections under vibration.
7. Is it compatible with Yokogawa systems?
Yes, it is designed for seamless integration with Yokogawa control platforms.
8. What environments is it designed for?
It is suitable for industrial environments with demanding conditions.
9. Does it support quick replacement?
Yes, its design allows fast and efficient replacement when needed.
10. How does it improve wiring reliability?
By ensuring consistent contact pressure and reducing loose connections.
