Brand:Yokogawa Electric Item No.:ATI3S-001 Product Origin:Japan Product Dimensions:114 x 32.6 x 60.5 mm Product Weight:0.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

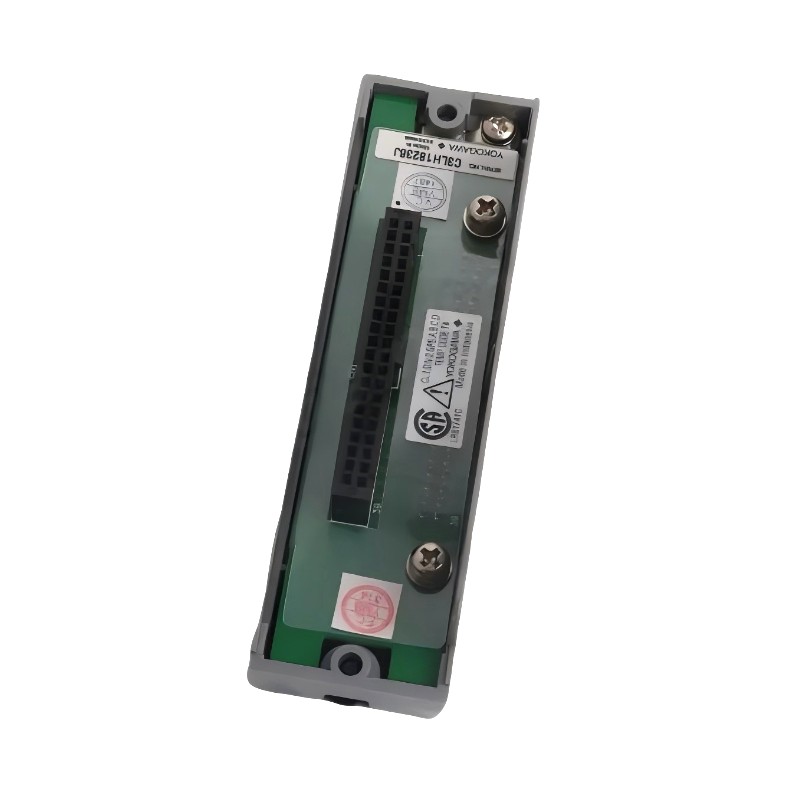

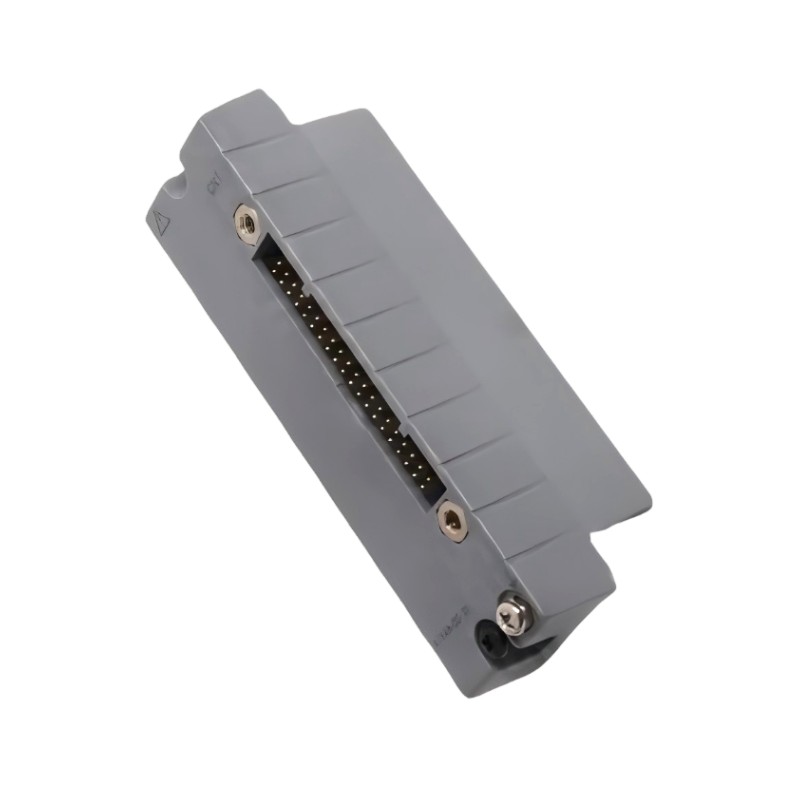

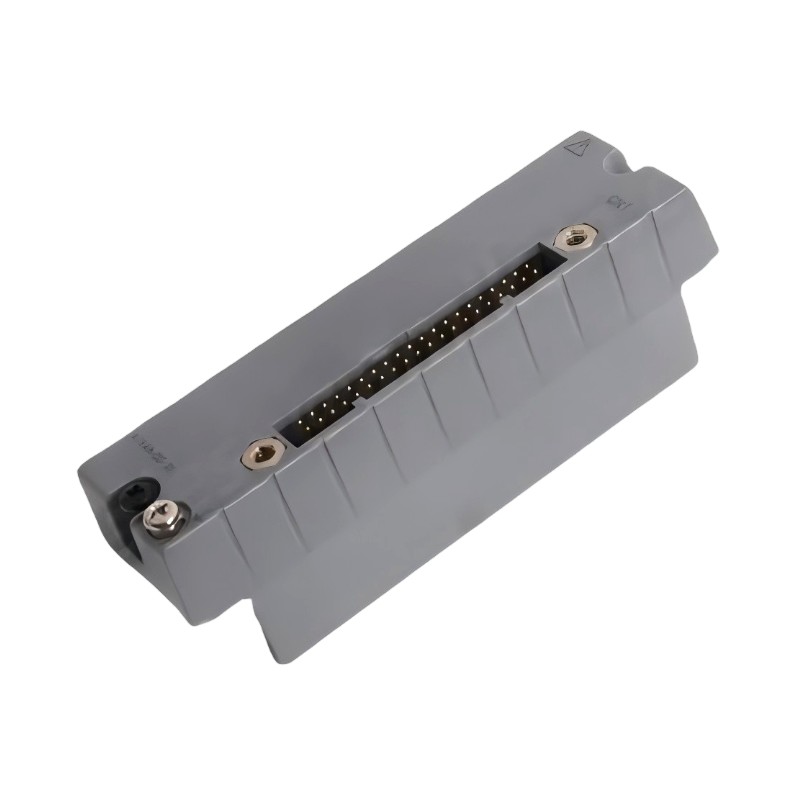

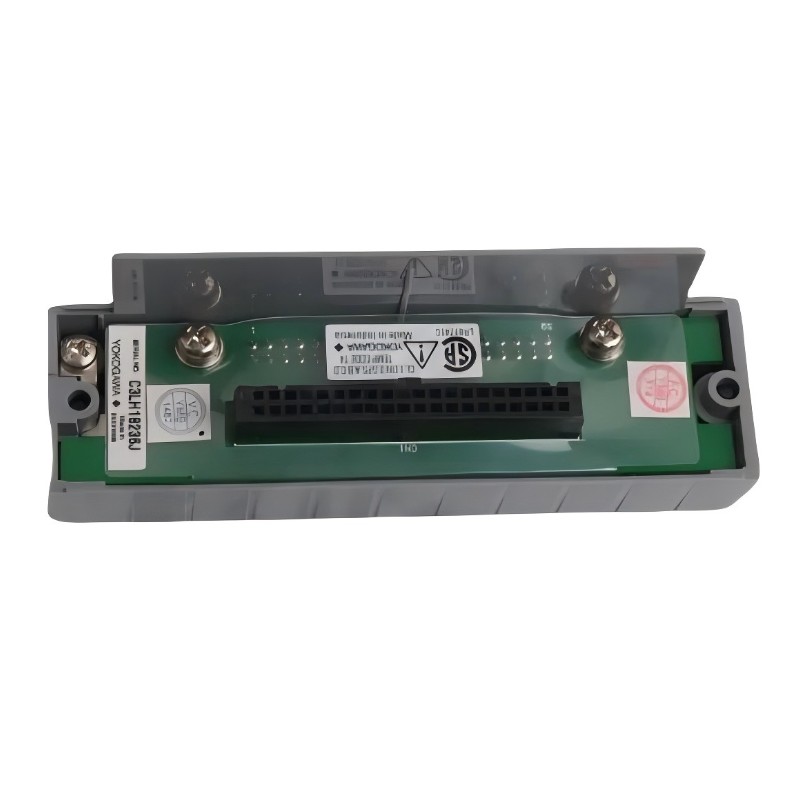

The Yokogawa ATI3S-001 Pressure Clamp Terminal Block is designed for industrial automation environments where wiring reliability, installation efficiency, and long-term stability are essential. By replacing traditional screw terminals with a spring-pressure mechanism, it improves both installation speed and operational consistency.
It is widely used in control systems that demand high wiring density and resistance to vibration or continuous operational stress.
• Process automation systems
Used in distributed control cabinets where stable signal routing and wiring density are required.
• Industrial manufacturing equipment
Applied in production line control panels to ensure reliable electrical interconnection under continuous operation.
• Power distribution and energy monitoring systems
Supports structured wiring for measurement, monitoring, and load control interfaces.
• Instrumentation and sensor integration
Provides stable terminal points for analog and digital signal transmission from field devices.
• Transportation control systems
Used in railway and infrastructure electrical cabinets requiring vibration-resistant connections.
• Heavy machinery control units
Ensures secure wiring performance in high-load mechanical environments with constant movement.
Key Engineering Advantages
• Tool-free pressure clamp technology
Enables fast wiring without screw tightening, reducing installation time and human error.
• High vibration resistance design
Maintains consistent electrical contact even under continuous mechanical stress and movement.
• Compact modular structure
Optimized for high-density installation in space-limited control cabinets.
• Maintenance-free connection stability
Spring-force contact eliminates the need for periodic re-tightening.
• Stable electrical conductivity
Ensures reliable signal transmission across thermal variation and long operating cycles.
• Industrial-grade durability
Designed for extended service life in demanding automation environments.
Technical FAQs
Q1: What connection method does the ATI3S-001 use?
A: It uses a spring-pressure clamp mechanism for secure conductor fixation.
Q2: Is it suitable for environments with vibration?
A: Yes, it is engineered to maintain stable contact under continuous vibration.
Q3: Does it require periodic maintenance tightening?
A: No, the spring system maintains constant pressure without retightening.
Q4: What conductor types are supported?
A: Solid and stranded copper conductors are both compatible.
Q5: Can it be installed on DIN rails?
A: Yes, it is designed for standard DIN rail mounting.
Q6: How does it ensure long-term electrical reliability?
A: Constant spring force ensures stable contact pressure over time.
Q7: Is it suitable for compact electrical cabinets?
A: Yes, its modular compact design supports dense wiring layouts.
Q8: Can it handle frequent electrical switching?
A: Yes, it is designed for repeated operational cycling.
Q9: What improves its durability in industrial use?
A: High-strength materials and stable mechanical spring structure.
Q10: Is special tooling required for installation?
A: No, the connection itself is tool-free.
