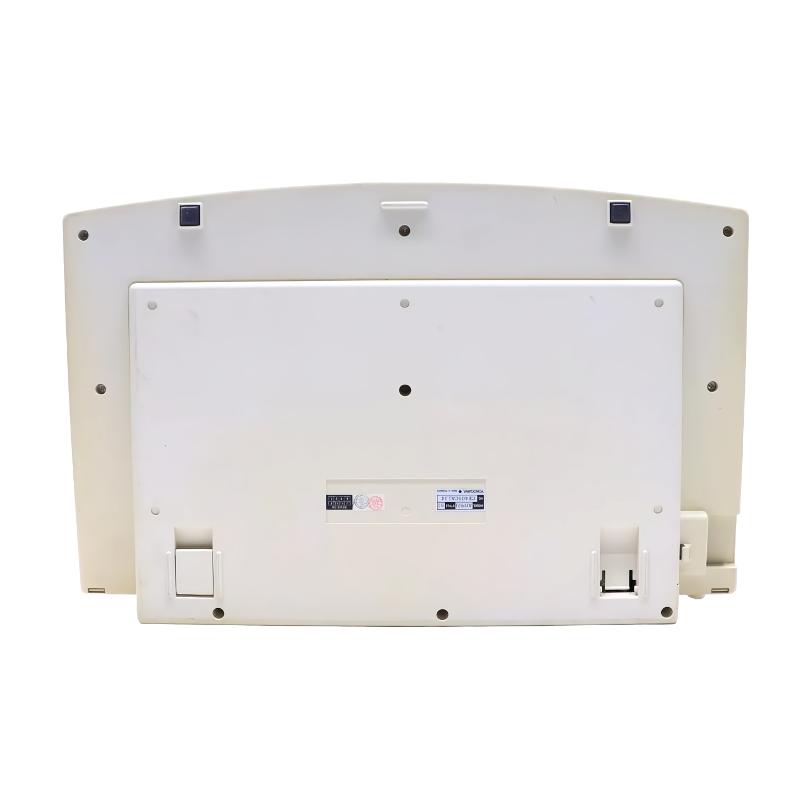

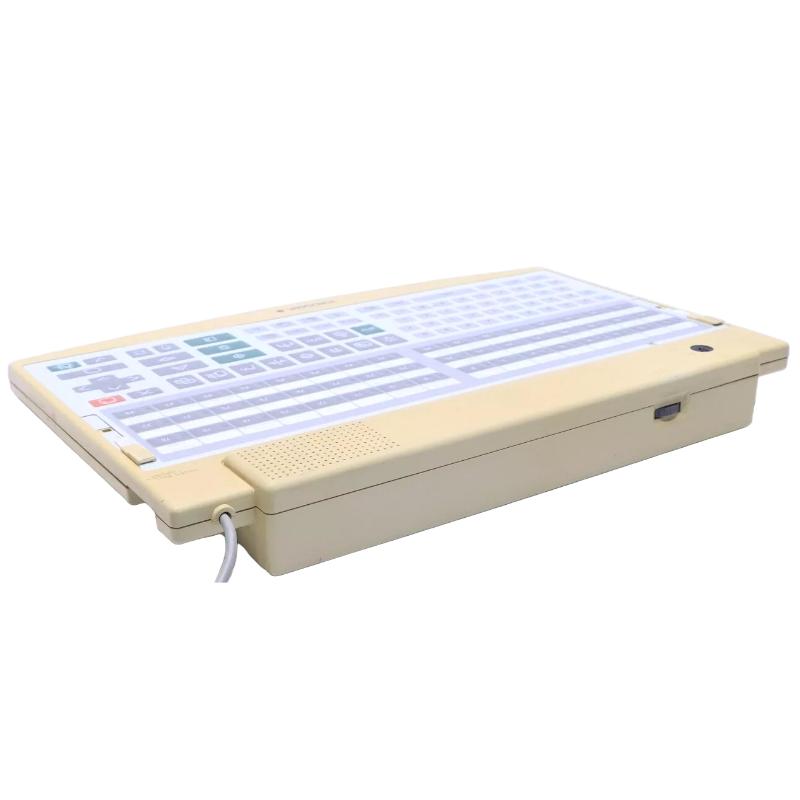

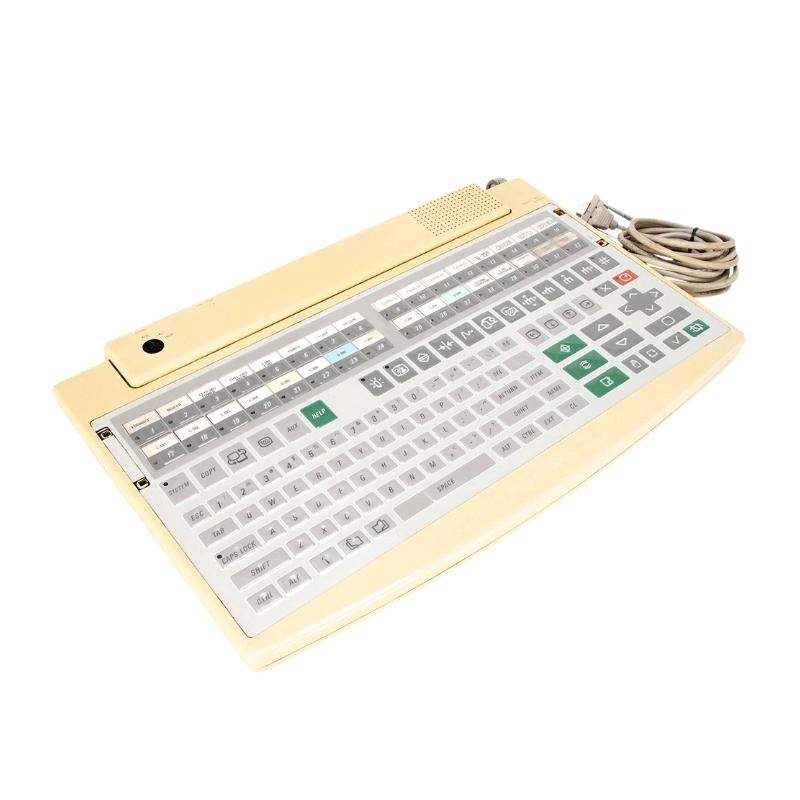

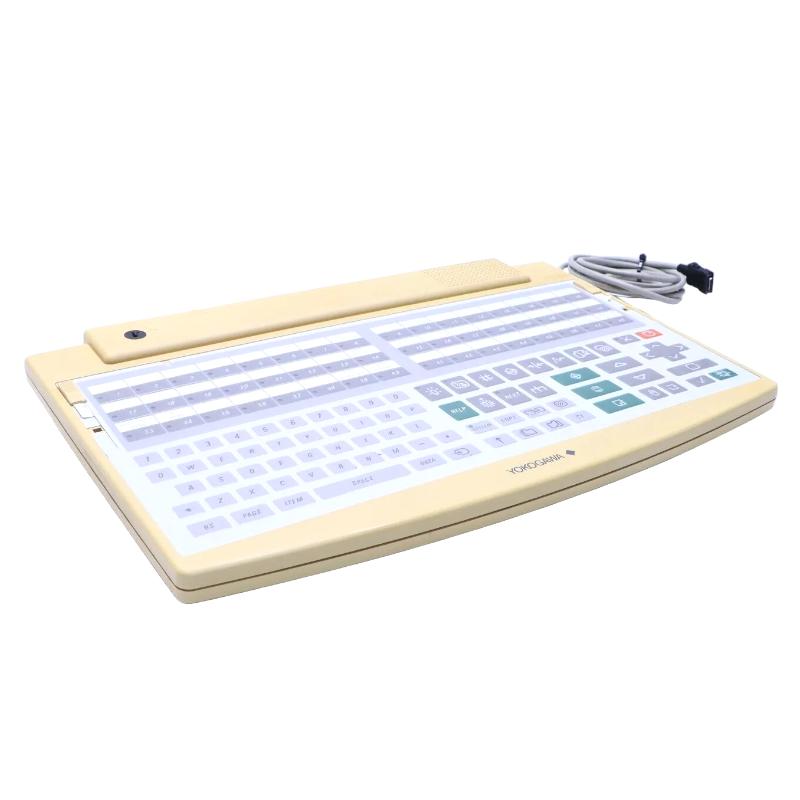

The Yokogawa AIP826 is an industrial-grade operation keyboard (HIS operator interface unit) designed for Yokogawa CENTUM CS / CENTUM VP Distributed Control Systems.
It is widely used in control rooms where operators require fast, tactile access to process control functions, alarm acknowledgment, and loop operation. Unlike standard PC keyboards, the AIP826 is engineered specifically for real-time industrial process interaction, ensuring stability, responsiveness, and ergonomic operation in mission-critical environments.
This model is a key component in legacy and existing Yokogawa DCS installations, especially in oil & gas, petrochemical, and power generation plants.
Technical Specifications — Industrial Operator Interface Performance
Core Technical Data
| Parameter | Specification |
|---|---|
| Product Model | AIP826 |
| Brand | Yokogawa |
| Product Type | Operation Keyboard / Operator Interface Unit |
| System Compatibility | CENTUM CS / CENTUM VP HIS |
| Interface | USB 2.0 (bus-powered) |
| Function | Operator keyboard with alarm & control shortcuts |
| Color | Industrial black (Munsell N1.5) |
Electrical & Functional Data
- Power supply: 5V DC via USB port
- Current consumption: up to 1A
- Integrated audio feedback via USB speaker (system dependent)
- Designed for continuous 24/7 operation
- Flat-panel industrial key layout for fast operator response
Mechanical Dimensions & Weight
| Item | Specification |
|---|---|
| Dimensions (W × H × D) | 241.3 × 241.8 × 24.4 mm |
| Weight | Approx. 0.5 – 2.3 kg (configuration dependent) |
Environmental Ratings
- Operating temperature: 5°C to 40°C
- Storage temperature: -20°C to 60°C
- Humidity: 20% to 80% RH (non-condensing)
- Designed for control room and industrial console environments
- Anti-glare, durable industrial surface construction
