Brand:Yokogawa Electric Item No.:Yokogawa NFAI141-S00 Product Origin:Japan Product Dimensions:482 × 210 × 220 mm Product Weight:1.0 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

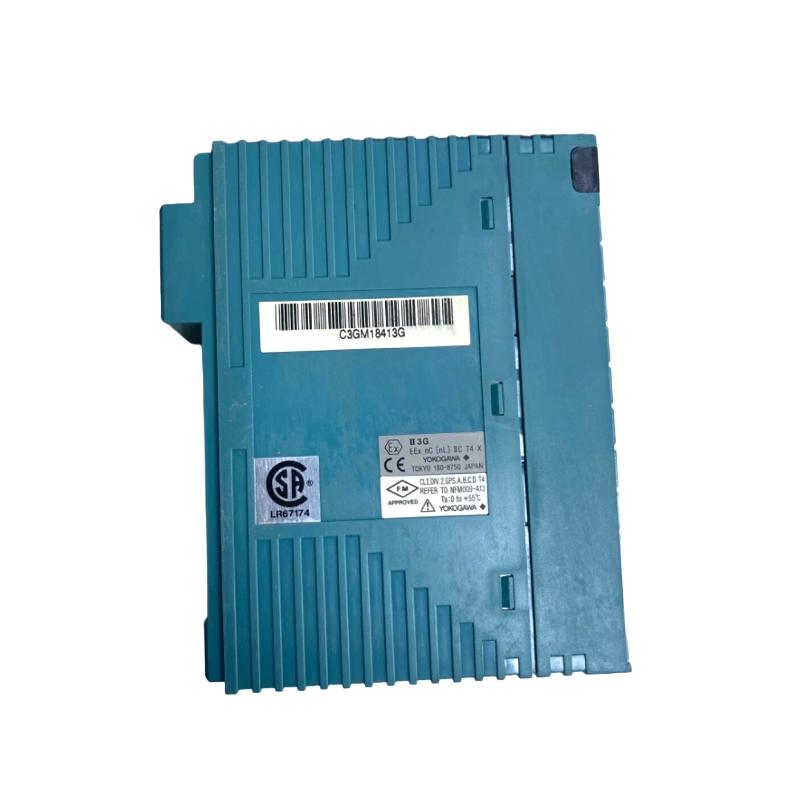

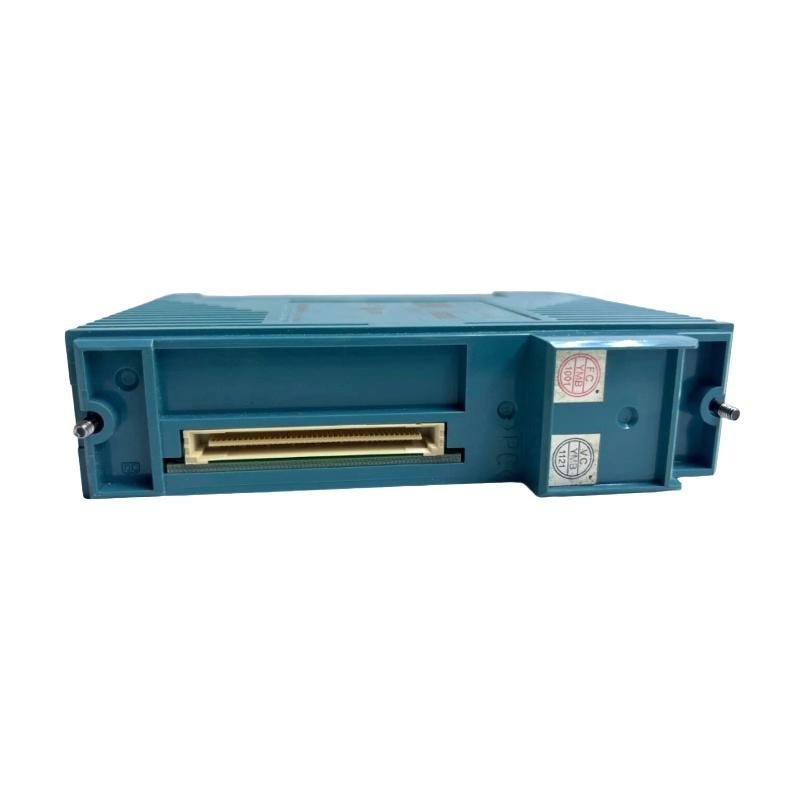

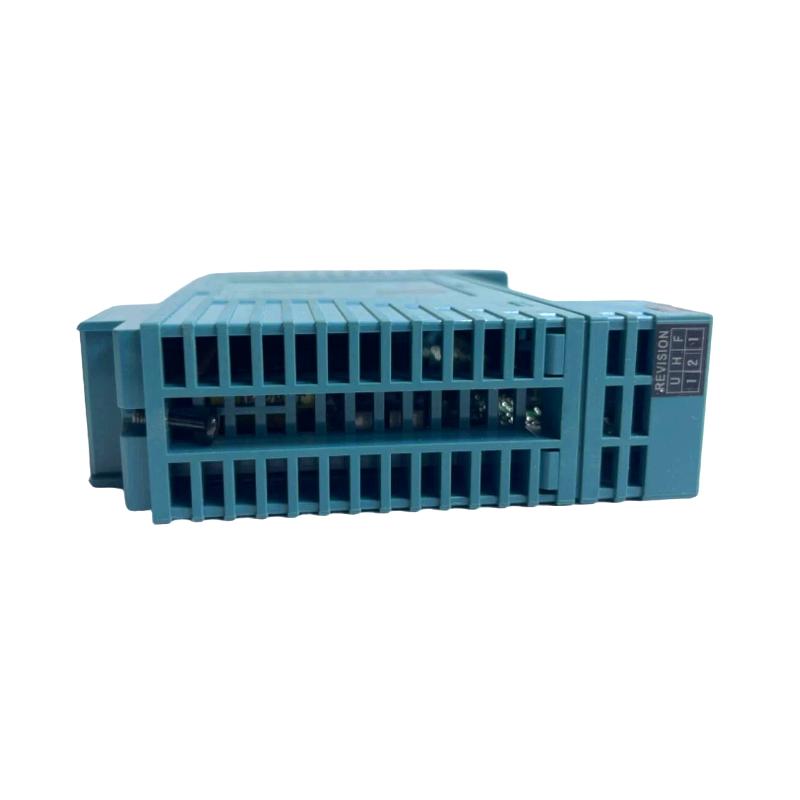

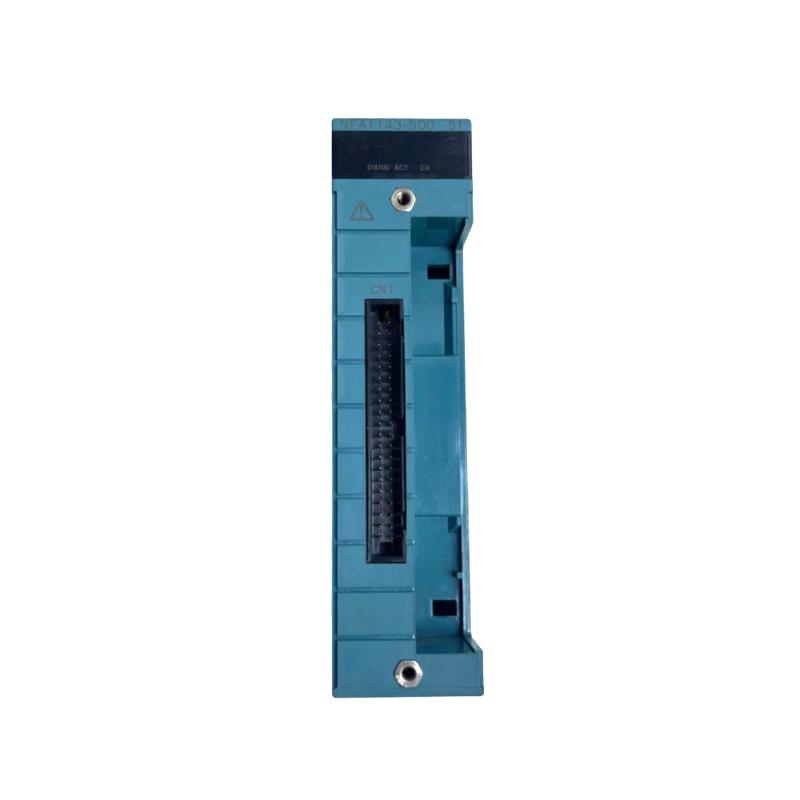

The Yokogawa NFAI141-S00 is a high-performance analog input module designed for precise signal acquisition in advanced industrial control systems such as STARDOM and CENTUM architectures. It converts field signals from transmitters into accurate digital data, enabling reliable monitoring and control of critical process variables.
With its 16-channel design and high accuracy, this module is widely used in industries where measurement integrity, fast response, and system stability are essential. It is particularly valued in environments that demand continuous operation and real-time data processing.
Technical Specifications
Parameter
Details
Model
NFAI141-S00
Brand
Yokogawa
Product Type
Analog Input Module
Channels
16 (non-isolated)
Input Signals
4–20 mA, 1–5 V, 0–10 V
Resolution
16-bit
Accuracy
±0.05% of reading
Data Refresh Cycle
10 ms
Power Supply
24 VDC
Power Consumption
~3 W
Physical Dimensions & Weight
Item
Specification
Dimensions (W × H × D)
482 × 210 × 220 mm
Weight
~1.0 kg
Recommended Related Models
Yokogawa NFAI135 – Analog input module (compact type)
Yokogawa NFDR541 – Digital I/O module
Yokogawa NFCP100 – CPU module (STARDOM controller)
Yokogawa NFTA4S-00 – Terminal block (standard)
Yokogawa NFTA4S-10 – Terminal block with surge protection
Popular Yokogawa Models
Yokogawa AAI143 Analog Input Module
Yokogawa ADV551 Digital Output Module
Yokogawa CP451 Processor Module
Yokogawa PW482 Power Supply Module
Yokogawa ESB Bus Interface Unit
Applications
The NFAI141-S00 is widely used in:
Industrial process control systems
Oil & gas monitoring and automation
Power generation and turbine control
Chemical and petrochemical plants
Water treatment and environmental monitoring
Data acquisition systems in manufacturing
It is ideal for capturing analog signals such as pressure, flow, temperature, and level measurements.
Advantages
High-precision 16-bit signal conversion for accurate measurements
Multi-signal support (current and voltage inputs)
Fast response for real-time process monitoring
Stable performance in continuous industrial operation
Strong compatibility with Yokogawa control systems
Flexible integration with 2-wire and 4-wire transmitters
Reliable long-term operation with minimal drift
Technical FAQs
1. What is the NFAI141-S00 used for?
It collects analog signals from field instruments and converts them into digital data for control systems.
2. How many channels does it support?
16 input channels.
3. What types of signals can it process?
4–20 mA, 1–5 V, and 0–10 V signals.
4. What is its accuracy level?
Approximately ±0.05% of reading.
5. What is the resolution?
16-bit resolution.
6. What is the weight of the module?
Around 1.0 kg.
7. What systems is it compatible with?
Yokogawa STARDOM and related DCS platforms.
8. Does it support real-time monitoring?
Yes, with a fast data refresh cycle of about 10 ms.
9. Can it be used with transmitters?
Yes, it supports both 2-wire and 4-wire transmitters.
10. Why is it important in automation systems?
Because accurate signal acquisition is critical for stable and safe process control.
