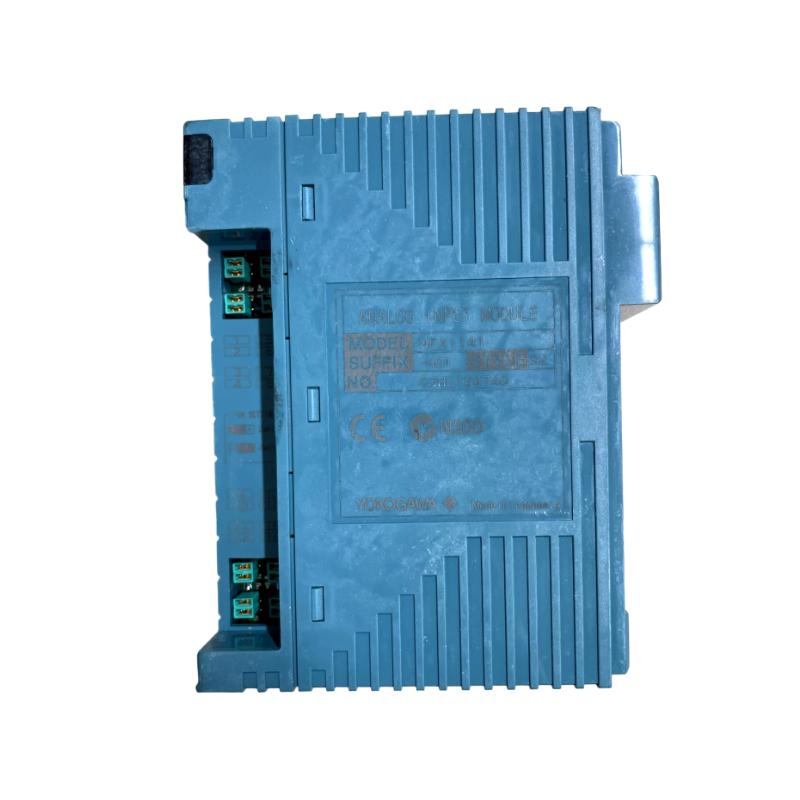

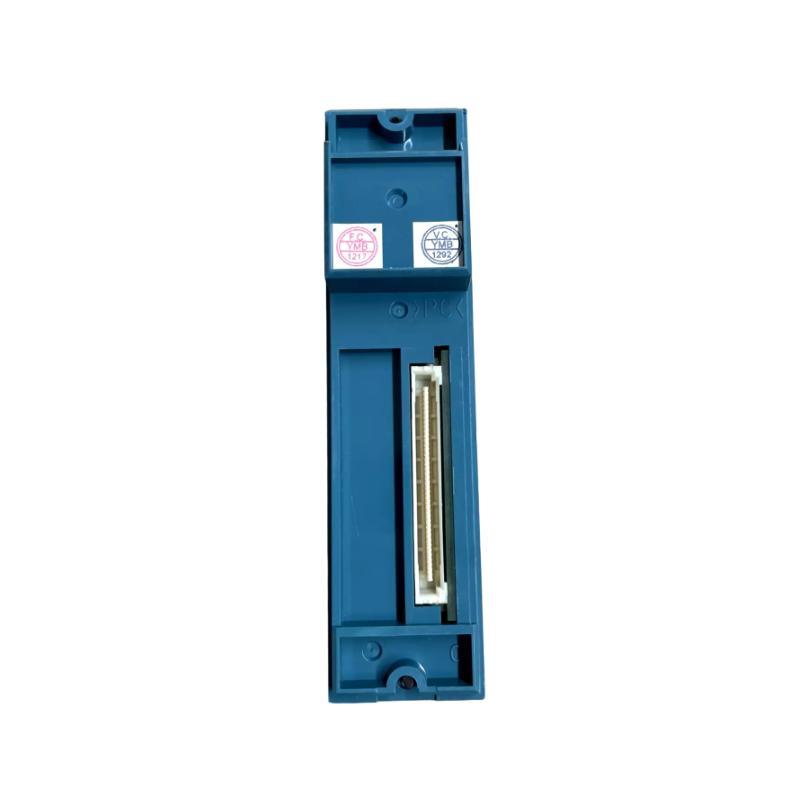

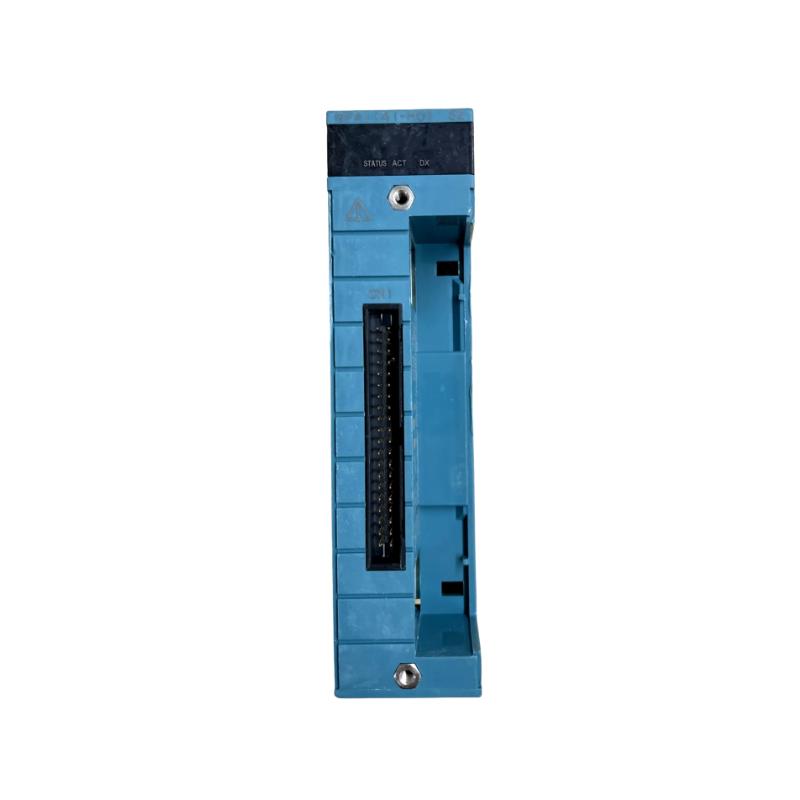

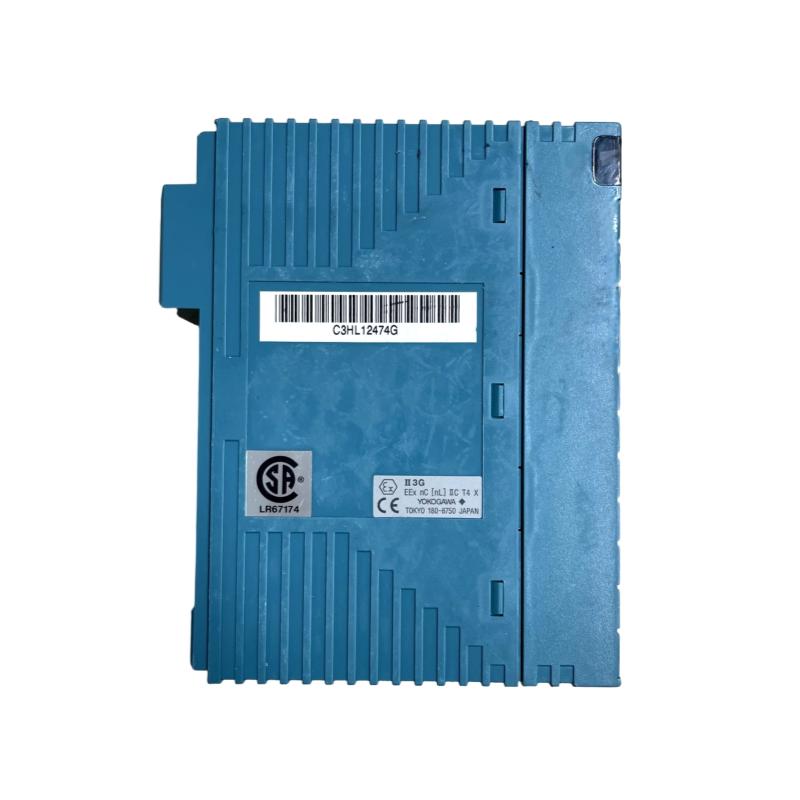

The Yokogawa NFAI141-S00 S1 is a high-precision analog input module engineered for STARDOM FCN and CENTUM-based control systems, delivering reliable and accurate signal acquisition for critical industrial processes.
The “S1” suffix indicates an enhanced standard configuration, typically including extended environmental or reliability features suitable for demanding installations. Designed for continuous operation, this module ensures stable conversion of field signals into digital data, supporting real-time monitoring and advanced control strategies.
It is widely used in industries where data accuracy, system uptime, and long-term stability are essential.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | NFAI141-S00 S1 |
| Brand | Yokogawa |
| Product Type | Analog Input Module |
| Channels | 16 (non-isolated, differential) |
| Input Signal | 4–20 mA |
| Allowable Input | 27 mA |
| Accuracy | ±0.1% of full scale |
| Resolution | 16-bit |
| Data Refresh Cycle | 10 ms |
| Input Resistance | 250 Ω (power ON) |
| Transmitter Supply | 22.8–26.4 V DC |
| Communication | Supports HART (optional) |
Physical Dimensions & Weight
| Item | Specification |
|---|---|
| Dimensions (W × H × D) | 482 × 210 × 220 mm |
| Weight | ~0.2 – 1.0 kg |
Note: Weight varies depending on configuration and mounting structure.
Recommended Related Models
- Yokogawa NFAI135 – Compact analog input module
- Yokogawa NFAI143 – Isolated analog input module
- Yokogawa NFAV141 – Voltage input module
- Yokogawa NFTA4S-00 – Terminal block (standard type)
- Yokogawa NFTA4S-10 – Terminal block with surge protection
