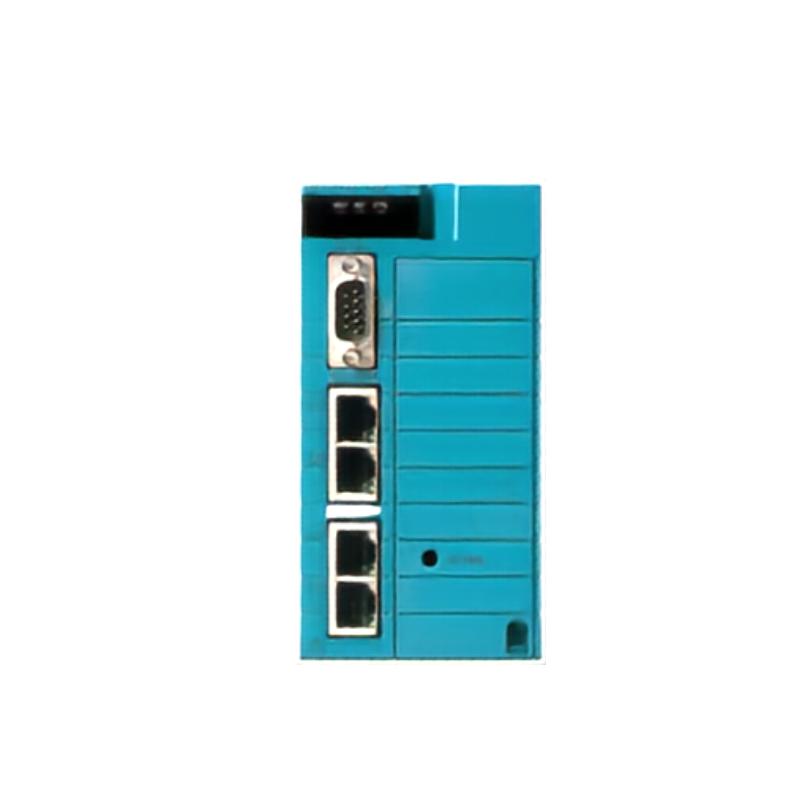

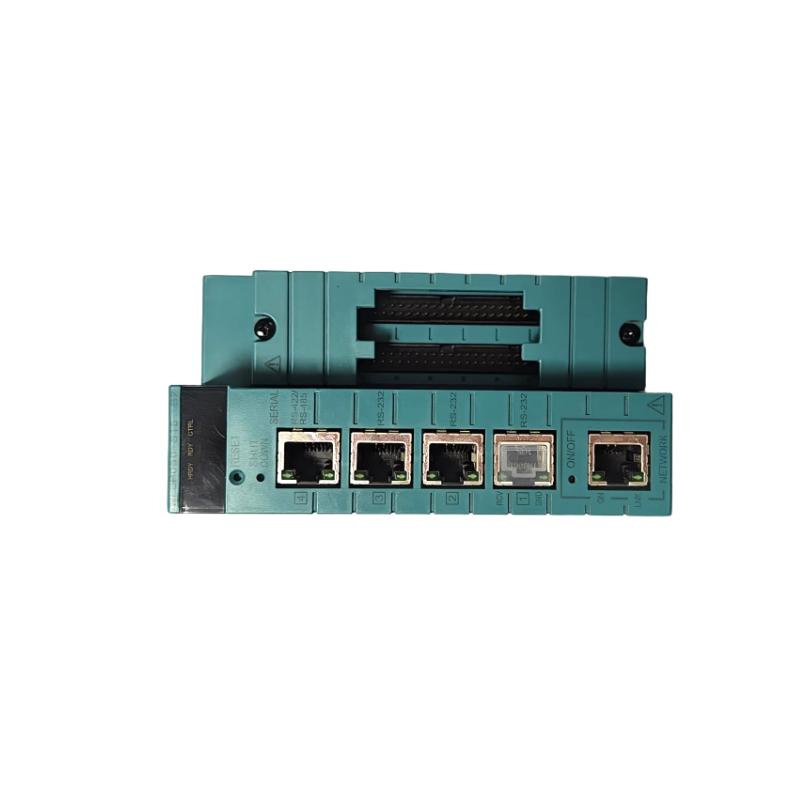

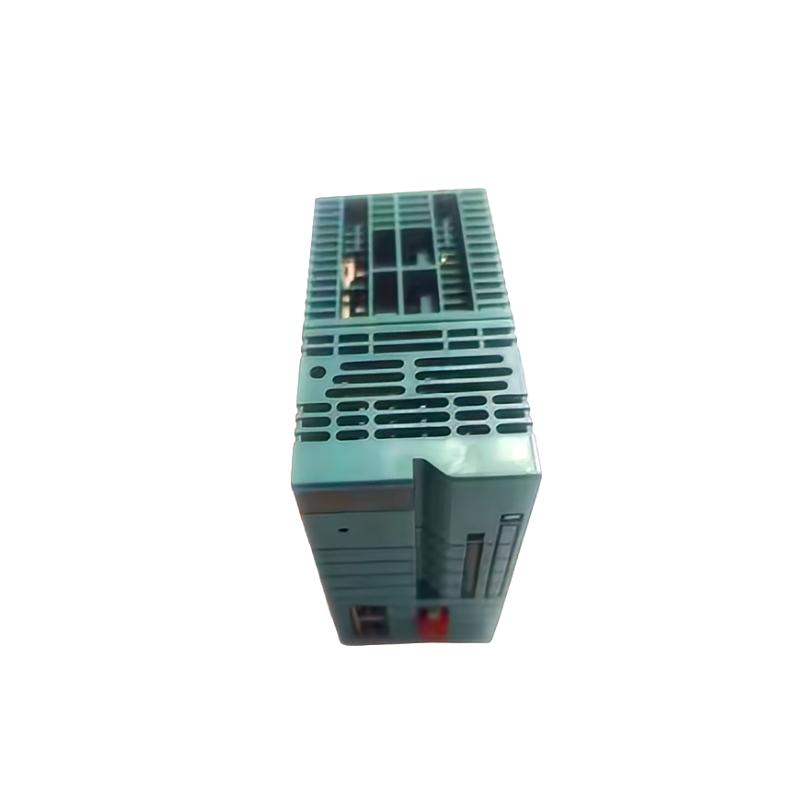

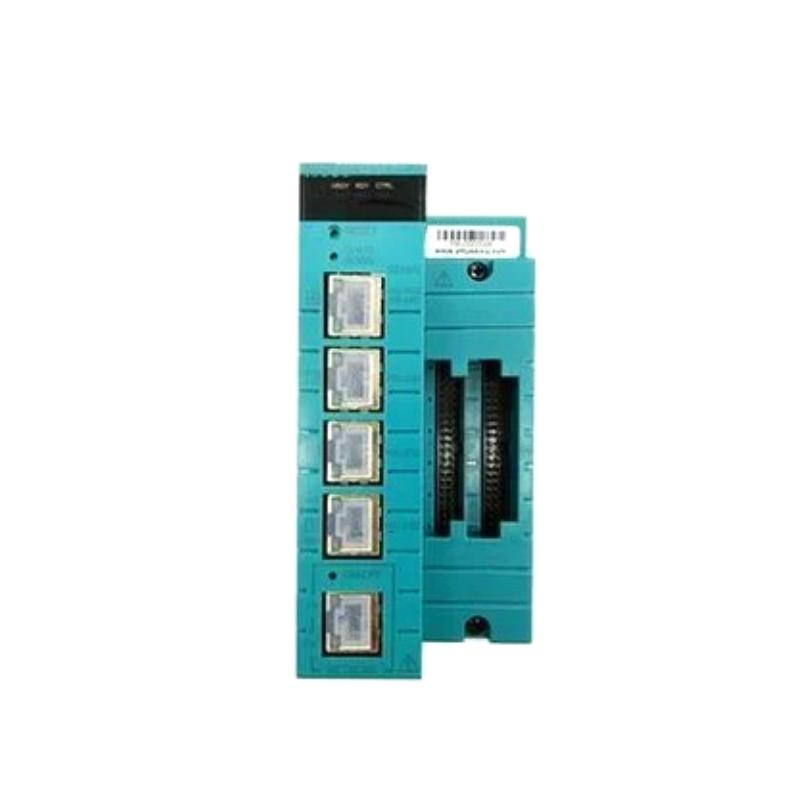

The Yokogawa NFCP501-S15 is a high-performance CPU module designed for the FCN-500 / STARDOM autonomous controller platform, delivering advanced processing capability, improved communication performance, and robust system reliability for mission-critical industrial automation.

The S15 variant represents an enhanced configuration optimized for demanding applications requiring faster execution, stronger network connectivity, and higher system resilience. It is widely used in oil & gas, petrochemical plants, power generation systems, and large-scale SCADA/RTU networks, where continuous and deterministic control is essential.

Technical Specifications (Industrial Real-Time Control Processor Core)

Parameter	Details
Model	NFCP501-S15
Brand	Yokogawa
Product Type	CPU Module
System Platform	FCN-500 / STARDOM
Processor	Intel Atom E3815, 1.46 GHz
Memory	256 MB ECC RAM
SRAM	2 MB ECC (battery-backed)
Flash Memory	1 GB onboard
External Storage	SDHC slot (4–32 GB)
Ethernet Ports	2 × RJ45 (10/100/1000 Mbps)
Serial Port	1 × RS-232C
Programming Standard	IEC 61131-3 compliant
Redundancy Support	Yes (duplex CPU configuration supported)
Operating Temperature	-20°C to +70°C
Mounting	FCN-500 base module slot (2-slot width design)

Physical Dimensions & Weight

Item	Specification
Dimensions (W × H × D)	65.8 × 130 × 149.3 mm
Weight	~0.9 kg

Recommended Related Models (System Architecture Expansion)

Yokogawa NFCP501-S00 – Standard CPU variant
Yokogawa NFCP502-S00 – Higher communication CPU model
Yokogawa NFBU200 – Base module (long type)
Yokogawa NFPW426 – Standard power supply module
Yokogawa SB401 – ESB bus interface module

Popular Yokogawa Models (Core Control System Components)

Yokogawa AAI143 Analog Input Module
Yokogawa ADV161 Digital Input Module
Yokogawa ADV551 Digital Output Module
Yokogawa CP451 Controller Module
Yokogawa PW482 Power Supply Module

Applications (High-Speed Control for Critical Industrial Systems)

The NFCP501-S15 is widely used in:

Oil & gas production and pipeline SCADA systems
Petrochemical refinery distributed control systems
Power plant turbine and boiler automation
Offshore platform monitoring and control systems
Water treatment and utility automation
Large-scale industrial manufacturing control networks

It is especially suitable for environments requiring high-speed execution, redundant architecture, and stable long-term operation.

Advantages (Stronger Performance, Higher Reliability, Better Connectivity)

Enhanced CPU configuration for faster processing performance
Gigabit Ethernet support for improved communication speed
Fully supports redundant system architecture
High reliability ECC memory for stable operation
Designed for continuous 24/7 industrial workloads
Strong integration with Yokogawa FCN-500 ecosystem
SD card support for flexible data storage and maintenance
Optimized for harsh industrial environments

Technical FAQs

1. What is the NFCP501-S15 used for?
It is the main CPU module for Yokogawa FCN-500 control systems.

2. What is the difference between S00 and S15?
S15 typically indicates an enhanced configuration with improved communication and system performance.

3. What processor does it use?
Intel Atom E3815 at 1.46 GHz.

4. Does it support redundancy?
Yes, duplex CPU configuration is supported.

5. What is its weight?
Approximately 0.9 kg.

6. What is its size?
65.8 × 130 × 149.3 mm.

7. How many Ethernet ports does it have?
Two Ethernet ports with up to Gigabit support.

8. What systems is it compatible with?
Yokogawa FCN-500 and STARDOM platforms.

9. Can it operate in harsh environments?
Yes, designed for -20°C to +70°C industrial conditions.

10. Why is it widely used in industry?
Because it combines high performance, redundancy, and long-term reliability for critical automation systems.
