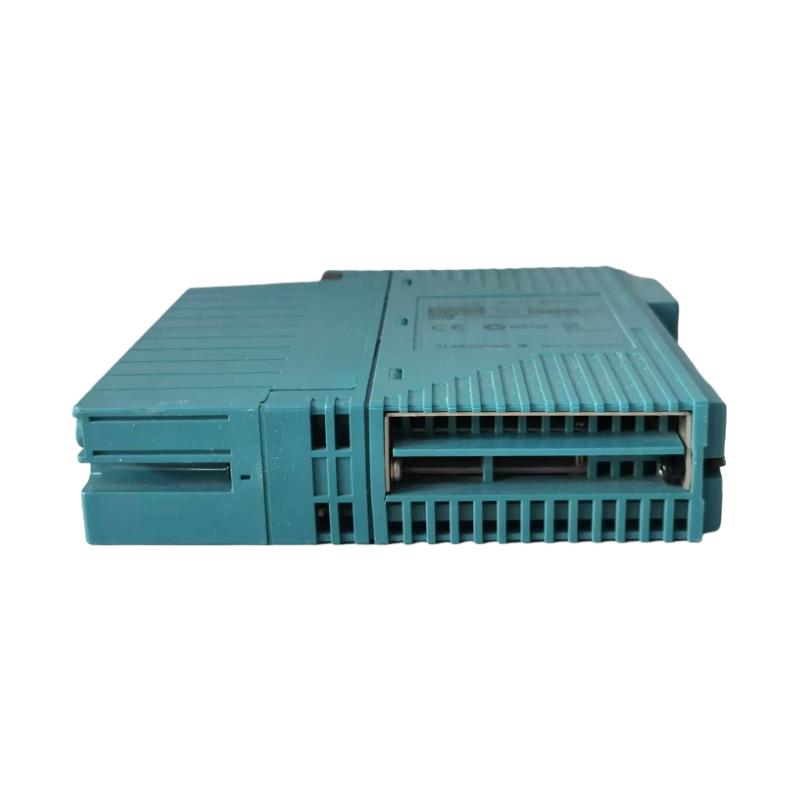

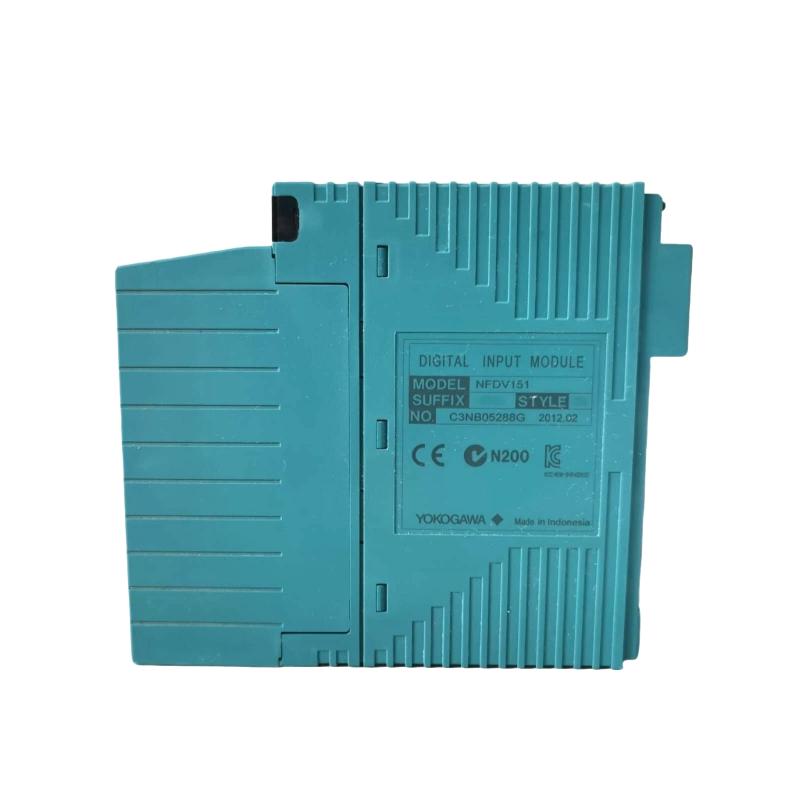

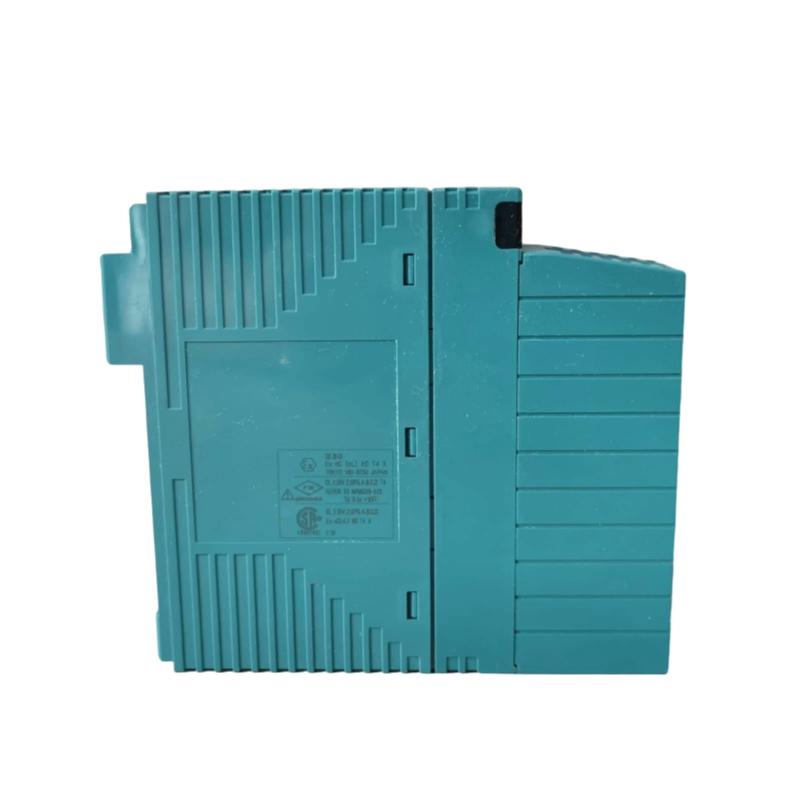

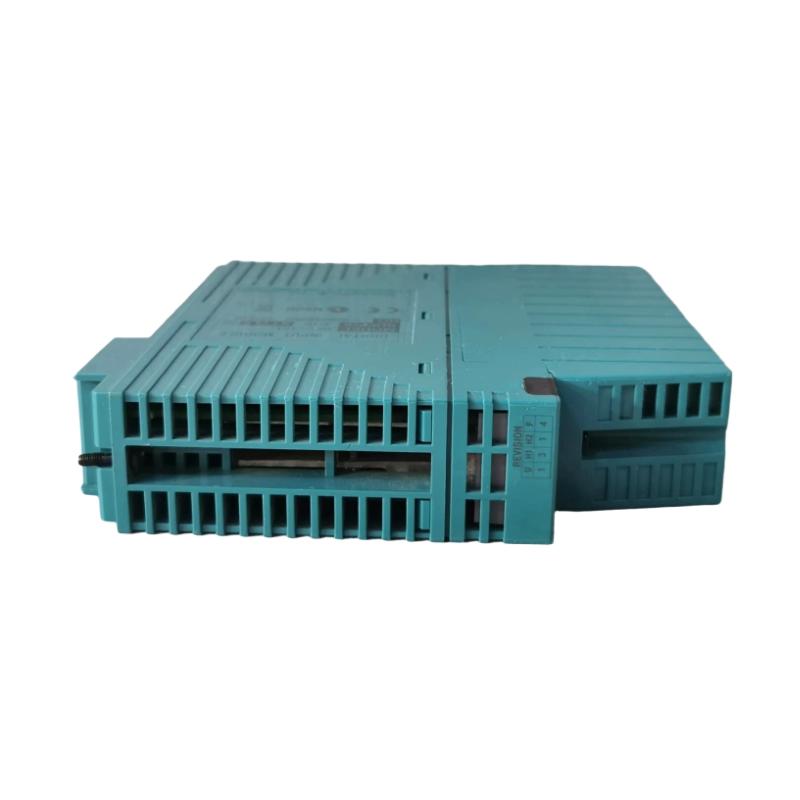

Yokogawa NFDV151-P60 Digital Input Module

The Yokogawa NFDV151-P60 is a 32-channel digital input module designed for the STARDOM / FCN / FCN-RTU distributed control system, providing reliable acquisition of ON/OFF signals from field devices such as switches, sensors, relays, and pushbuttons.

This “P60” variant is widely used in industrial automation systems requiring high channel density, fast response, and strong electrical isolation. It is engineered for harsh environments where signal stability and long-term operational reliability are critical.

---

Technical Specifications (Industrial-Grade Digital Signal Interface)

Parameter	Details
Model	NFDV151-P60
Brand	Yokogawa
Product Type	Digital Input Module
Channels	32 channels
Input Signal	24 V DC ON/OFF
Input ON Voltage	18 – 26.4 V DC
Input OFF Voltage	≤ 5 V DC
Input Current	~4.1 mA per channel
Max Input Voltage	30 V DC
Isolation	2000 V AC (field to system)
Response Time	≤ 8 ms
Max Switching Frequency	25 Hz
Wiring Type	Pressure clamp terminal / MIL connector
System Compatibility	STARDOM / FCN / FCN-RTU

The module is designed for 32-channel high-density digital input with strong galvanic isolation and fast response performance for industrial automation systems.

---

Physical Dimensions & Weight

Item	Specification
Dimensions (W × H × D)	130 × 107.5 × 32.8 mm
Weight	~0.30 kg

---
