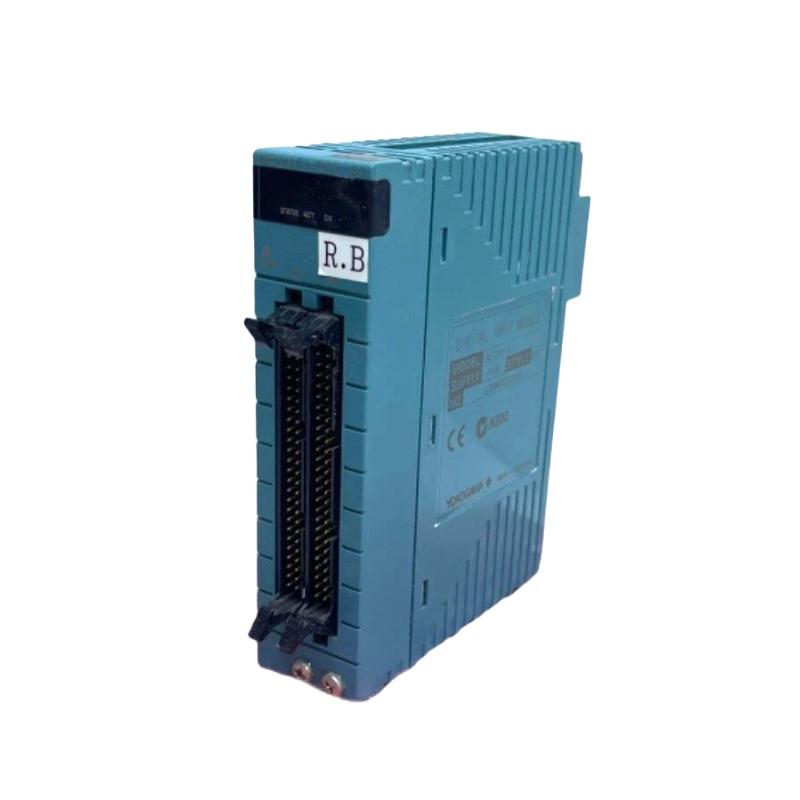

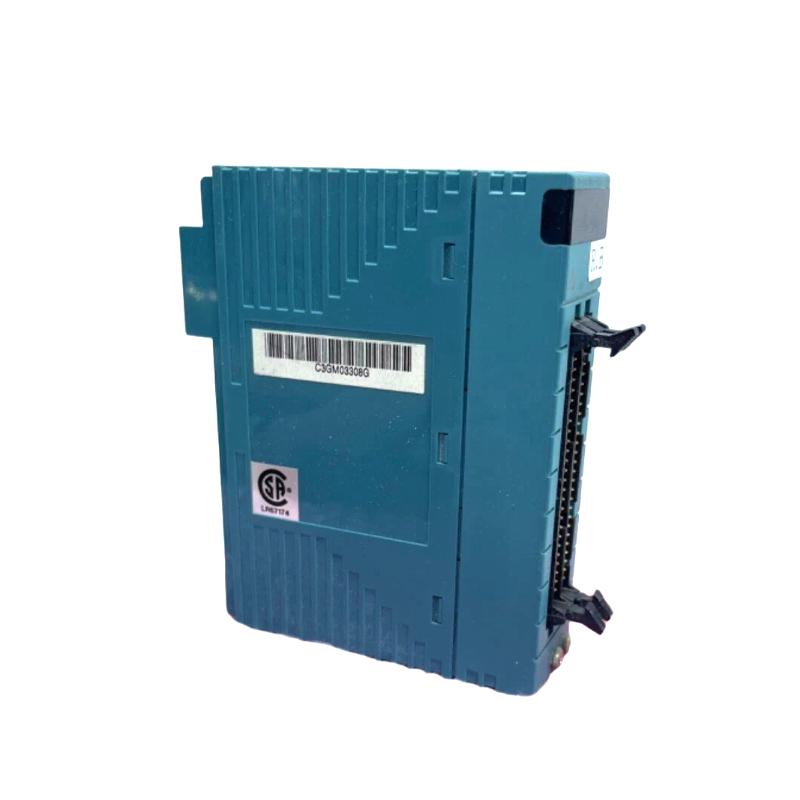

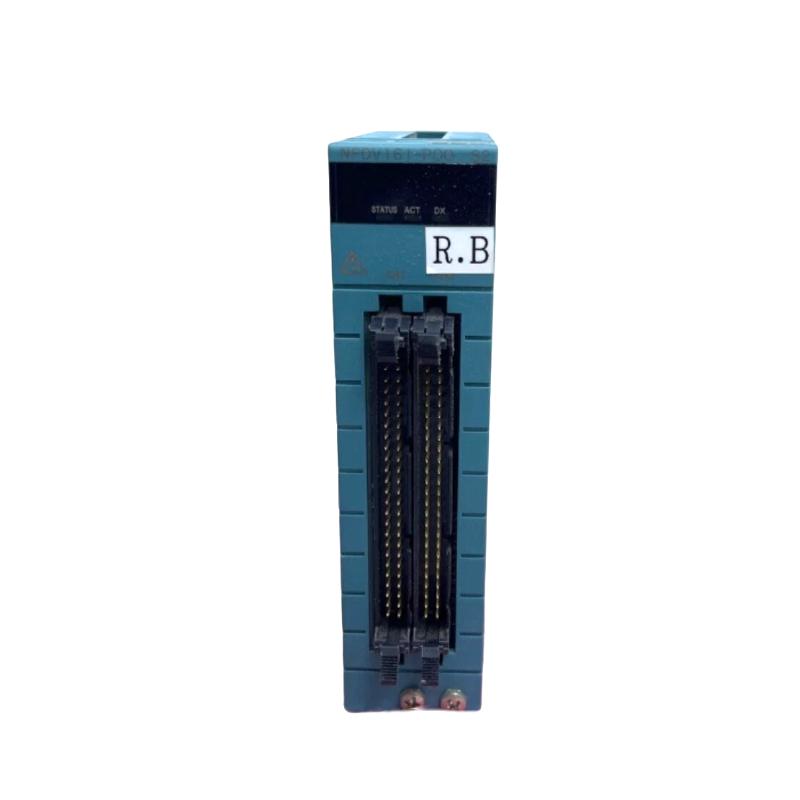

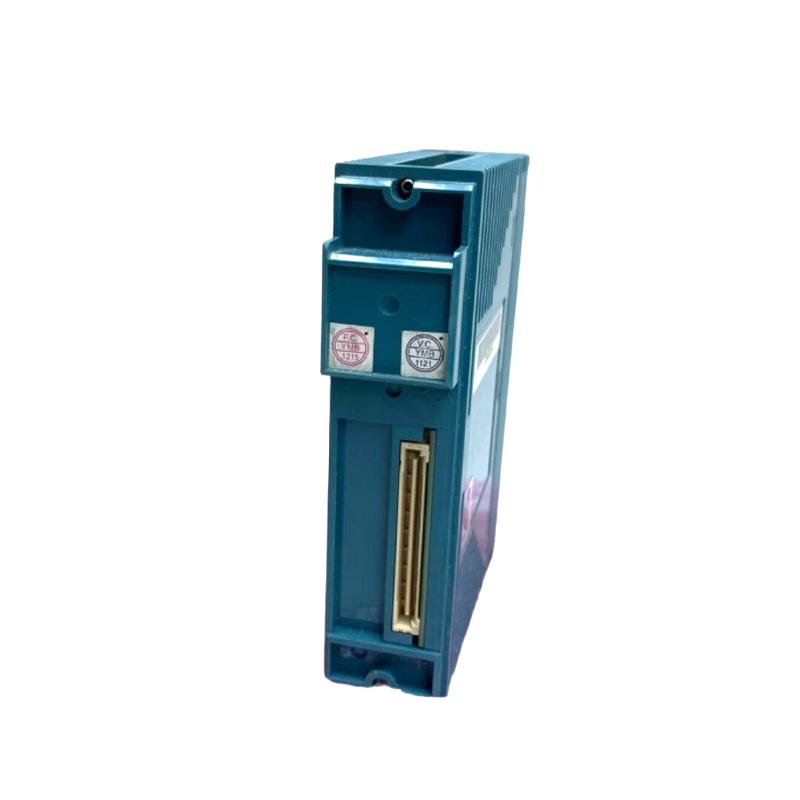

The Yokogawa NFDV161-P00 is a high-density digital input module designed for the FCN / FCN-RTU / STARDOM distributed control system, enabling reliable acquisition of ON/OFF signals from field devices such as switches, sensors, relays, and interlocks.
Compared with the NFDV151 series, the NFDV161 offers expanded input capacity (up to 64 channels), making it ideal for large-scale automation systems that require dense signal collection, reduced cabinet space, and simplified wiring architecture. It is widely used in oil & gas, petrochemical, power generation, and industrial SCADA systems.
Technical Specifications (Industrial High-Density Digital Input Interface)
| Parameter | Details |
|---|---|
| Model | NFDV161-P00 |
| Brand | Yokogawa |
| Product Type | Digital Input Module |
| Channels | 64 channels |
| Input Signal | 24 V DC ON/OFF |
| Input Type | Dry contact / sensor input |
| Input ON Voltage | 18 – 26.4 V DC |
| Input OFF Voltage | ≤ 5 V DC |
| Input Current | ~2.5 mA per channel |
| Input Impedance | ~10 kΩ |
| Isolation | Optocoupler isolation (field to system) |
| Response Time | ≤ 10 ms |
| Function Support | Status input / pushbutton detection |
| Max Switching Frequency | ~25 Hz |
| System Compatibility | FCN / FCN-RTU / STARDOM |
The module supports 64-channel high-speed digital input with optocoupler isolation and fast 10 ms refresh cycle for real-time monitoring.
Physical Dimensions & Weight
| Item | Specification |
|---|---|
| Dimensions (W × H × D) | 130 × 107.5 × 32.8 mm |
| Weight | ~0.30 kg |
