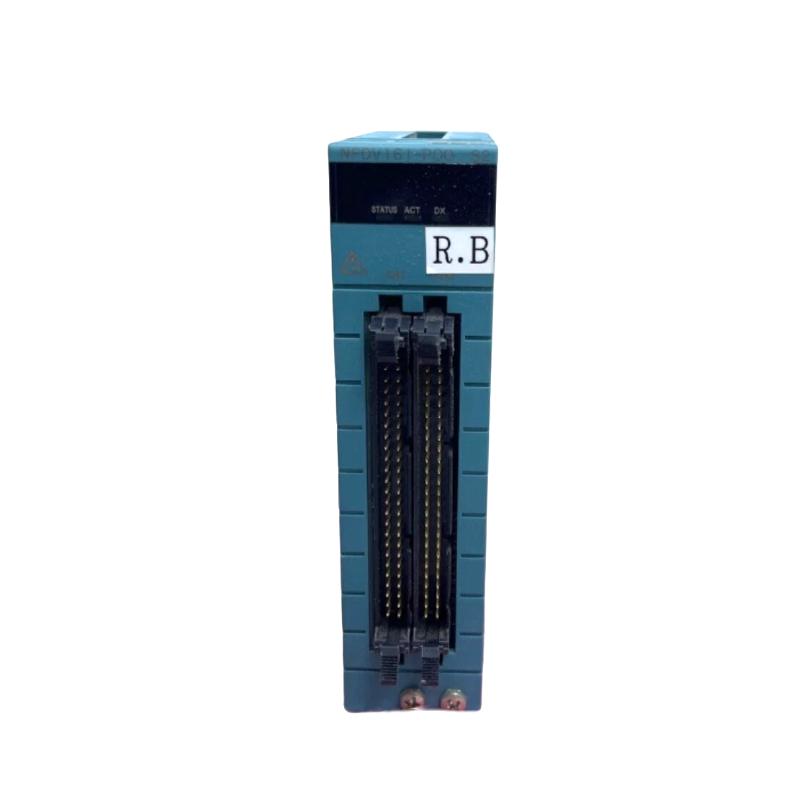

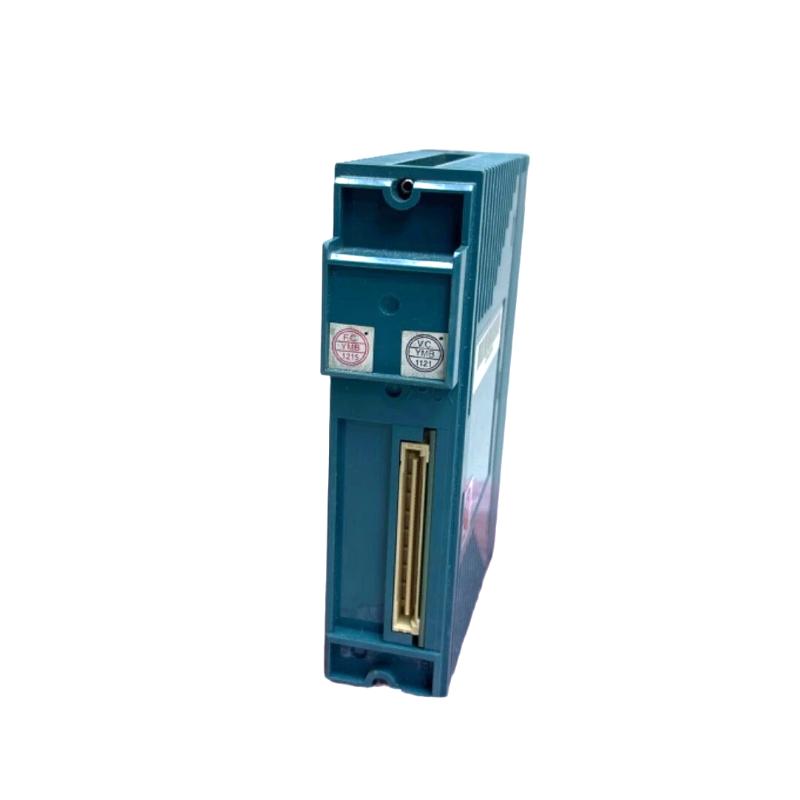

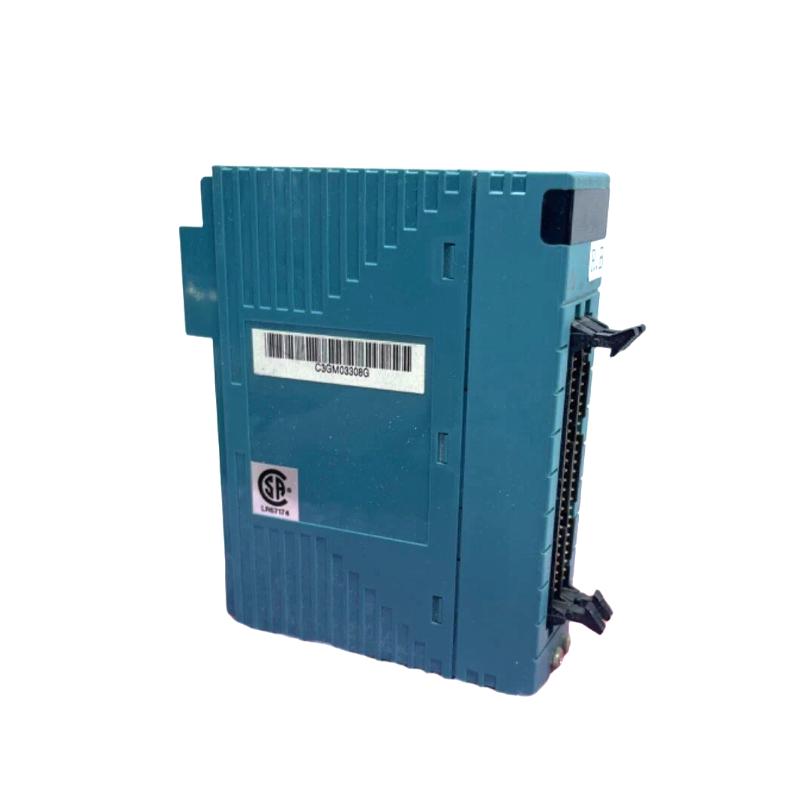

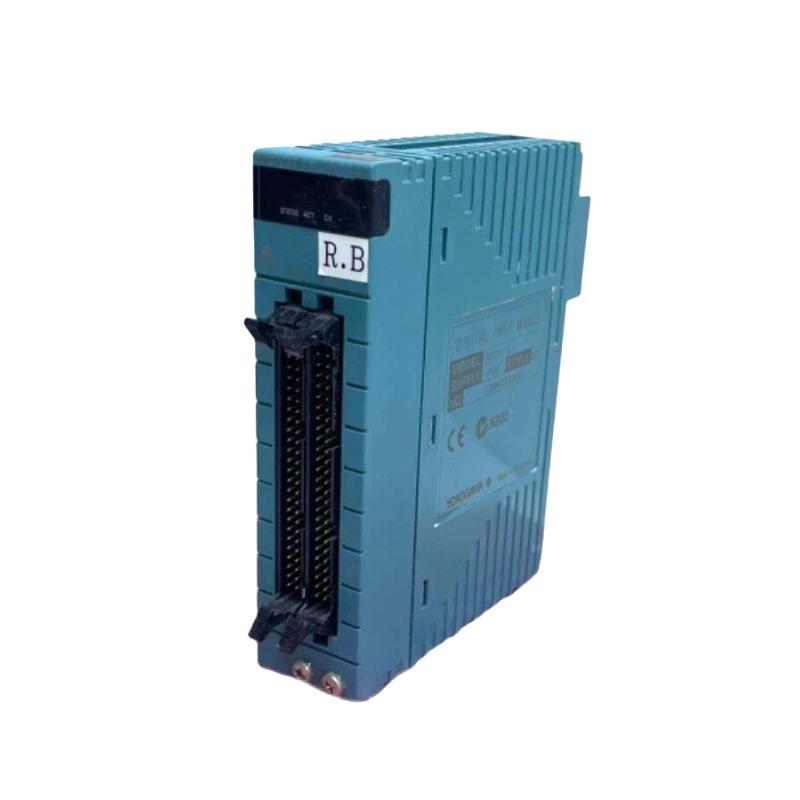

The Yokogawa NFDV161-P00 S2 is a 64-channel digital input module designed for the FCN / FCN-RTU / STARDOM distributed control system, providing highly reliable ON/OFF signal acquisition from field devices such as switches, sensors, interlocks, and relay contacts.
The S2 variant represents an enhanced system configuration level, typically used in projects requiring higher stability, stricter environmental adaptation, and improved system-level compatibility. It is especially suitable for large-scale industrial automation systems where maximum I/O density and long-term operational reliability are critical.
Technical Specifications (Industrial High-Density Digital Input Architecture)
| Parameter | Details |
|---|---|
| Model | NFDV161-P00 S2 |
| Brand | Yokogawa |
| Product Type | Digital Input Module |
| Channels | 64 channels |
| Input Signal | 24 V DC ON/OFF |
| Input Type | Sink / Source compatible |
| Input ON Voltage | 18 – 26.4 V DC |
| Input OFF Voltage | ≤ 5 V DC |
| Input Current | ~2.5 mA per channel |
| Max Input Voltage | 30 V DC |
| Isolation | Optocoupler isolation (field to system) |
| Withstanding Voltage | 2000 V AC (field to system) |
| Response Time | ≤ 10 ms |
| Max Switching Frequency | 25 Hz |
| Function Support | Status input / pushbutton input / edge detection |
| System Compatibility | FCN / FCN-RTU / STARDOM |
The NFDV161 series supports 64-channel 24 V DC digital input with fast response and high-density architecture, optimized for FCN autonomous controller systems.
Physical Dimensions & Weight
| Item | Specification |
|---|---|
| Dimensions (W × H × D) | 130 × 107.5 × 32.8 mm |
| Weight | ~0.30 kg |
