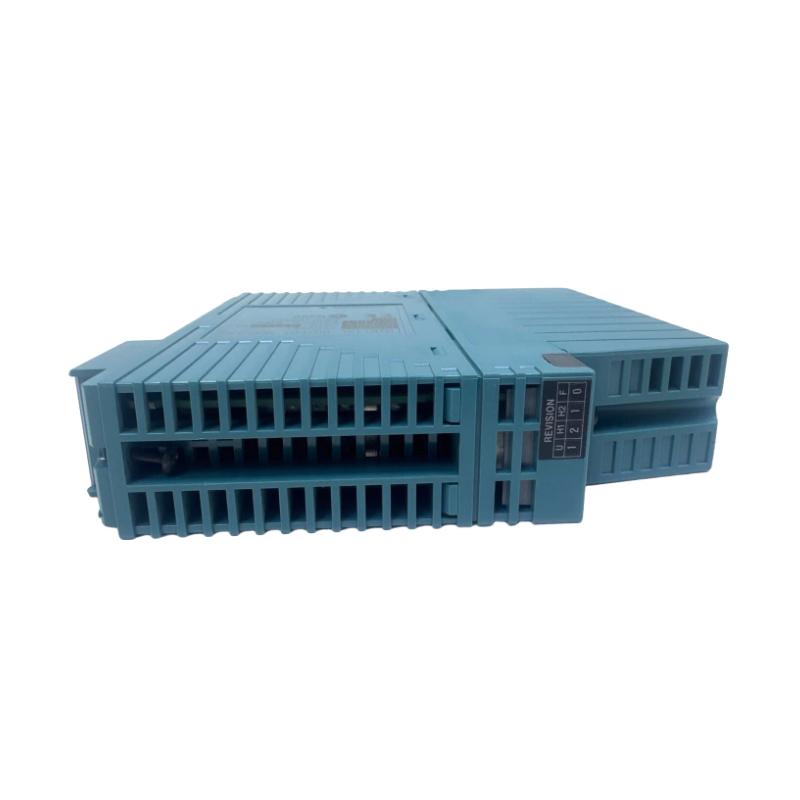

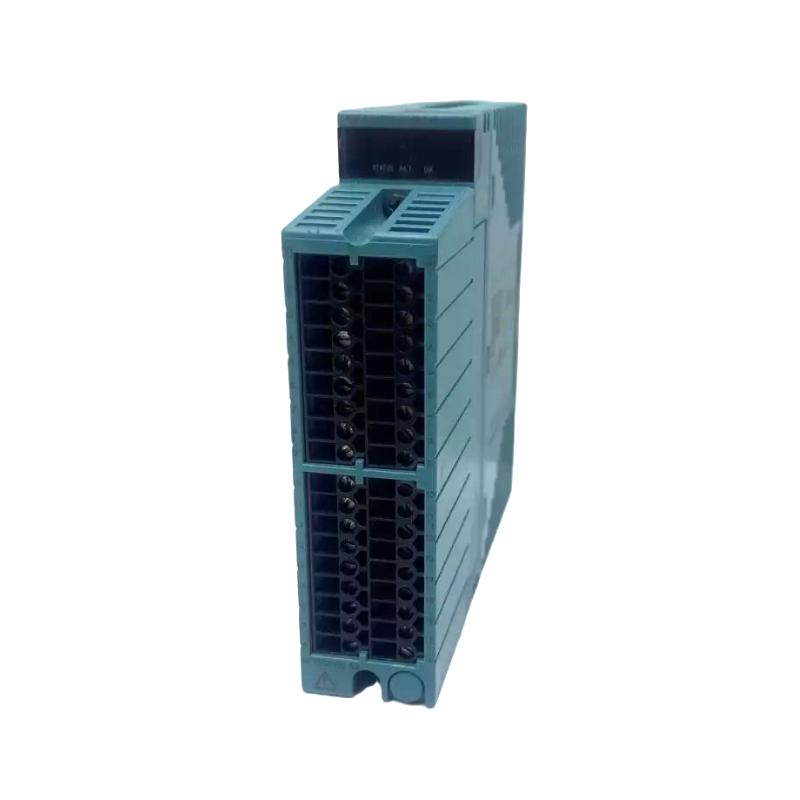

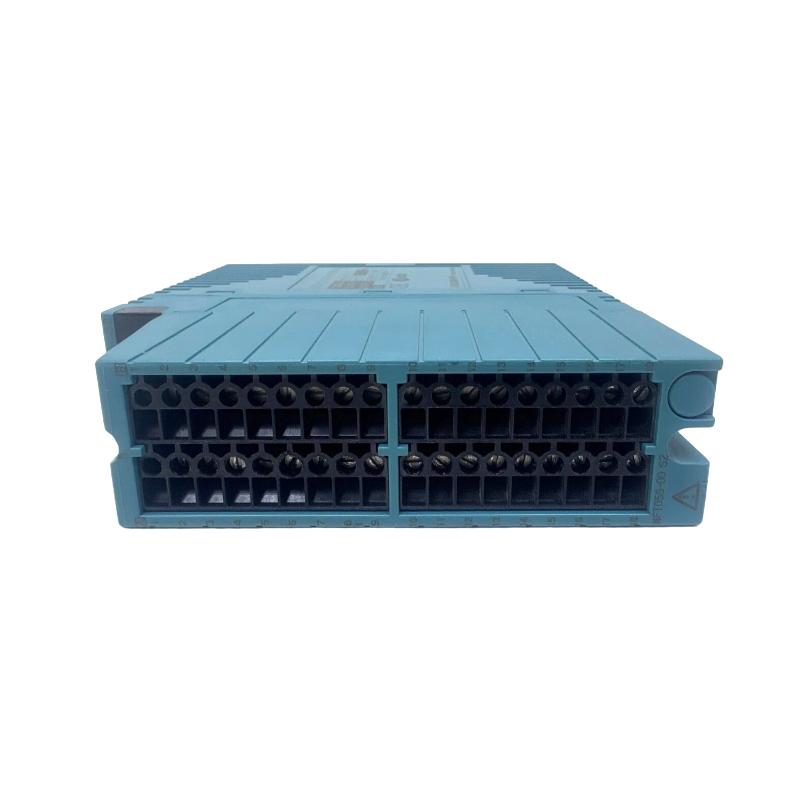

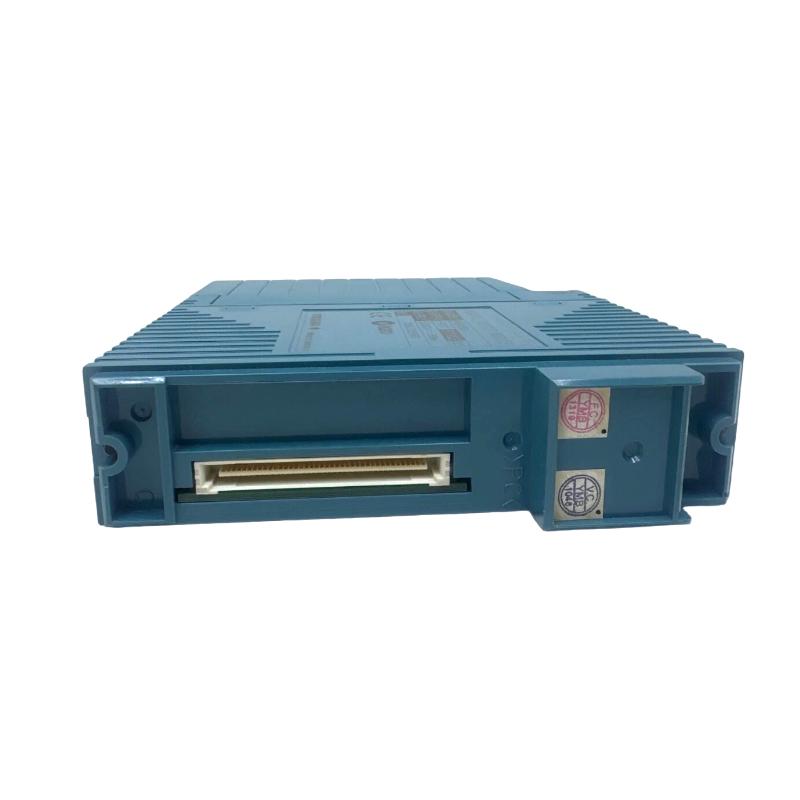

The Yokogawa NFDV551-P10 is a 32-channel digital output module designed for the FCN / FCN-RTU / STARDOM distributed control system, providing fast and reliable ON/OFF control signals for industrial field devices.
It is widely used to drive solenoid valves, relays, alarms, motor starters, and indicator systems, offering high-speed switching performance and strong electrical isolation. The P10 version is optimized for stable operation with built-in status indication and enhanced field usability, making it a strong choice for high-density automation cabinets.
Technical Specifications (Industrial Discrete Output Performance Module)
| Parameter | Details |
|---|---|
| Model | NFDV551-P10 |
| Brand | Yokogawa |
| Product Type | Digital Output Module |
| Channels | 32 channels |
| Output Type | Transistor (current sink) |
| Rated Output Voltage | 24 V DC |
| Operating Voltage Range | 20.4 – 26.4 V DC |
| Max Load Current | 100 mA per channel |
| Output ON Voltage Drop | ≤ 2 V DC |
| Output OFF Leakage | ≤ 0.1 mA |
| Isolation Strength | 2000 V AC (field to system) |
| Response Time | ≤ 3 ms |
| Channel Grouping | 16-channel common groups |
| Indicator | LED status display per channel |
The module delivers 32-channel isolated transistor outputs with fast switching (≤3 ms) and high noise immunity for industrial automation systems.
Physical Dimensions & Weight
| Item | Specification |
|---|---|
| Dimensions (W × H × D) | 32.8 × 107.5 × 130 mm |
| Weight | ~0.2 kg |
