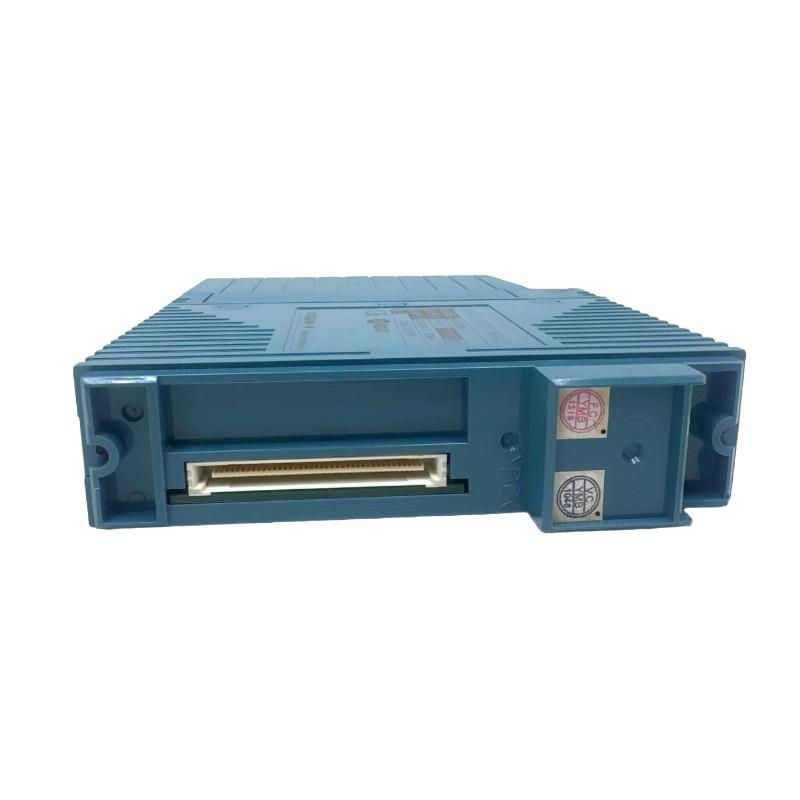

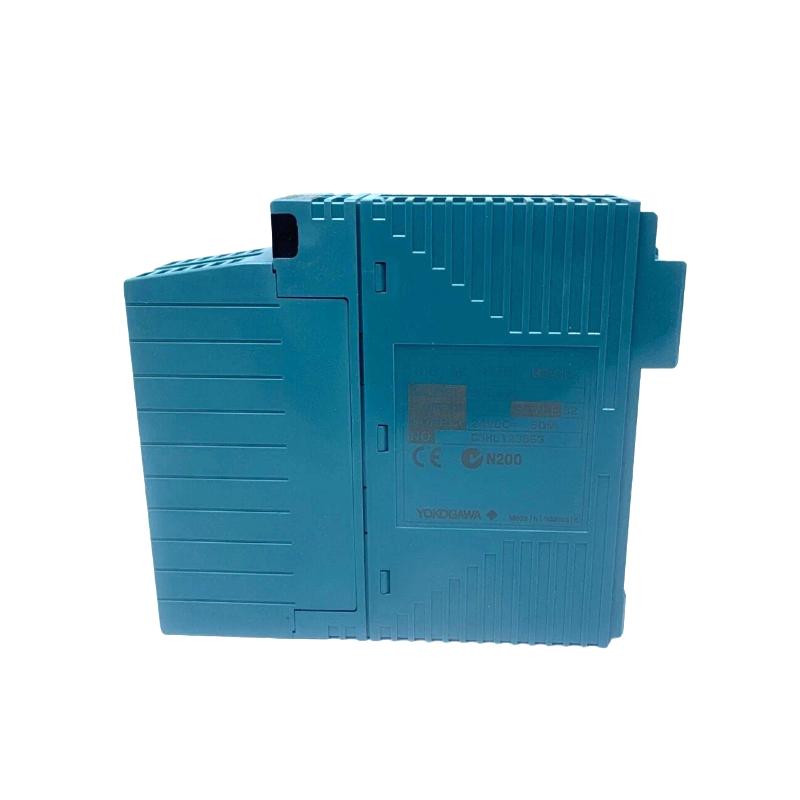

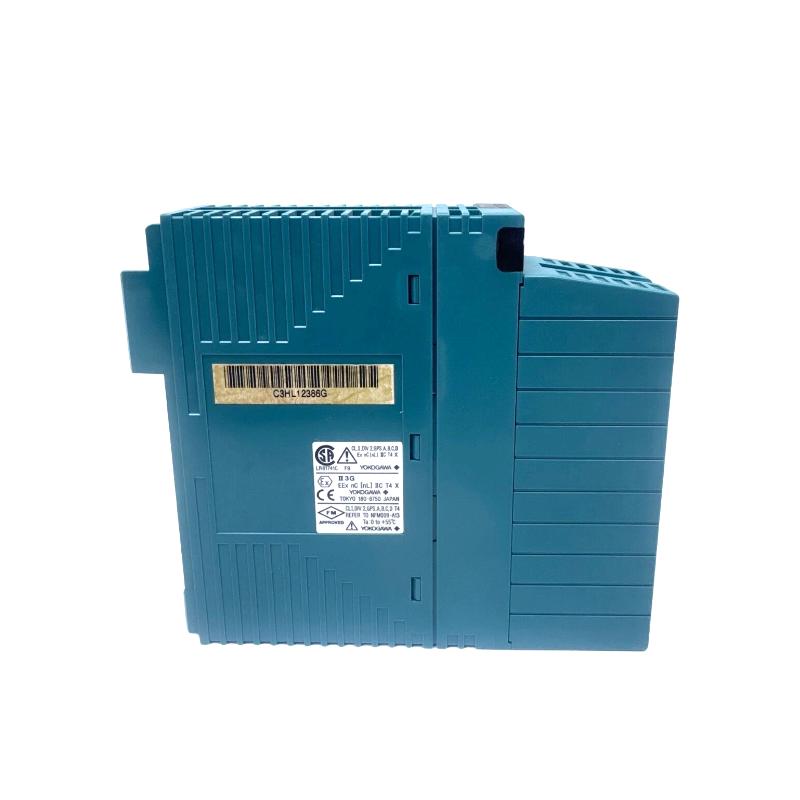

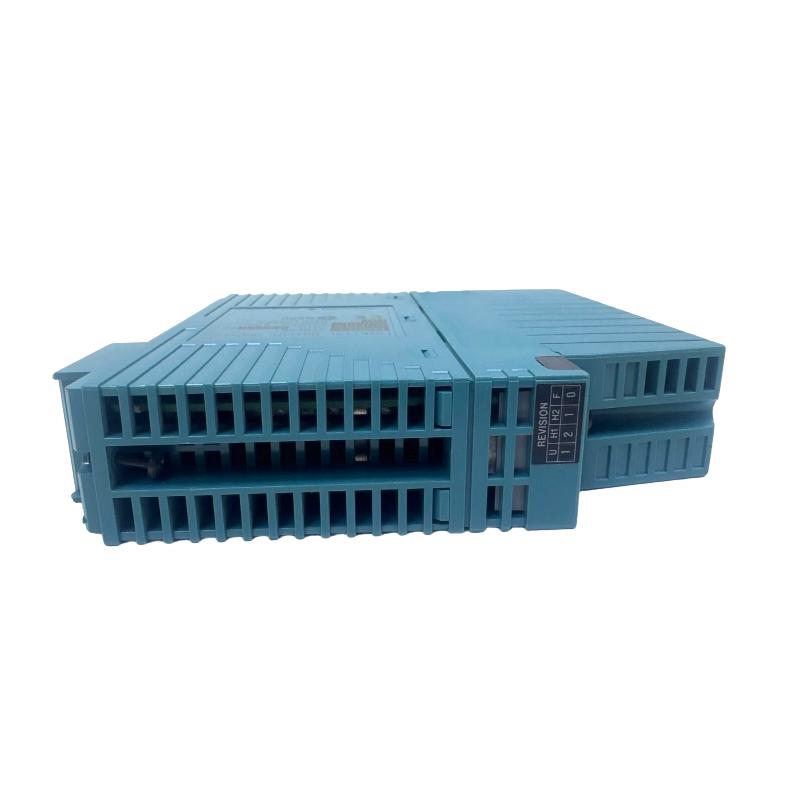

The Yokogawa NFDV551-P10 S2 is a high-density 32-channel digital output module designed for the FCN / FCN-RTU / STARDOM distributed control system, providing reliable ON/OFF signal output for industrial field devices such as solenoid valves, relays, alarms, and actuator systems.
The S2 version is generally recognized as an enhanced configuration level, optimized for higher system stability, improved compatibility, and reinforced industrial robustness in demanding automation environments. It is widely used in oil & gas, petrochemical, power generation, and large-scale SCADA systems, where continuous and deterministic control is required.
Technical Specifications (Industrial Digital Output Performance Module)
| Parameter | Details |
|---|---|
| Model | NFDV551-P10 S2 |
| Brand | Yokogawa |
| Product Type | Digital Output Module |
| Channels | 32 channels |
| Output Type | Transistor (current sink) |
| Rated Output Voltage | 24 V DC |
| Operating Range | 20.4 – 26.4 V DC |
| Max Load Current | 100 mA per channel |
| Output ON Voltage Drop | ≤ 2 V DC |
| Output OFF Leakage | ≤ 0.1 mA |
| Isolation Strength | 2000 V AC (field to system) |
| Response Time | ≤ 3 ms |
| Channel Grouping | 16-channel common groups |
| Function | ON/OFF control, actuator driving, relay control |
| System Compatibility | FCN / FCN-RTU / STARDOM |
The NFDV551 series provides fast switching digital outputs with high-density channel architecture and strong electrical isolation for industrial automation systems.
Physical Dimensions & Weight
| Item | Specification |
|---|---|
| Dimensions (W × H × D) | 32.8 × 107.5 × 130 mm |
| Weight | ~0.2 kg |
