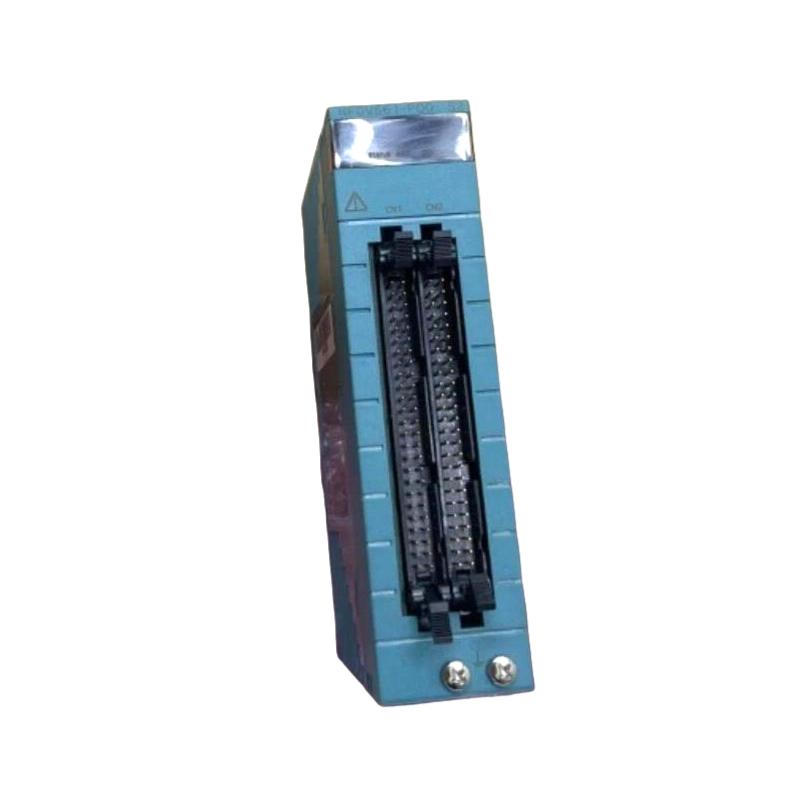

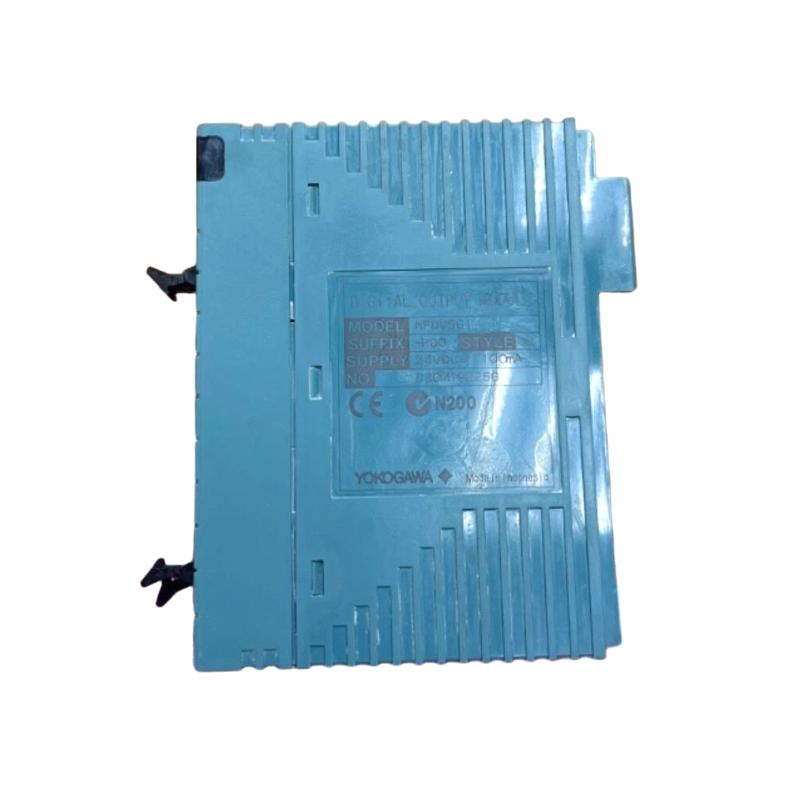

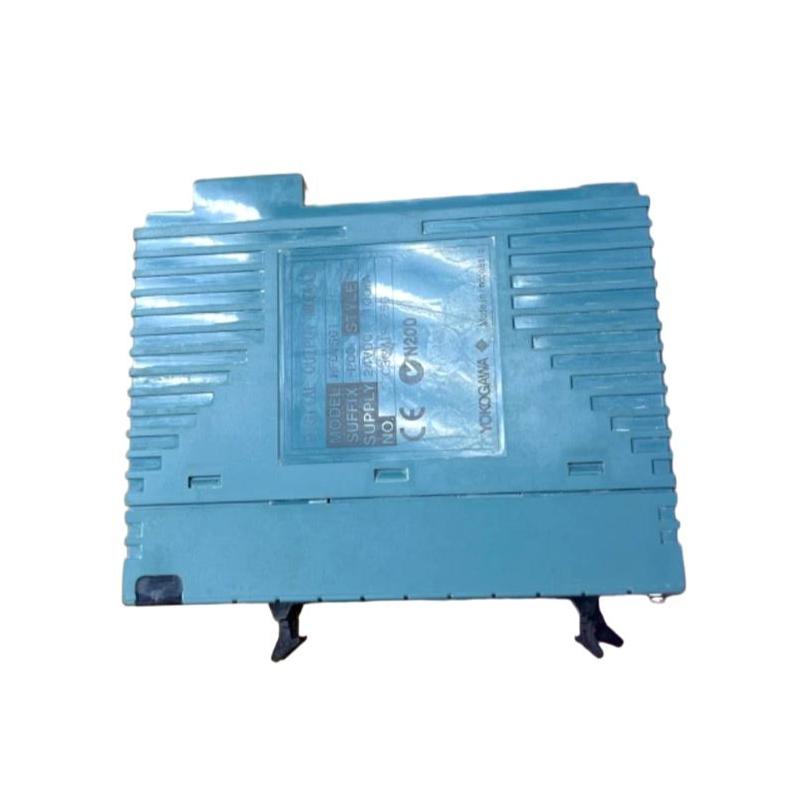

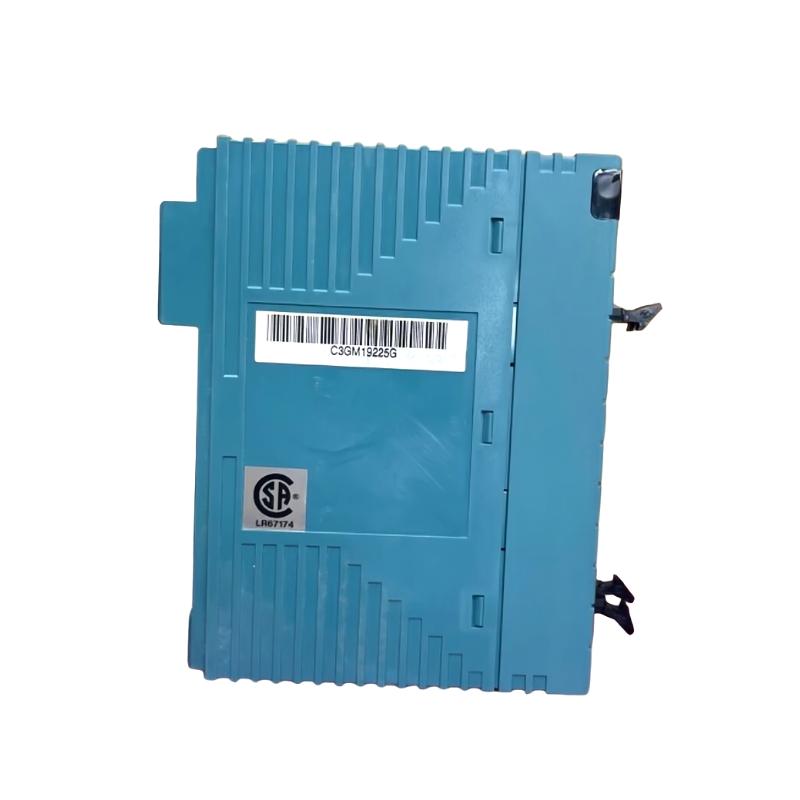

The Yokogawa NFDV561-P00 is a high-density digital output module designed for the FCN / FCN-RTU / STARDOM distributed control system, delivering reliable ON/OFF control signals for industrial field devices such as solenoid valves, relays, alarms, and actuators.
This module is engineered for large-scale automation environments, offering up to 64-channel transistor outputs with fast switching performance and strong electrical isolation. It is widely applied in oil & gas, petrochemical, power generation, and SCADA systems, where stable and deterministic output control is essential.
Technical Specifications (Industrial High-Density Output Architecture)
| Parameter | Details |
|---|---|
| Model | NFDV561-P00 |
| Brand | Yokogawa |
| Product Type | Digital Output Module |
| Channels | 64 channels |
| Output Type | Transistor (current sink) |
| Rated Output Voltage | 24 V DC |
| Load Voltage Range | 20.4 – 26.4 V DC |
| Max Load Current | 100 mA per channel |
| Output OFF Leakage | ≤ 0.1 mA |
| Output ON Voltage Drop | ≤ 2 V DC |
| Isolation | Optocoupler isolation (field to system) |
| Withstand Voltage | 2000 V AC |
| Response Time | ≤ 3 ms |
| Output Configuration | Common sink type |
| System Compatibility | FCN / FCN-RTU / STARDOM |
Physical Dimensions & Weight
| Item | Specification |
|---|---|
| Dimensions (W × H × D) | 130 × 107.5 × 32.8 mm |
| Weight | ~0.3 kg |
Some supplier data may vary slightly (0.25–0.3 kg depending on revision and packaging).
