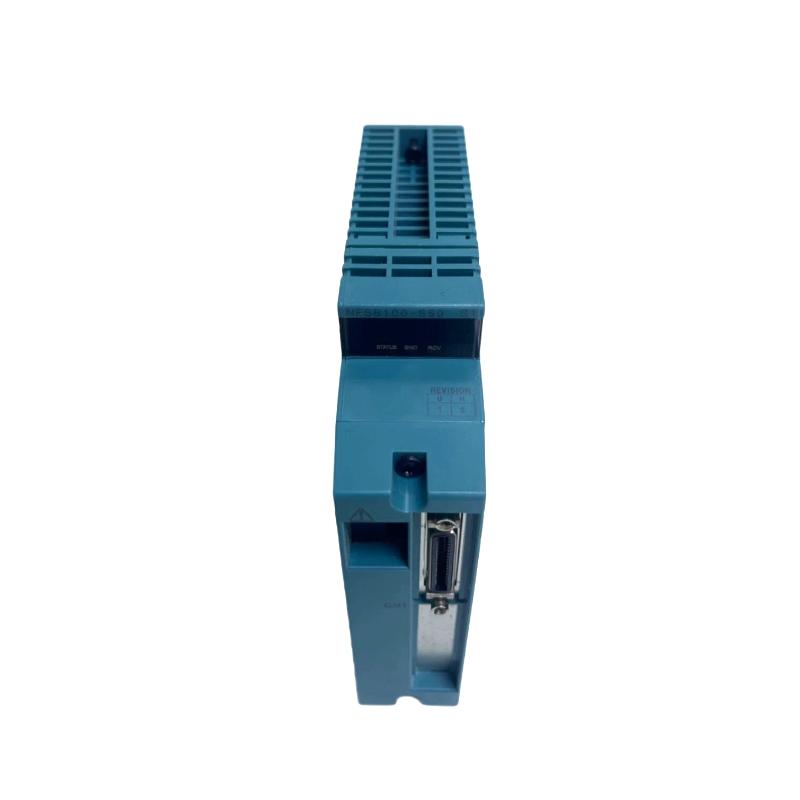

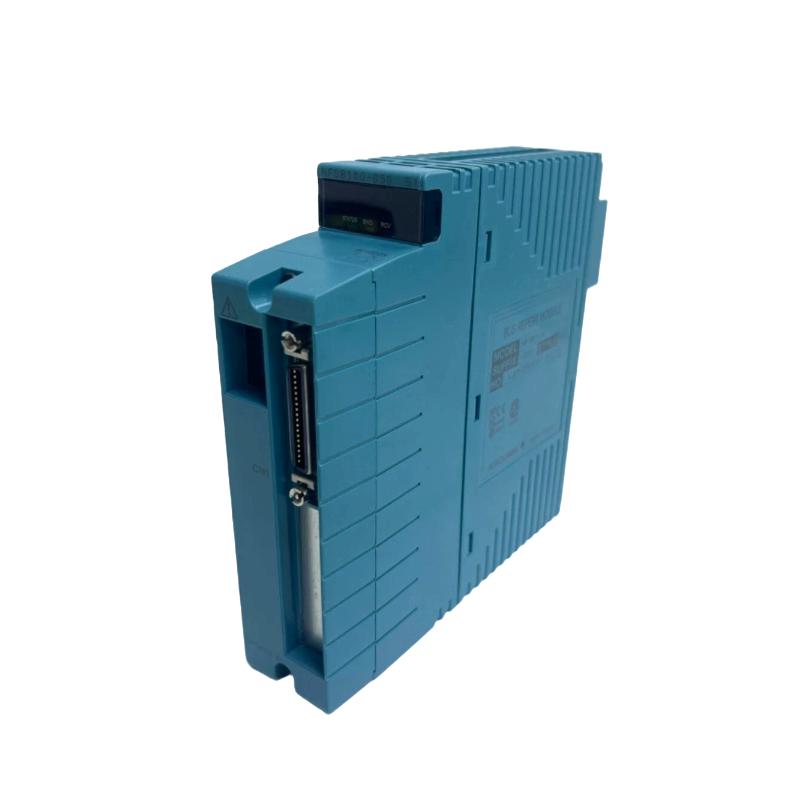

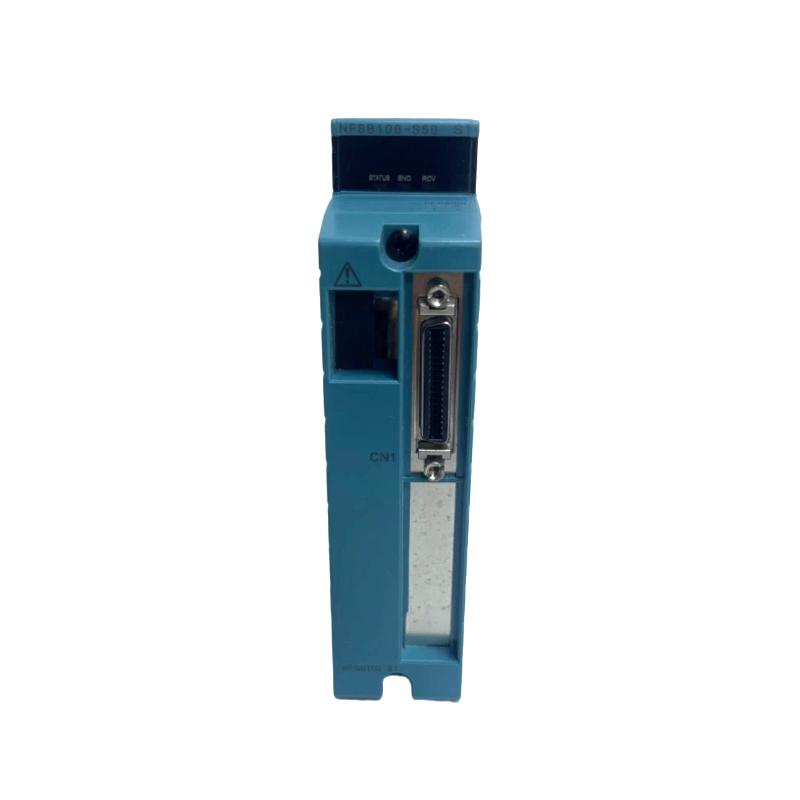

The Yokogawa NFSB100-S50 is a SB bus repeat module designed for the FCN / FCN-RTU / STARDOM autonomous control system, used to extend and stabilize internal SB bus communication between controllers and distributed I/O stations.
In large industrial automation systems, signal attenuation and distance limitations can affect communication reliability. This module solves that challenge by regenerating and amplifying SB bus signals, ensuring stable data transmission across extended system architectures.
It is widely used in oil & gas, petrochemical plants, power generation facilities, and large SCADA networks, where long-distance distributed control and high system availability are required.
Technical Specifications (Industrial SB Bus Communication Repeater)
| Parameter | Details |
|---|---|
| Model | NFSB100-S50 |
| Brand | Yokogawa |
| Product Type | SB Bus Repeat Module |
| Function | Signal regeneration / bus extension |
| System Platform | FCN / FCN-RTU / STARDOM |
| Communication Bus | SB Bus (internal system bus) |
| Transmission Role | Extends communication distance between CPU and I/O nodes |
| Interface | Multi-segment SB bus connection |
| Power Supply | 24 V DC (system dependent) |
| Power Consumption | ~3 W |
| Redundancy Support | Supported in duplex system architecture |
| Mounting Type | DIN rail / panel mounting |
| Protection Class | IP20 |
The NFSB100-S50 is designed to extend SB bus communication distance and improve signal integrity in Yokogawa STARDOM FCN distributed control systems.

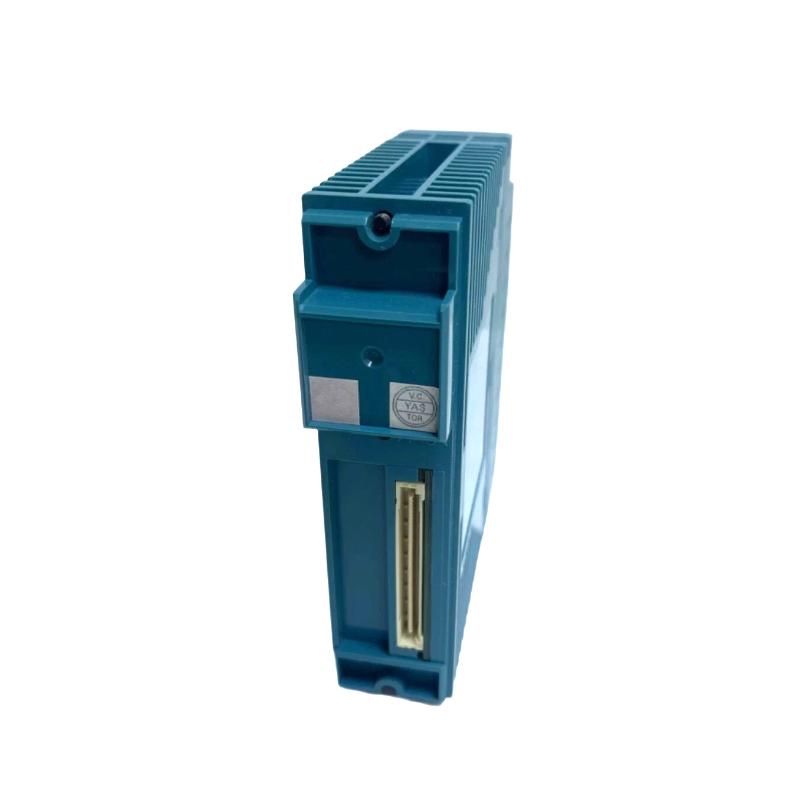

Physical Dimensions & Weight
| Item | Specification |
|---|---|
| Dimensions (W × H × D) | 32.8 × 130 × 142.5 mm |
| Weight | ~0.4 kg |
Weight and size may slightly vary depending on revision and configuration.
