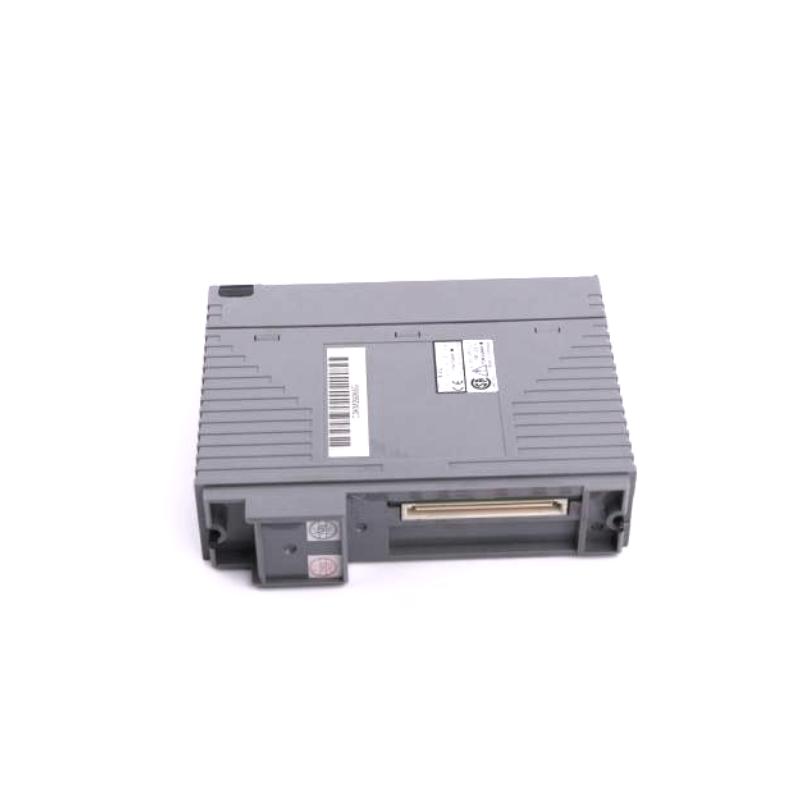

The Yokogawa ADV541 is a 16-channel digital output module designed for Yokogawa CENTUM VP / CENTUM CS 3000 Distributed Control Systems (DCS).
It is used to convert control system logic signals into ON/OFF outputs for field devices such as solenoid valves, relays, alarms, motor starters, and other actuator equipment. The module ensures stable, fast, and safe signal transmission in mission-critical industrial automation environments.
The ADV541 is widely applied in oil & gas, petrochemical, power generation, and chemical industries, where reliable digital output control is essential for safe plant operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Yokogawa |
| Model | ADV541 |
| Product Type | Digital Output Module |
| System Compatibility | CENTUM VP / CENTUM CS 3000 |
| Output Channels | 16 channels |
| Output Type | 24 V DC digital output |
| Output Format | Current source / ON-OFF control |
| Load Capacity | Up to 0.2 A per channel |
| Total Load | Up to 3.2 A total |
| Response Time | ≤ 30 ms |
| Isolation | Channel-to-system isolation |
| External Power Supply | 24 V DC (±20%) |
| Power Consumption | ~300 mA (5 V DC system side) |
| Operating Temperature | -20°C to +70°C |
ADV541 is part of Yokogawa’s FIO (Field Input/Output) digital I/O module family used in DCS architectures.
Physical Characteristics
| Item | Specification |
|---|---|
| Dimensions (L × W × H) | 130 × 127.2 × 32.8 mm |
| Weight | ~0.4 kg |
| Mounting Type | Rack-mounted DCS I/O slot |
| Form Factor | Industrial I/O module |
