The Yokogawa AIP830 is a single-loop operation keyboard (operator interface station) designed for Yokogawa CENTUM VP / CENTUM CS 3000 Distributed Control Systems (DCS).
Unlike typical I/O modules, the AIP830 is a human–machine interface (HMI) device, used by plant operators to directly interact with process control systems. It provides dedicated function keys, alarm handling, parameter adjustment, and process navigation for efficient plant operation.
This device is widely used in oil & gas, petrochemical, chemical, and power generation plants, where operators require fast and reliable access to control functions in real-time.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Yokogawa |
| Model | AIP830 |
| Product Type | Single-loop Operation Keyboard / Operator Interface |
| System Compatibility | CENTUM VP / CENTUM CS 3000 |
| Function | Process operation, alarm handling, parameter control |
| Interface | USB (dual USB-A ports) |
| Power Supply | 5 V DC (via USB) |
| Power Consumption | Max 1 A |
| Function Keys | 64 user-definable function keys |
| Alarm Functions | Buzzer + audio speaker support |
| Control Features | Mode switch, alarm acknowledge, navigation keys |
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 20%–80% RH (non-condensing) |
The AIP830 is designed as a dedicated operator keyboard for Yokogawa Desktop HIS systems and enables efficient plant operation and monitoring.
Physical Characteristics
| Item | Specification |
|---|---|
| Dimensions (W × D × H) | 500 × 225 × ~44 mm |
| Weight | Approx. 2.0–2.5 kg |
| Tilt Angle | ~7° ergonomic design |
| Form Factor | Flat industrial keyboard unit |
| Installation | Desktop HIS workstation integration |
Recommended Related Models
- Yokogawa AIP830-111 – enhanced variant with expanded I/O functions
- Yokogawa CENTUM VP HIS station – operator workstation system
- Yokogawa AIP801 / AIP821 – earlier operator interface keyboards
- Yokogawa ADV / AAI I/O modules – backend DCS signal modules
- Yokogawa ENG / HIS console systems – full operator station solutions
Popular Yokogawa Models
- Yokogawa AIP830 – single-loop operator keyboard
- Yokogawa AIP830-111 – extended function variant
- Yokogawa CENTUM VP – distributed control system platform
- Yokogawa AAI141 – analog input module

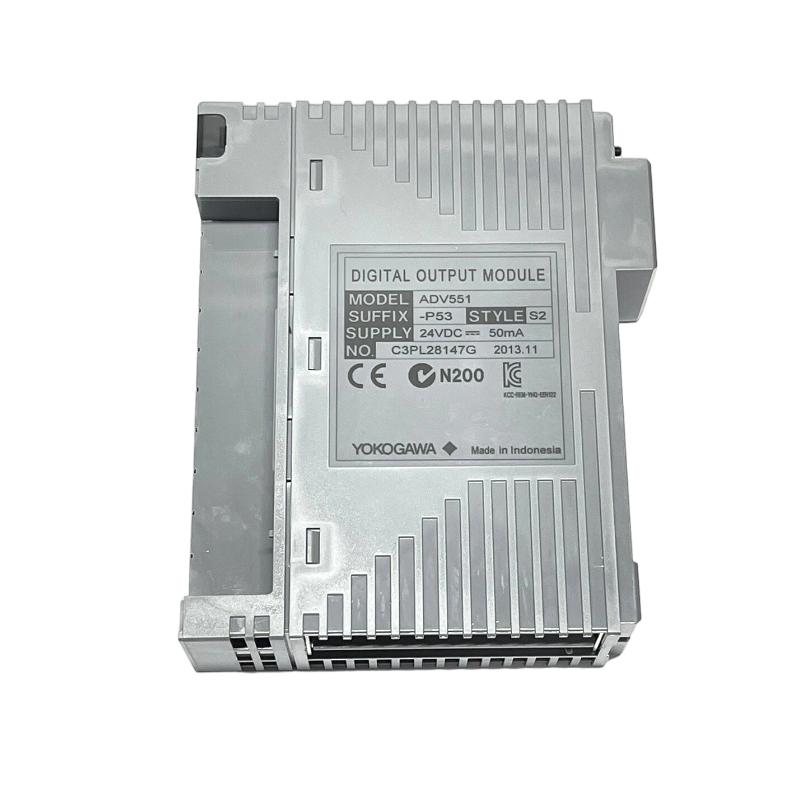

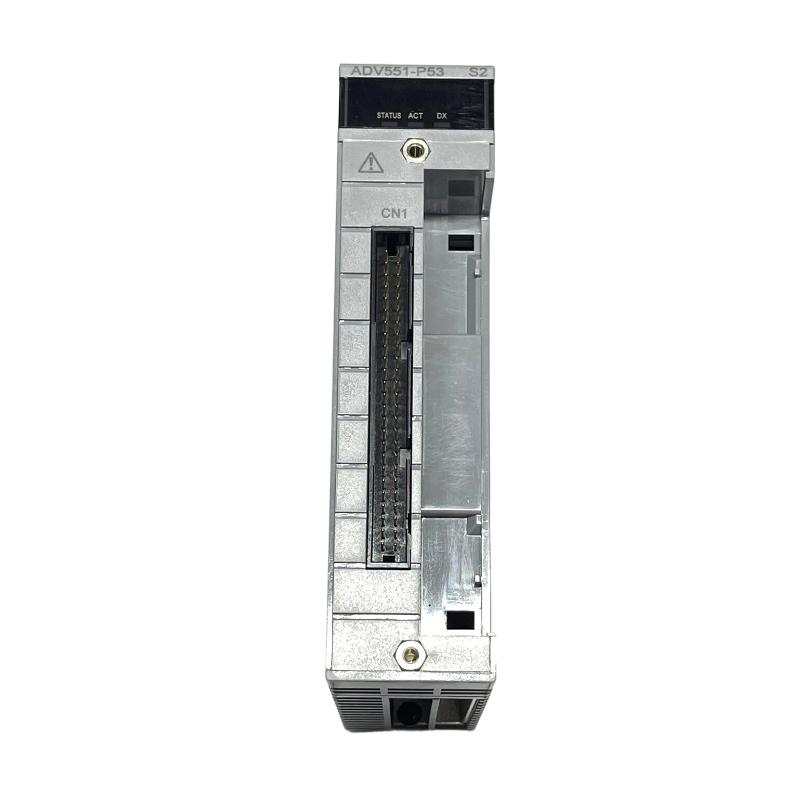

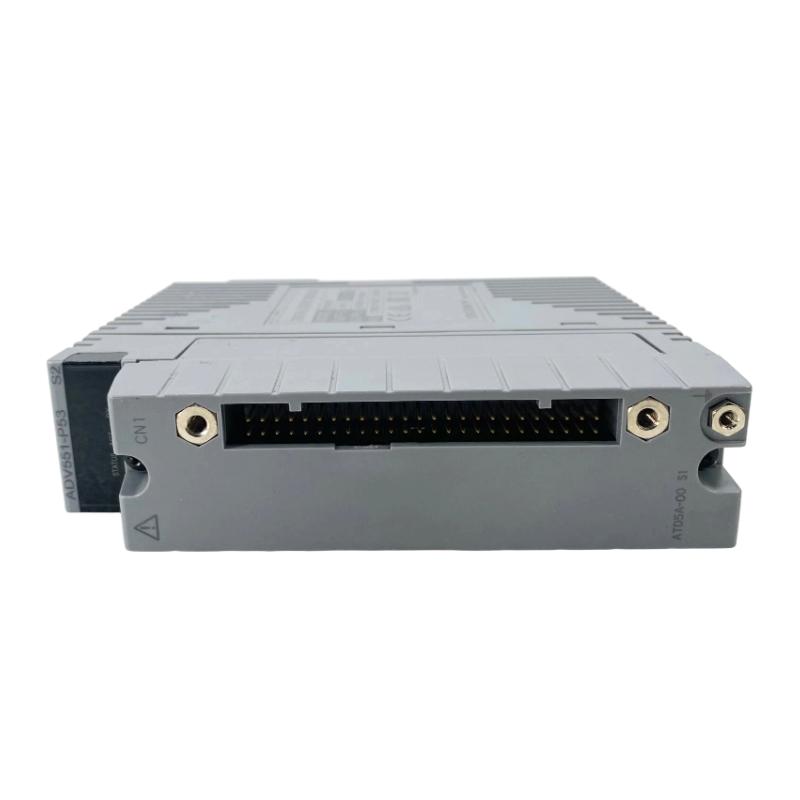

- Yokogawa ADV551 – digital output module
