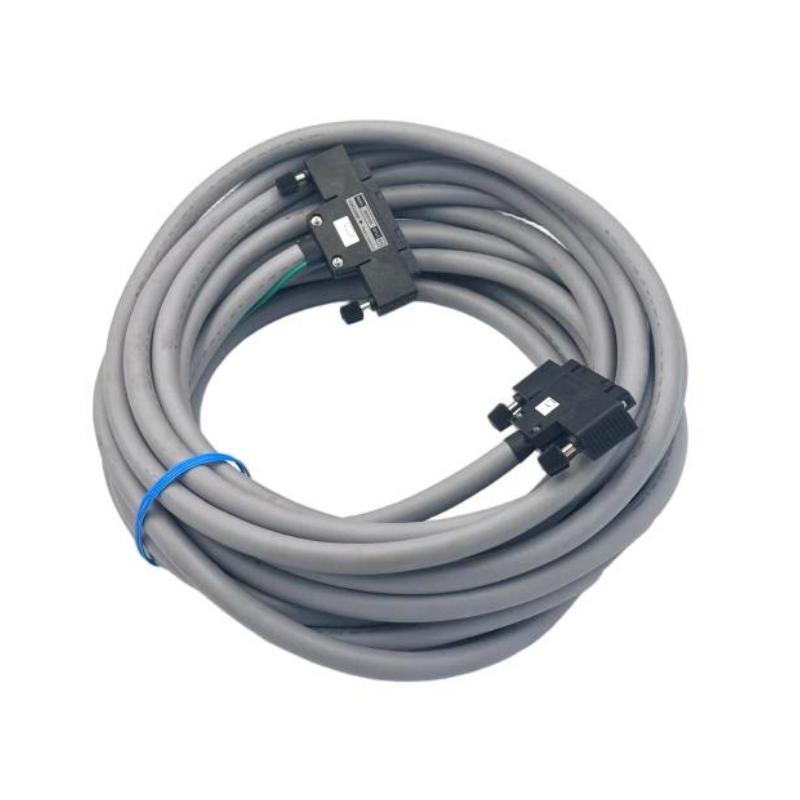

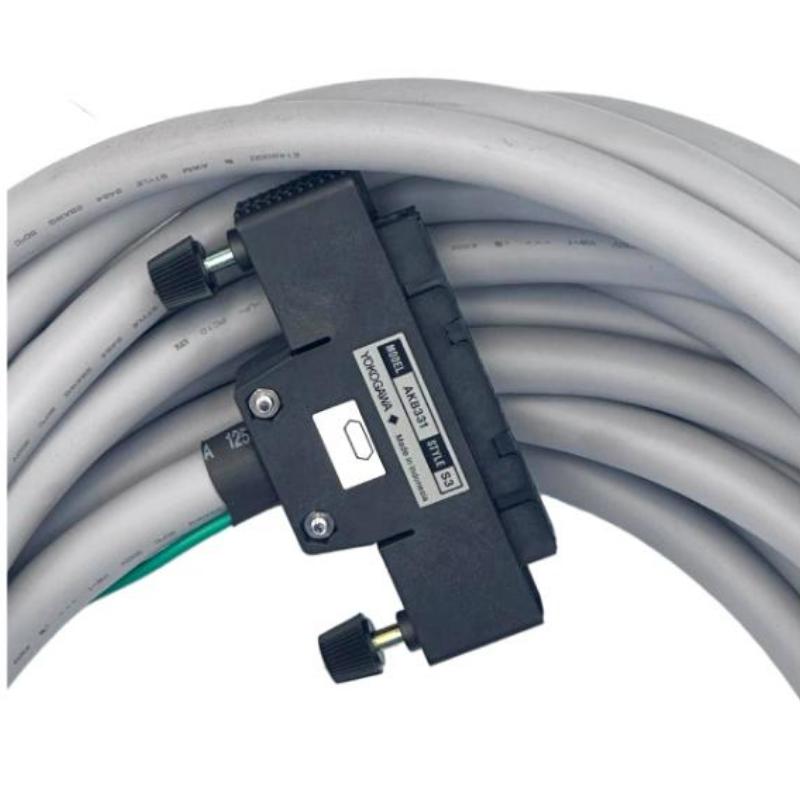

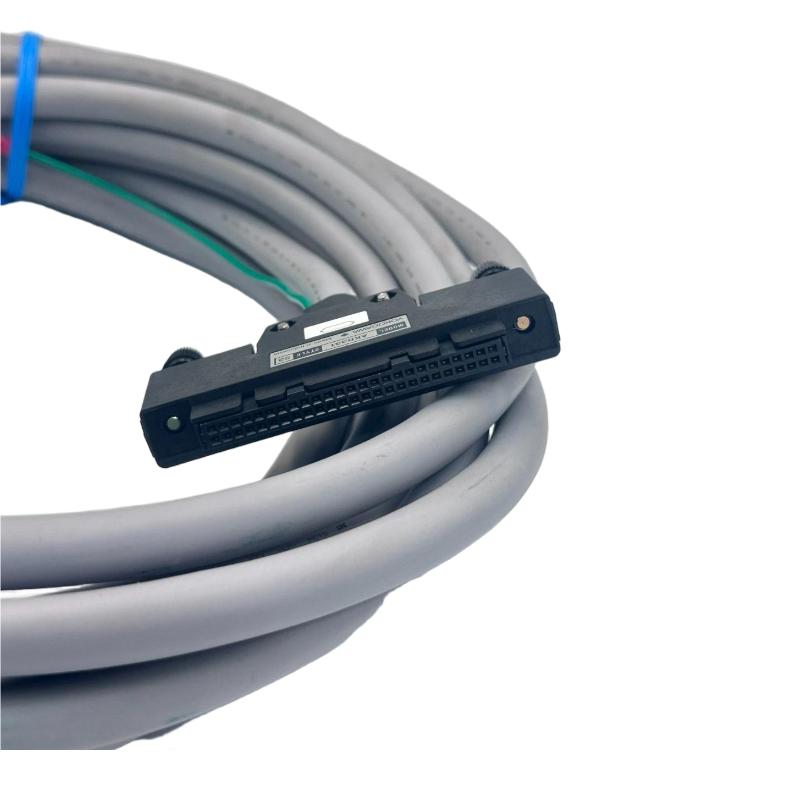

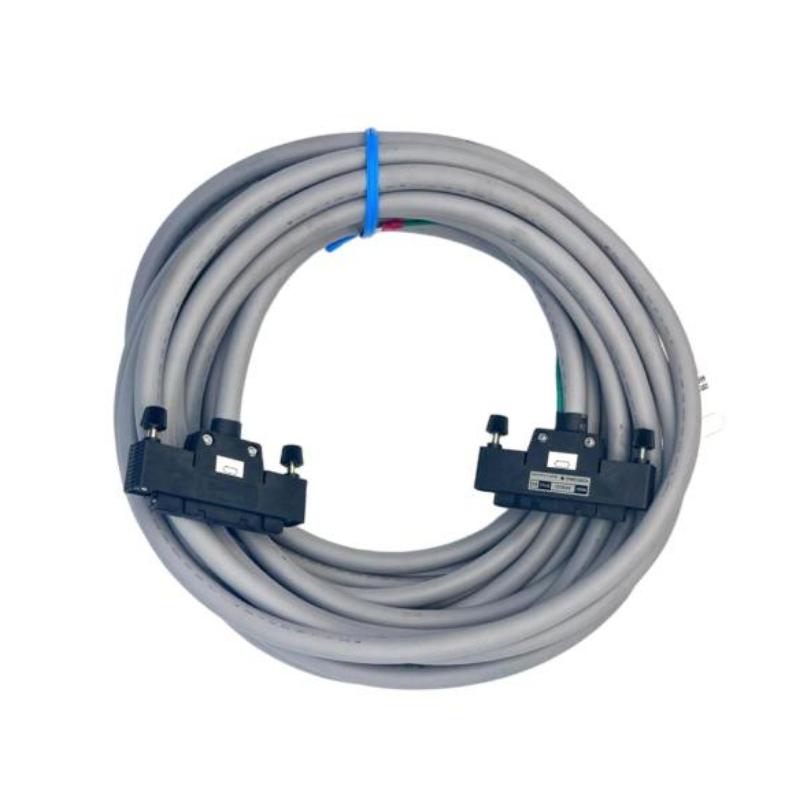

The Yokogawa AKB331-M005 is a 50-pin signal interconnection cable designed for Yokogawa CENTUM VP / CENTUM CS 3000 and ProSafe-RS systems.
It provides reliable, high-integrity signal transmission between I/O modules and terminal boards, making it an essential component in DCS cabinet wiring. Built with industrial-grade shielding and precision connectors, the AKB331-M005 ensures stable communication in environments where signal accuracy and system uptime are critical.
This model is part of the AKB331 cable family, widely used across process industries for consistent and standardized I/O connectivity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Yokogawa |
| Model | AKB331-M005 |
| Product Type | Signal Cable (50-pin to 50-pin) |
| Cable Length | 5 meters |
| Connector Type | 50-pin industrial connectors (both ends) |
| Compatible Modules | SDV144, SDV531, SDV53A, SDV541, SAT145 |
| System Compatibility | CENTUM VP / CS 3000 / ProSafe-RS |
| Signal Type | Digital / analog I/O transmission |
| Shielding | EMI-shielded industrial cable |
| Operating Temperature | -20°C to +70°C |
| Minimum Bending Radius | Approx. 100 mm |
The cable is specifically designed for module-to-terminal board connections, ensuring stable data transmission in industrial automation systems .
Technical Dimensions (mm)
| Item | Specification |
|---|---|
| Dimensions (L × W × H) | 5000 × 42 × 92 mm |
| Cable Length | 5000 mm (5 m) |
| Connector Width | ~42 mm |
| Connector Height | ~92 mm |
| Weight | Approx. 1.5 – 2.5 kg |
The connector profile dimensions (42 mm / 92 mm) are based on Yokogawa standard AKB331 cable drawings .
Length tolerance follows industrial cable standards (+3% or +1 m max) .
