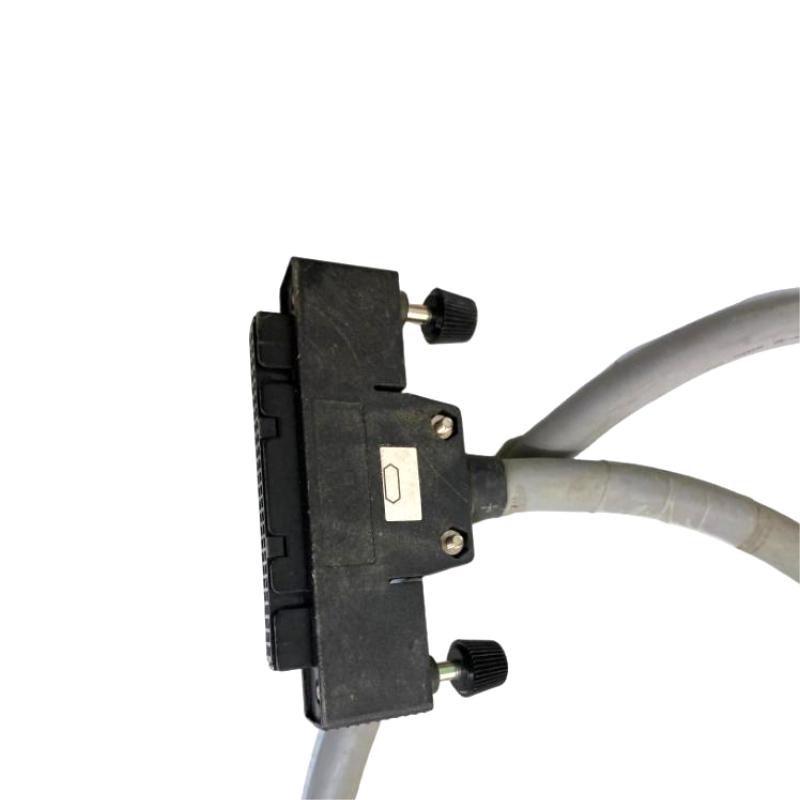

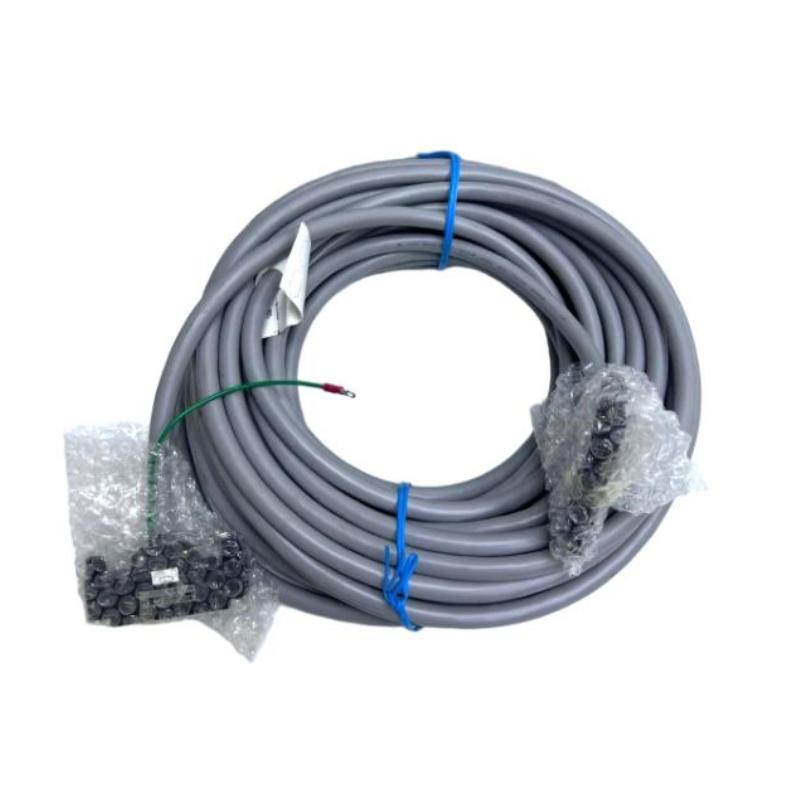

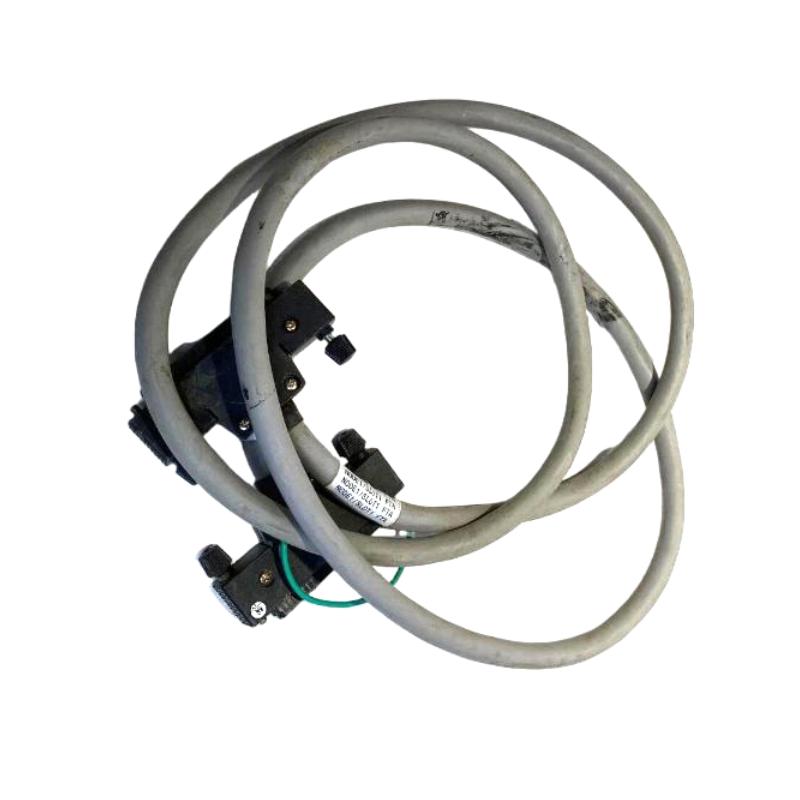

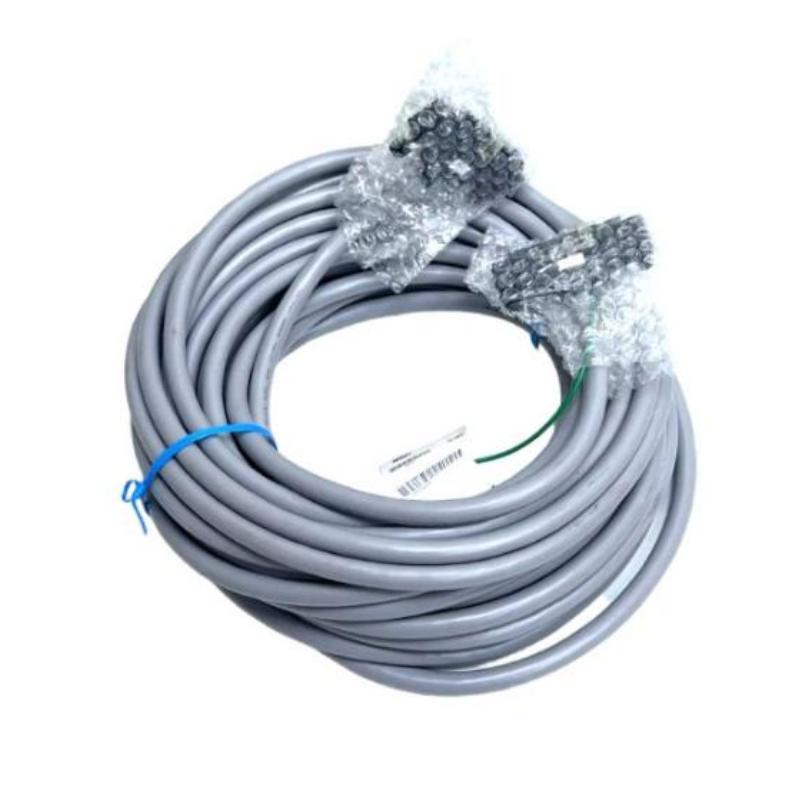

The Yokogawa AKB331-M007 is a 50-pin industrial signal interconnection cable designed for Yokogawa CENTUM VP / CENTUM CS 3000 and ProSafe-RS systems.
It is used to establish stable, high-integrity connections between I/O modules and terminal boards, ensuring reliable data transmission within DCS cabinets. With industrial-grade shielding and robust connector design, this cable supports noise-resistant communication and long-term operational stability in critical process environments.
The “M007” designation indicates a 7-meter cable length, making it suitable for medium-distance cabinet routing and structured wiring layouts.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Yokogawa |
| Model | AKB331-M007 |
| Product Type | Signal Cable (50-pin to 50-pin) |
| Cable Length | 7 meters |
| Connector Type | 50-pin industrial connectors |
| Signal Type | Digital / analog I/O transmission |
| Shielding | EMI-protected industrial shielding |
| Compatible Systems | CENTUM VP / CS 3000 / ProSafe-RS |
| Bus Compatibility | V net, ESB bus, ER bus, RIO bus |
| Operating Temperature | -20°C to +70°C |
| Minimum Bending Radius | Approx. 100 mm |
The cable is specifically designed for I/O module to terminal board connectivity, ensuring reliable signal transmission in industrial automation systems .
Physical Characteristics
| Item | Specification |
|---|---|
| Dimensions (L × W × H) | 7000 × 42 × 92 mm |
| Cable Length | 7000 mm (7 m) |
| Connector Width | ~42 mm |
| Connector Height | ~92 mm |
| Weight | Approx. 1.5 – 2.5 kg (typical industrial cable range) |
| Construction | Multi-core shielded cable with molded connectors |
Note: Width and height refer to connector profile; cable diameter may vary slightly depending on batch and shielding design.
