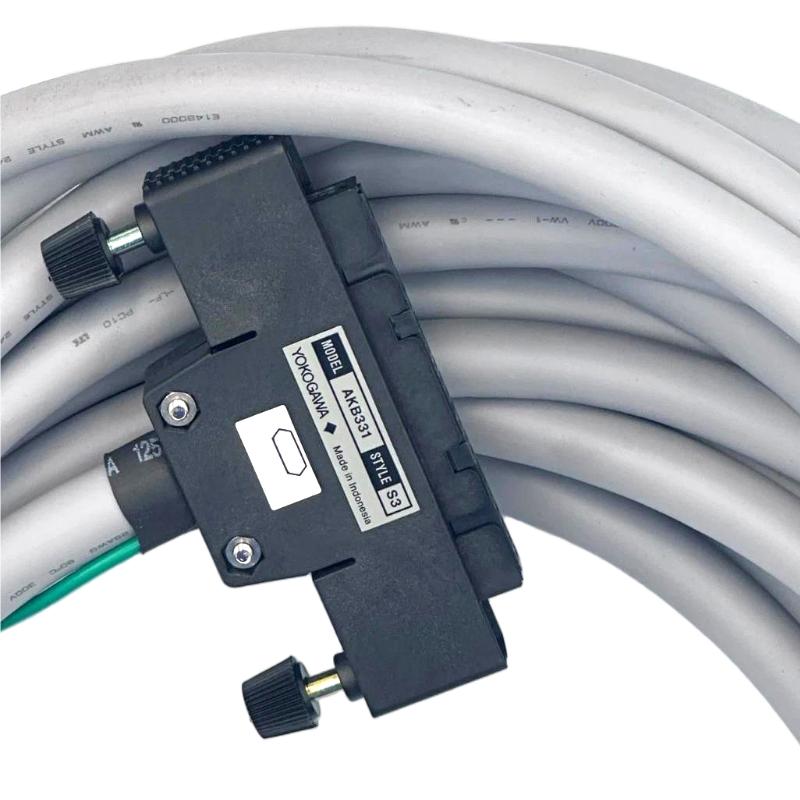

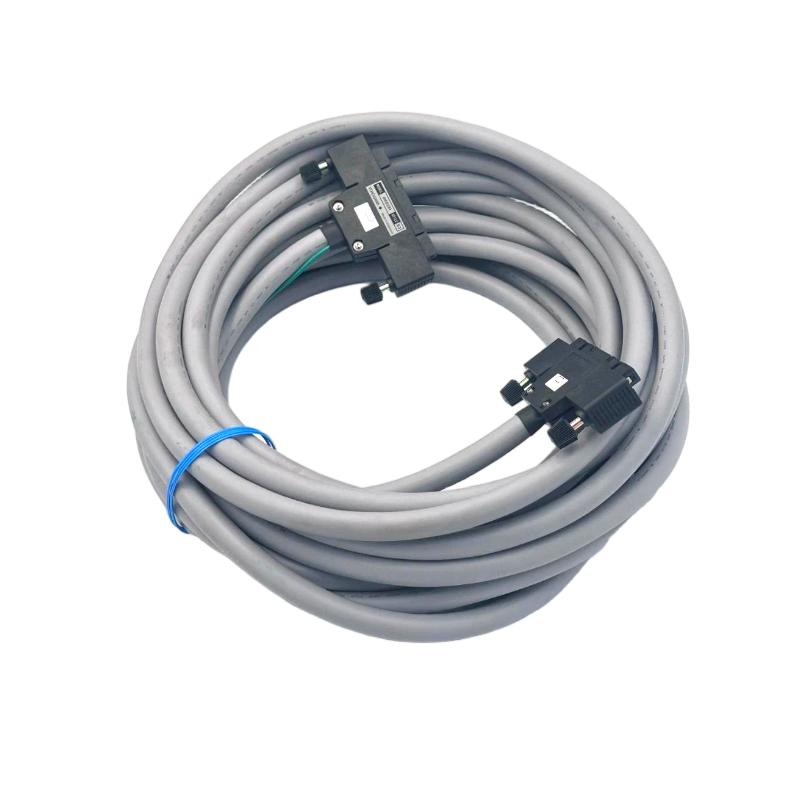

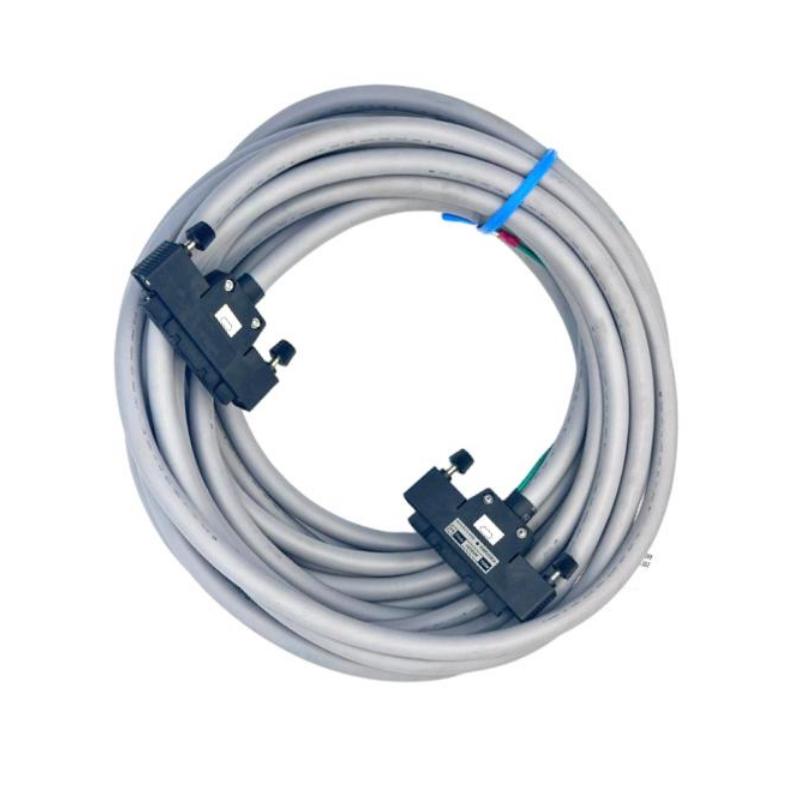

The Yokogawa AKB331-M015 S3 is a 15-meter industrial signal cable designed for Yokogawa CENTUM VP / CENTUM CS 3000 and ProSafe-RS systems.
As part of the AKB331 series, this cable provides high-reliability interconnection between I/O modules and terminal boards, ensuring stable signal transmission in critical automation environments. The “S3” suffix typically indicates a specific configuration or material/connector revision tailored for certain system requirements.
With extended length capability, the AKB331-M015 S3 is ideal for large cabinet layouts or cross-panel wiring, while maintaining signal integrity and minimizing electromagnetic interference.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Yokogawa |
| Model | AKB331-M015 S3 |
| Product Type | Signal Cable (50-pin interconnect) |
| Cable Length | 15 meters |

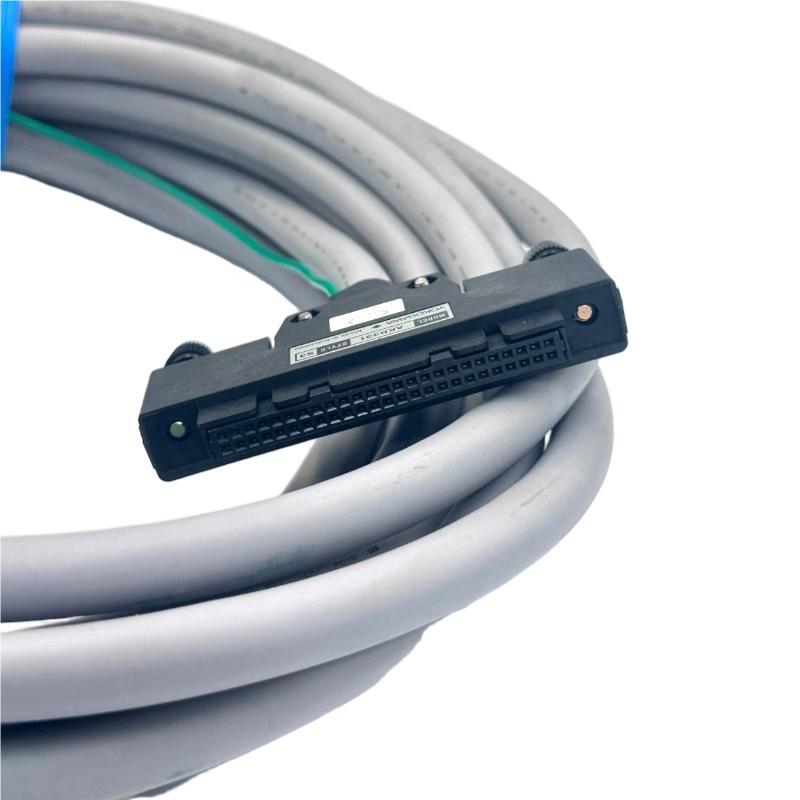

| Connector Type | 50-pin industrial connectors |
| Communication Type | RS-232C / I/O interconnect (system dependent) |
| Compatible Modules | SDV144 / SDV531 / SDV53A / SDV541 / SAT145 |
| System Compatibility | CENTUM VP / CS 3000 / ProSafe-RS |
| Shielding | Industrial EMI-shielded cable |
| Operating Temperature | -20°C to +70°C |
The AKB331-M015 version is defined as a 15 m cable for module-to-terminal board connection
Physical Characteristics
| Item | Specification |
|---|---|
| Dimensions (L × W × H) | 15000 × 42 × 92 mm |
| Cable Length | 15000 mm (15 m) |
| Connector Width | ~42 mm |
| Connector Height | ~92 mm |
| Weight | Approx. 3 – 4 kg |
| Cable Structure | Multi-core shielded industrial cable |
Note: Width and height refer to connector profile; actual cable routing diameter may vary slightly depending on shielding and batch.
