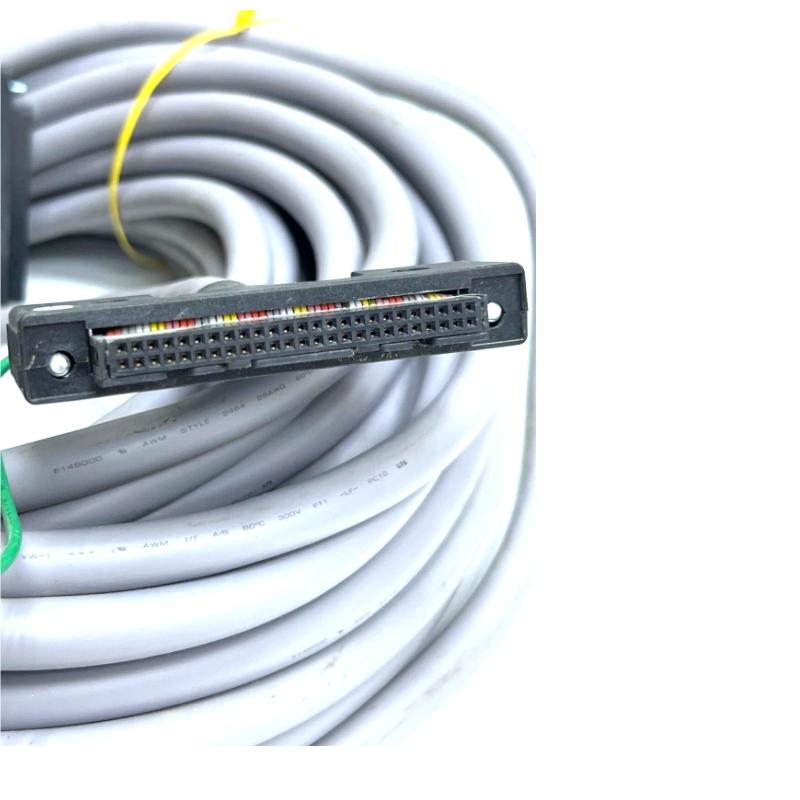

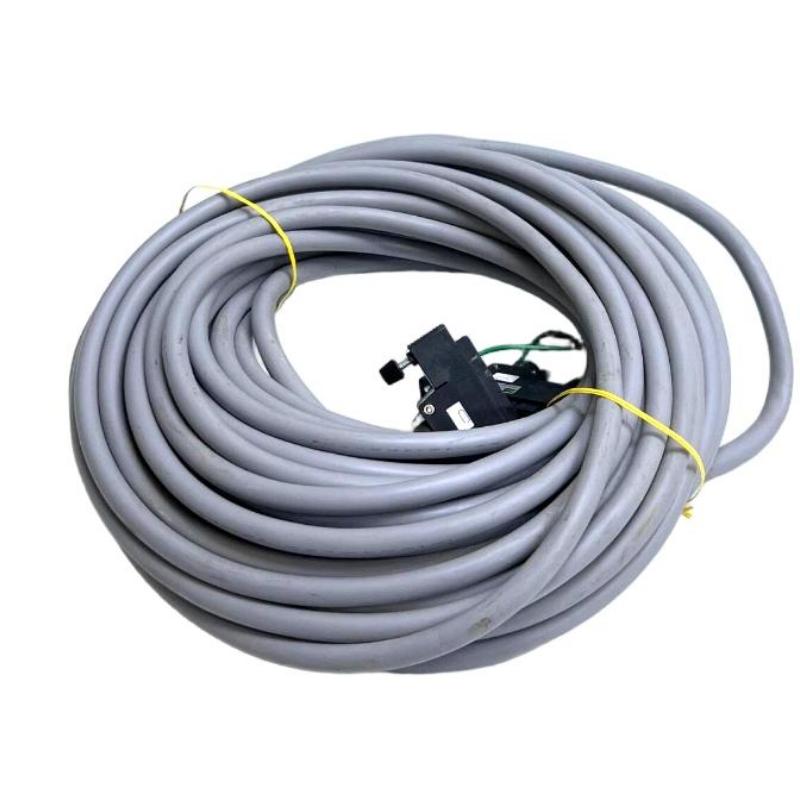

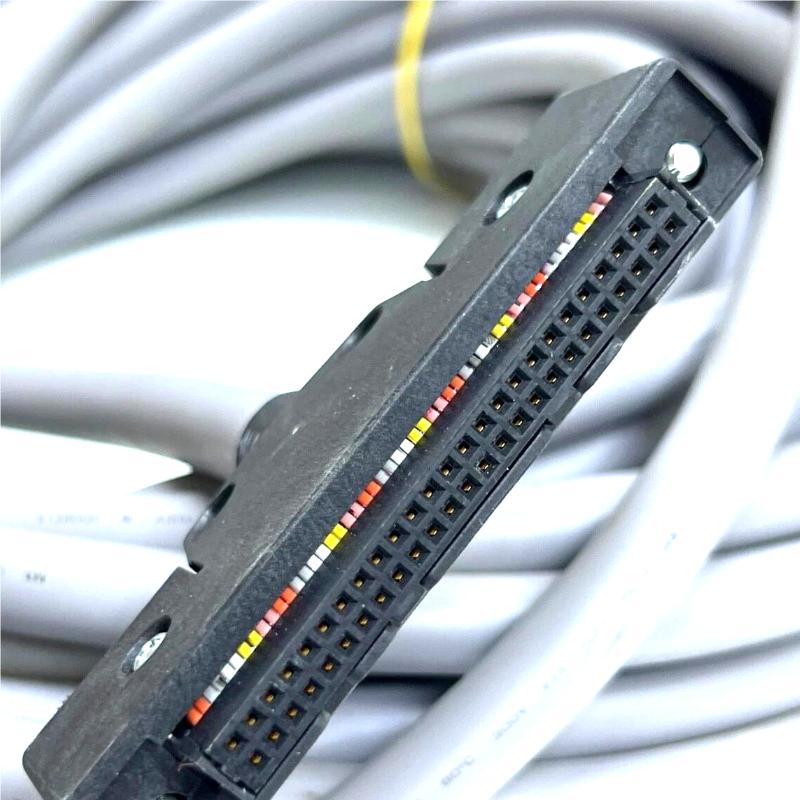

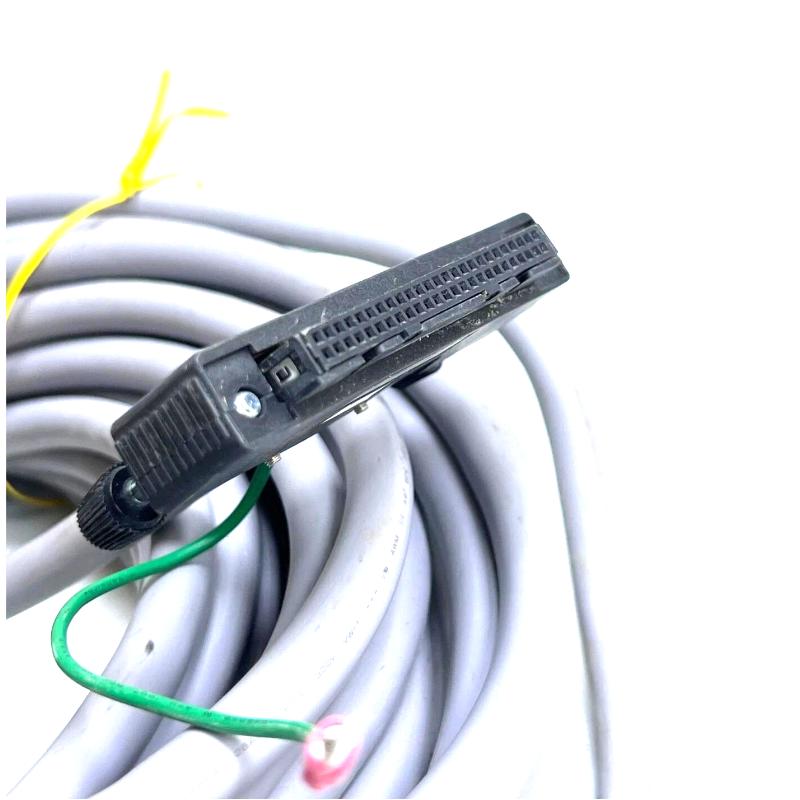

The Yokogawa AKB331-M030 is a 30-meter 50-pin signal interconnection cable designed for Yokogawa CENTUM VP / CENTUM CS 3000 and ProSafe-RS systems.
It is used to provide stable, long-distance signal transmission between I/O modules and terminal boards, making it ideal for large-scale control cabinet layouts and distributed automation architectures. Built with industrial-grade shielding and precision connectors, this cable ensures low-noise communication and high signal integrity, even across extended distances.
The AKB331-M030 is widely deployed in oil & gas, petrochemical, power generation, and large process industries, where reliability and structured wiring are critical.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Yokogawa |
| Model | AKB331-M030 |
| Product Type | Signal Cable (50-pin to 50-pin) |
| Cable Length | 30 meters |
| Connector Type | 50-pin industrial connectors (both ends) |
| Compatible Modules | SDV144 / SDV531 / SDV53A / SDV541 / SAT145 |
| System Compatibility | CENTUM VP / CS 3000 / ProSafe-RS |
| Signal Type | Digital / analog I/O transmission |
| Shielding | EMI-resistant industrial shielding |
| Insulation | Flame-retardant PVC |
| Operating Temperature | -20°C to +70°C |
The -M030 suffix indicates a 30 m cable length, suitable for long-distance cabinet or inter-panel connections
Physical Characteristics
| Item | Specification |
|---|---|
| Dimensions (L × W × H) | 30000 × 42 × 92 mm |
| Cable Length | 30000 mm (30 m) |
| Connector Width | ~42 mm |
| Connector Height | ~92 mm |
| Weight | Approx. 2 – 5.8 kg (depends on build/batch) |
| Construction | Multi-core shielded industrial cable |
Connector profile dimensions (42 × 92 mm) follow Yokogawa AKB331 standard drawings
Cable length tolerance: +3% or +1 m (max), -0% for lengths over 3 m
