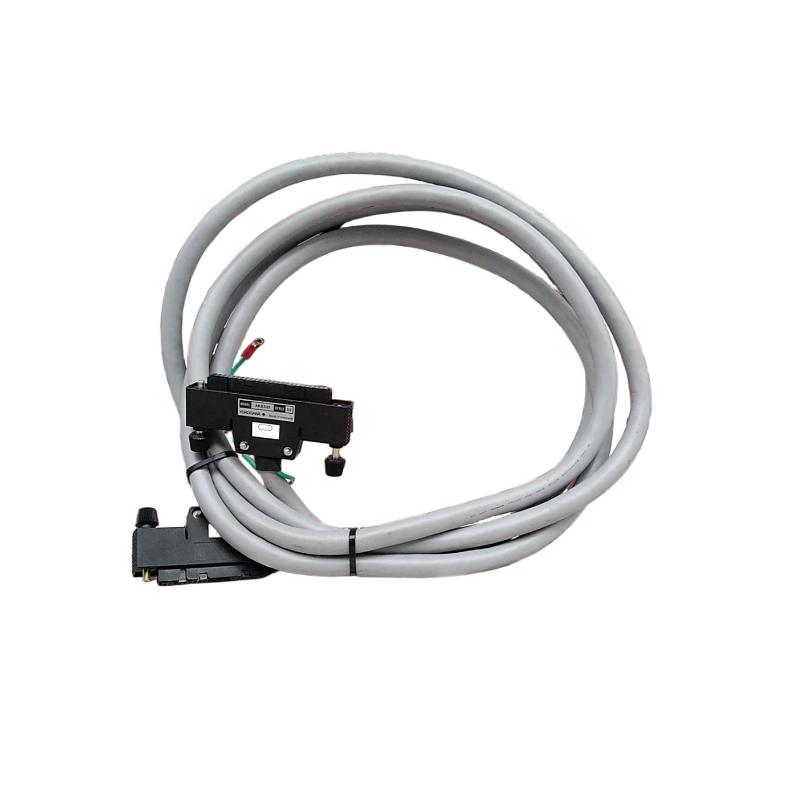

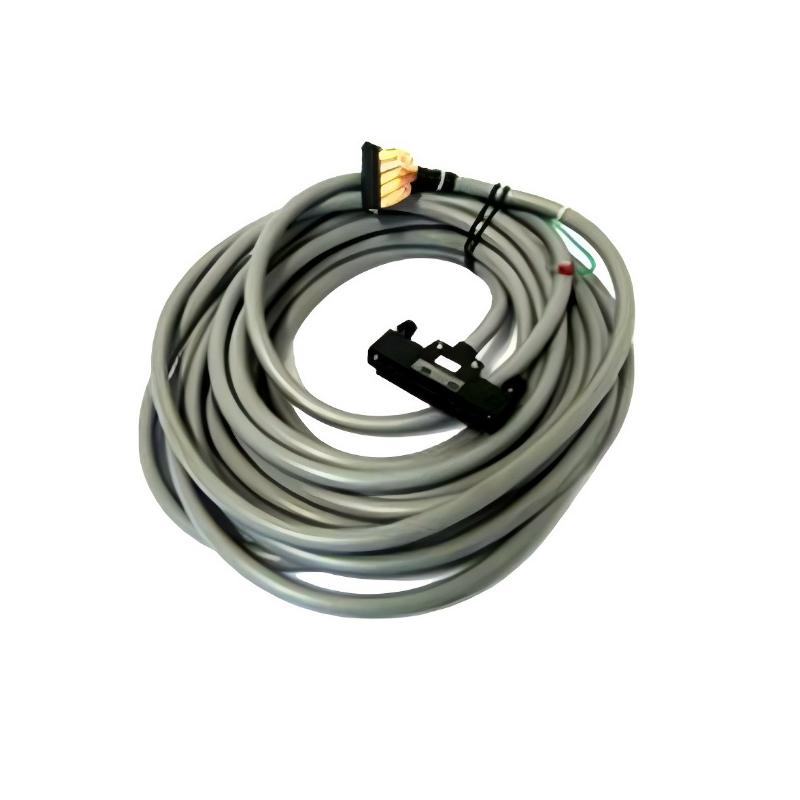

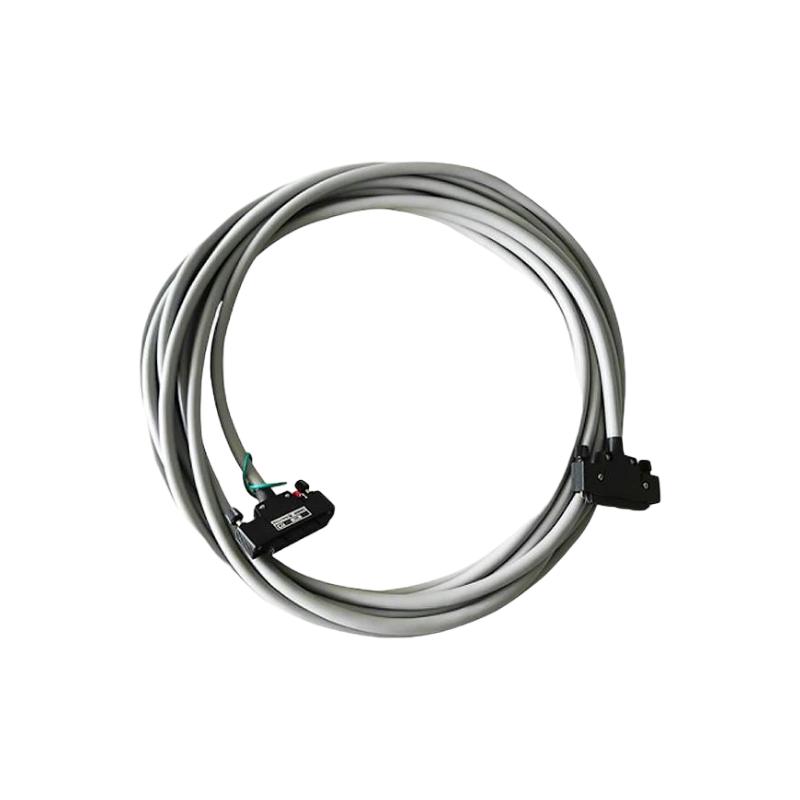

The Yokogawa AKB335-M010 is a 50-pin high-integrity signal cable designed for Yokogawa CENTUM VP / CENTUM CS 3000 Distributed Control Systems (DCS).
It is engineered to provide stable, low-noise signal transmission between I/O modules and terminal boards, ensuring reliable communication in industrial automation environments. With high-quality shielding and durable construction, the AKB335-M010 is ideal for medium-distance cabinet wiring and structured DCS installations.
This model is part of the AKB335 cable family, widely used in process industries such as oil & gas, power generation, and chemical plants, where signal accuracy and system uptime are critical.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Yokogawa |
| Model | AKB335-M010 |
| Product Type | Signal Cable (50-pin to 50-pin) |
| Cable Length | 10 meters |
| Pin Configuration | 50-pin connectors (both ends) |
| Conductor Material | Oxygen-free copper |
| Insulation Material | PVC (Polyvinyl Chloride) |
| Shielding | Foil + braided EMI shielding |
| Impedance | 100 Ω |
| Max Voltage | 300 V |
| Operating Temperature | -20°C to +70°C |
The cable is optimized for high-integrity signal transmission in industrial automation systems, minimizing signal loss and electromagnetic interference.
Physical Characteristics
| Item | Specification |
|---|---|
| Dimensions (L × W × H) | 10000 × 42 × 92 mm |
| Cable Length | 10000 mm (10 m) |
| Connector Width | ~42 mm |
| Connector Height | ~92 mm |
| Weight | Approx. 0.5 – 3 kg (varies by batch) |
| Construction | Multi-core shielded industrial cable |
Connector dimensions follow Yokogawa standard AKB33x cable drawings.
Recommended Related Models
- Yokogawa AKB335-M005 – 5 m signal cable
- Yokogawa AKB335-M015 – 15 m extended version
- Yokogawa AKB331-M010 – alternative cable series
- Yokogawa ADV551 – digital output module
- Yokogawa SDV541 – digital I/O module
