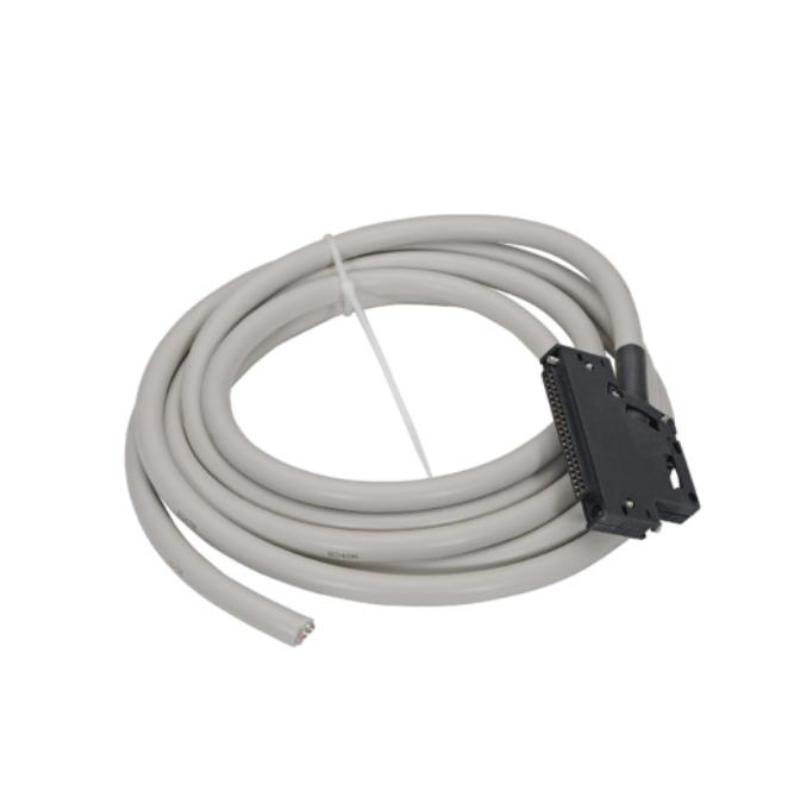

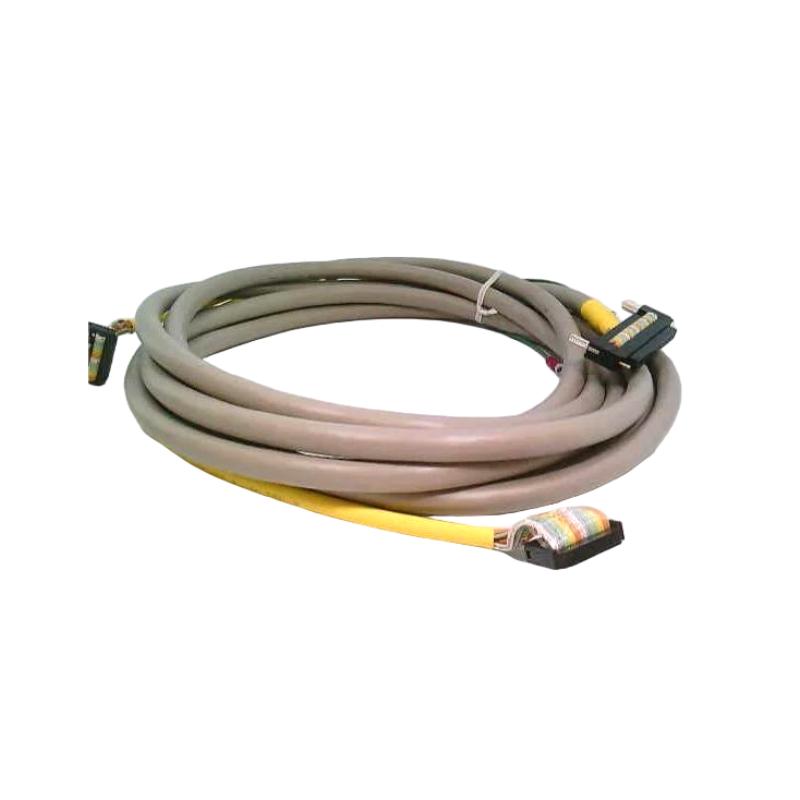

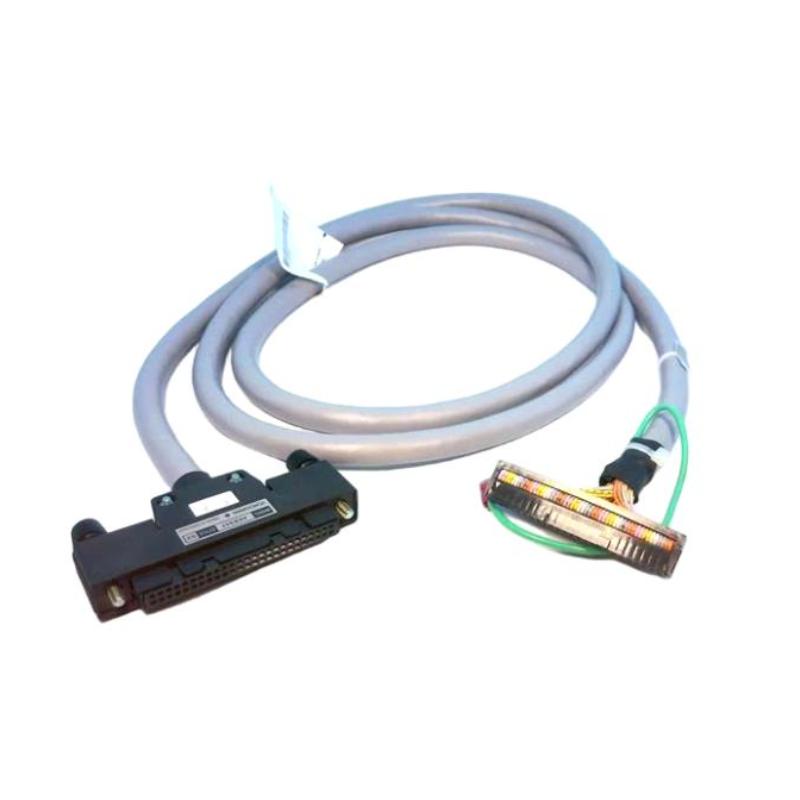

The Yokogawa AKB337-M010 is a 10-meter 50-pin signal interconnection cable used in Yokogawa CENTUM VP / CENTUM CS 3000 and ProSafe-RS distributed control systems (DCS).
It is designed for reliable signal transmission between I/O modules and terminal boards, ensuring stable communication in high-density industrial control cabinets. With EMI-shielded construction and precision connectors, it provides high signal integrity, low noise, and long-term operational stability in demanding process automation environments.
The AKB337 series is widely used in oil & gas, petrochemical, power generation, and chemical industries, where consistent DCS communication is essential for safe plant operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Yokogawa |
| Model | AKB337-M010 |
| Product Type | Signal Cable (50-pin to 50-pin) |
| Cable Length | 10 meters |
| Connector Type | 50-pin industrial connectors |
| Compatible Modules | ADV161 / ADV561 / ALF111 / AGS813 / AGP813 |
| System Compatibility | CENTUM VP / CS 3000 / ProSafe-RS |
| Signal Type | Digital I/O interconnection |
| Shielding | EMI-shielded industrial cable |
| Operating Temperature | -20°C to +70°C |
| Withstanding Voltage | 500 V AC (system dependent spec) |
The AKB337 cable family is defined for connection between I/O modules (e.g., ADV161 / ADV561) and terminal boards in CENTUM VP systems.
Physical Characteristics
| Item | Specification |
|---|---|
| Dimensions (L × W × H) | 10000 × 42 × 92 mm |
| Cable Length | 10000 mm |
| Connector Width | ~42 mm |
| Connector Height | ~92 mm |
| Weight | Approx. 0.36 – 3 kg (varies by build and supplier listing) |
Cable length suffix “M010” strictly indicates a 10-meter standard configuration.
Recommended Related Models
- Yokogawa AKB337-M005 – 5 m cable version
- Yokogawa AKB337-M007 – 7 m cable version
- Yokogawa AKB337-M015 – 15 m extended version
- Yokogawa AKB336 series – 20-pin alternative I/O cables
- Yokogawa ADV551 – digital output module
