Brand:Yokogawa Electric Item No.:Yokogawa ATB5S-00 Product Origin:Japan Product Dimensions:175 × 140 × 140 mm Product Weight:1.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

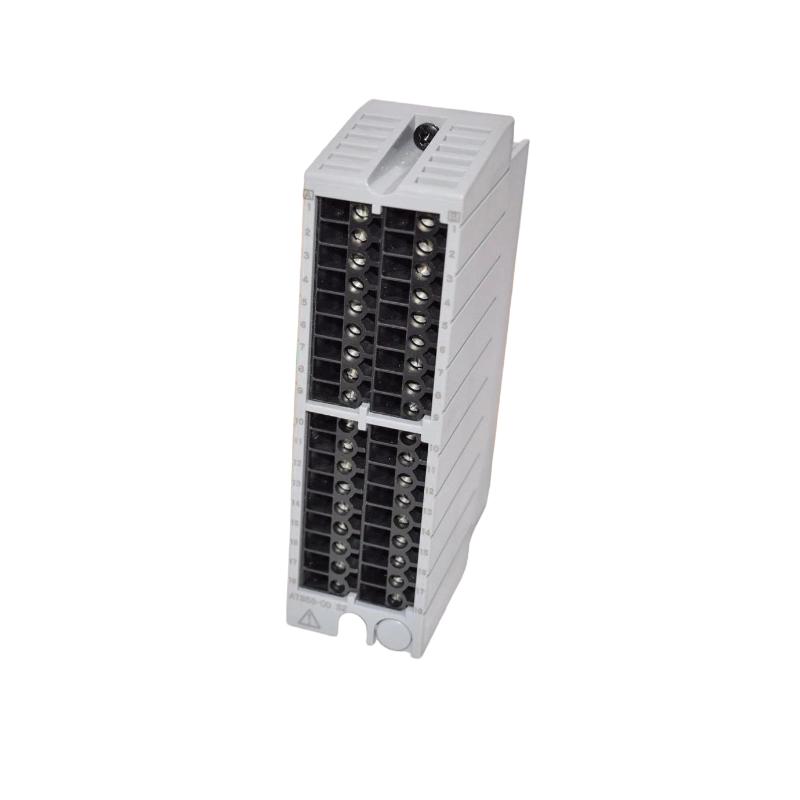

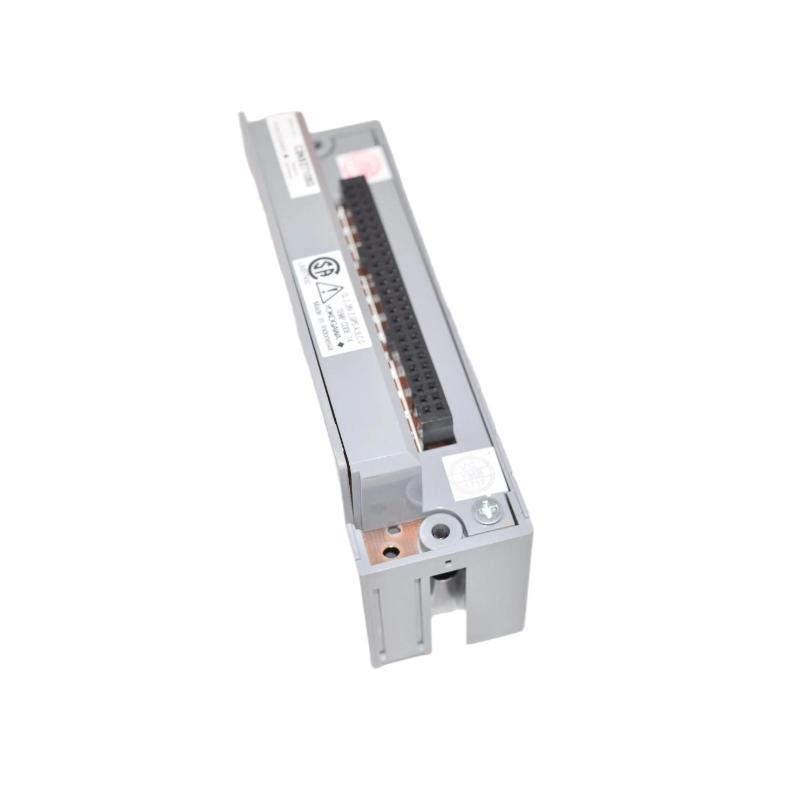

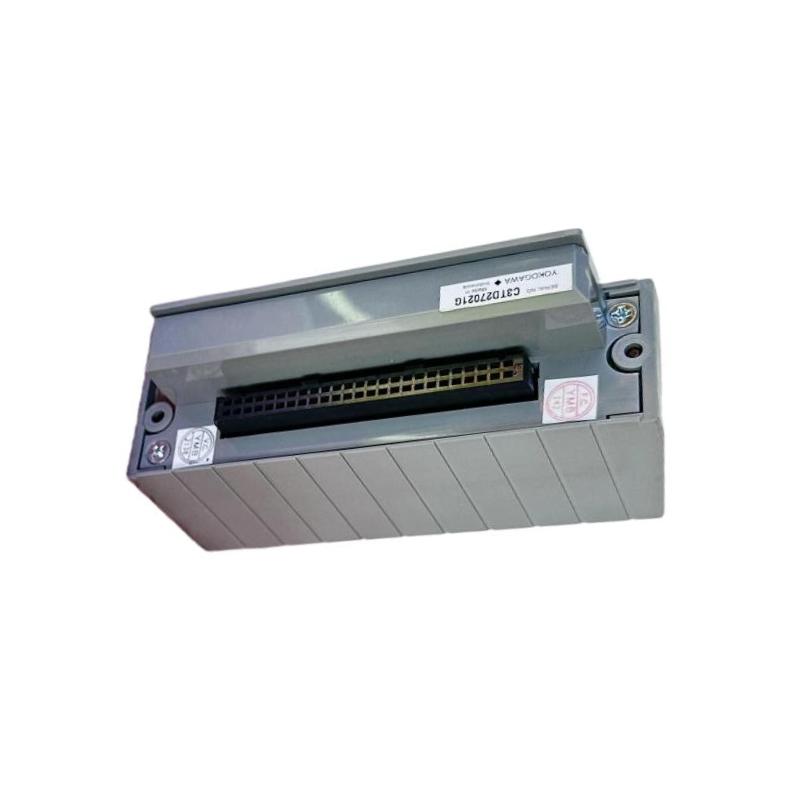

The Yokogawa ATB5S-00 is an I/O terminal board (terminal block assembly) used in Yokogawa CENTUM VP / CENTUM CS 3000 Distributed Control Systems (DCS).
It is designed to provide a secure and organized termination point for field wiring, allowing clean connection between I/O modules (such as ADV/SDV/ALF series) and field instruments. The ATB5S-00 plays a key role in ensuring stable signal distribution, simplified maintenance, and reliable long-term operation in industrial control cabinets.
This terminal board is widely used in process automation environments such as oil & gas, petrochemical, chemical, and power plants, where wiring clarity and system stability are critical.
Approx. 175 × 140 × 140 mm(reference DCS terminal base form factor)
Weight
Approx. 0.8 – 1.5 kg
Installation
Mounted inside I/O cabinet rack
Structure
Modular terminal block assembly
Material
Industrial-grade flame-retardant plastic + metal base
Recommended Related Models
Yokogawa ATB5S-10 – extended terminal board version
Yokogawa ATK series – terminal kits for FIO systems
Yokogawa ADV161 – digital input module
Yokogawa ADV551 – digital output module
Yokogawa AAI141 – analog input module
Popular Yokogawa Models
Yokogawa ATB5S-00 – terminal board base unit
Yokogawa ADV161 – digital input module
Yokogawa ADV551 – digital output module
Yokogawa ALF111 – fieldbus communication module
Yokogawa CENTUM VP – DCS platform system
Applications
The Yokogawa ATB5S-00 is widely used in:
DCS cabinet field wiring termination
Oil & gas refinery control systems
Petrochemical automation systems
Power plant instrumentation panels
Chemical process control systems
Safety instrumented system (SIS) integration
It is especially suitable for organized field wiring distribution in high-density industrial control cabinets, improving maintainability and troubleshooting efficiency.
Advantages
Provides stable and organized field wiring termination
Reduces wiring errors in DCS installations
Supports high-density I/O system integration
Improves maintenance efficiency and troubleshooting speed
Compatible with multiple Yokogawa I/O modules
Industrial-grade durability for long-term operation
Compact design for control cabinet integration
Proven reliability in critical process industries
Technical FAQs
1. What is Yokogawa ATB5S-00 used for?
It is used as a terminal board for connecting field wiring to DCS I/O modules.
2. What systems support it?
CENTUM VP and CENTUM CS 3000 systems.
3. What modules is it compatible with?
ADV, AAI, SDV, and ALF series I/O modules.
4. What is the main function of this board?
It provides a structured termination point for field signals.
5. What are its dimensions?
Approximately 175 × 140 × 140 mm (typical cabinet module footprint).
6. What is the weight?
Around 0.8–1.5 kg depending on configuration.
7. Where is it installed?
Inside DCS control cabinets or I/O racks.
8. Is it used for analog or digital signals?
Both, depending on connected I/O modules.
9. Is it still widely used?
Yes, it is commonly used in existing Yokogawa DCS installations.
10. What is its main benefit?
It improves wiring organization and system maintainability.
