Brand:Yokogawa Electric Item No.:Yokogawa ATD5A-00 S1 Product Origin:Japan Product Dimensions:127 × 125 × 33 mm Product Weight:1.34 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

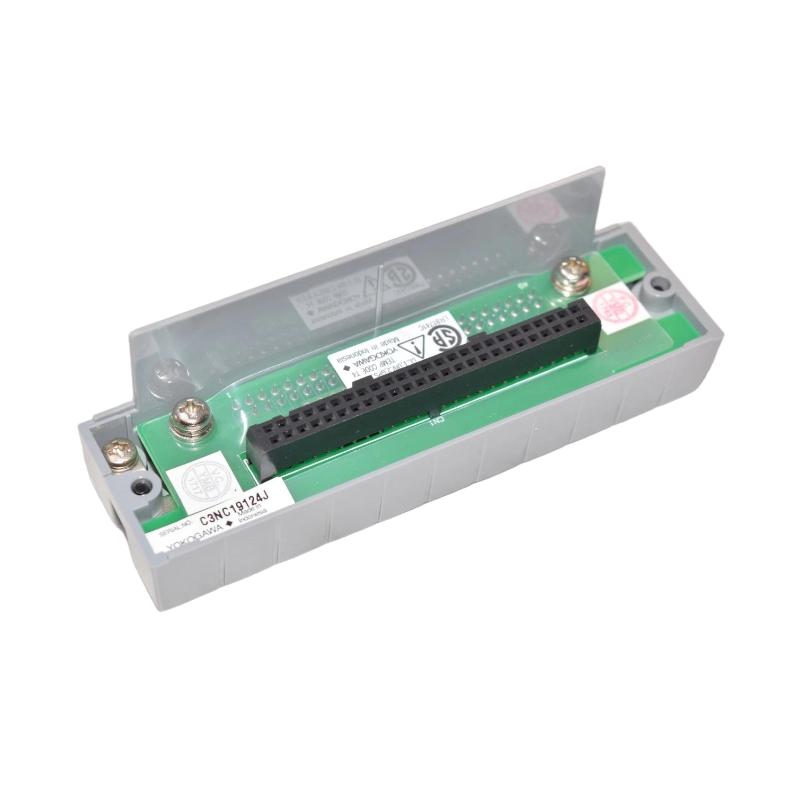

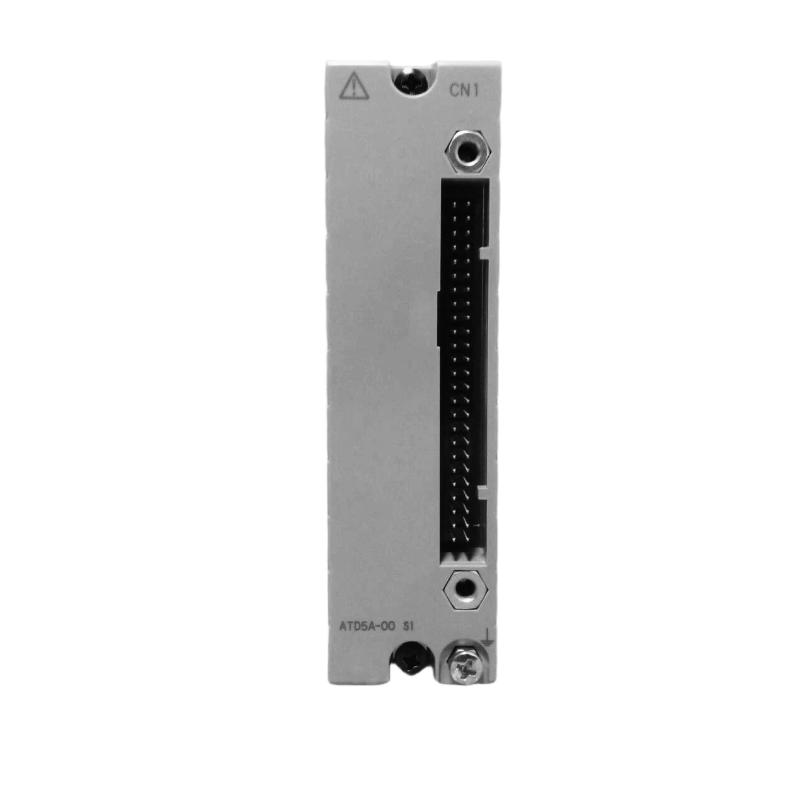

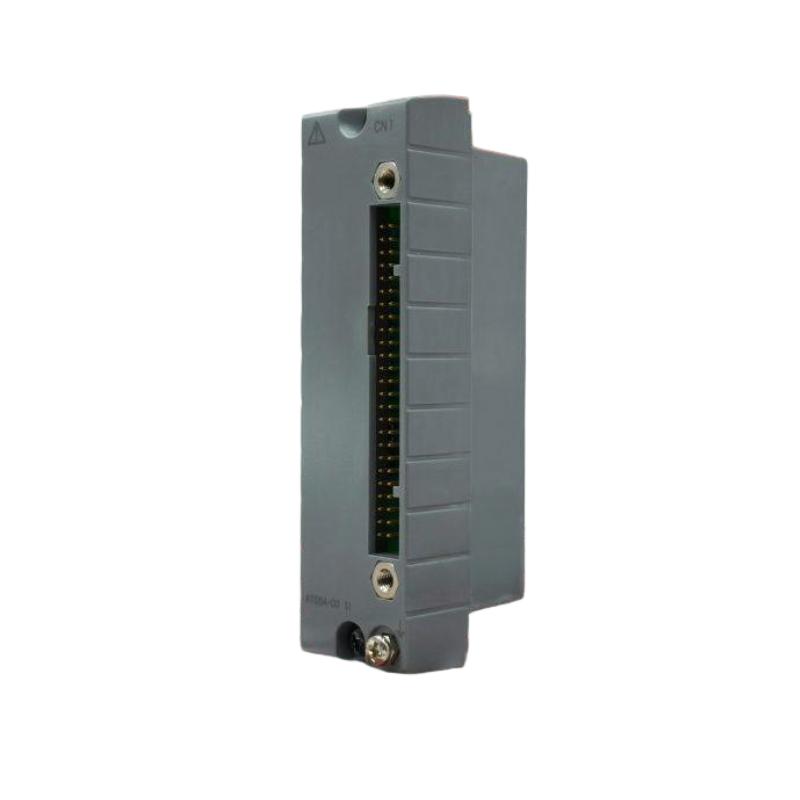

The Yokogawa ATD5A-00 S1 is a KS cable interface adapter / I/O connection module used in Yokogawa CENTUM VP and CENTUM CS 3000 Distributed Control Systems (DCS).
It is designed to provide a structured interface between field wiring (KS cables) and DCS I/O modules, enabling efficient signal distribution and stable communication in industrial automation systems. The “S1” suffix generally indicates a revision or upgraded design version, offering improved compatibility or mechanical refinement.
This module is commonly used in high-density I/O cabinet environments, where organized wiring and reliable signal integrity are critical for plant operations.
Technical Specifications
Parameter
Specification
Brand
Yokogawa
Model
ATD5A-00 S1
Product Type
KS Cable Interface Adapter / I/O Interface Module
Function
Field wiring to I/O module connection
Compatible Modules
ADV151 / ADV551 / FIO I/O modules
System Compatibility
CENTUM VP / CS 3000
Connection Type
KS cable interface (multi-point wiring)
Signal Type
Digital I/O (system dependent)
Channel Capacity
Typically 32-point interface configuration
Operating Temperature
-20°C to +70°C
The ATD5A-00 series is designed for FIO system integration and KS cable-based field wiring distribution in Yokogawa DCS architecture.
Physical Characteristics
Item
Specification
Dimensions (W × H × D)
Approx. 127 × 125 × 33 mm
Weight
Approx. 0.1 – 1.34 kg (depending on configuration)
