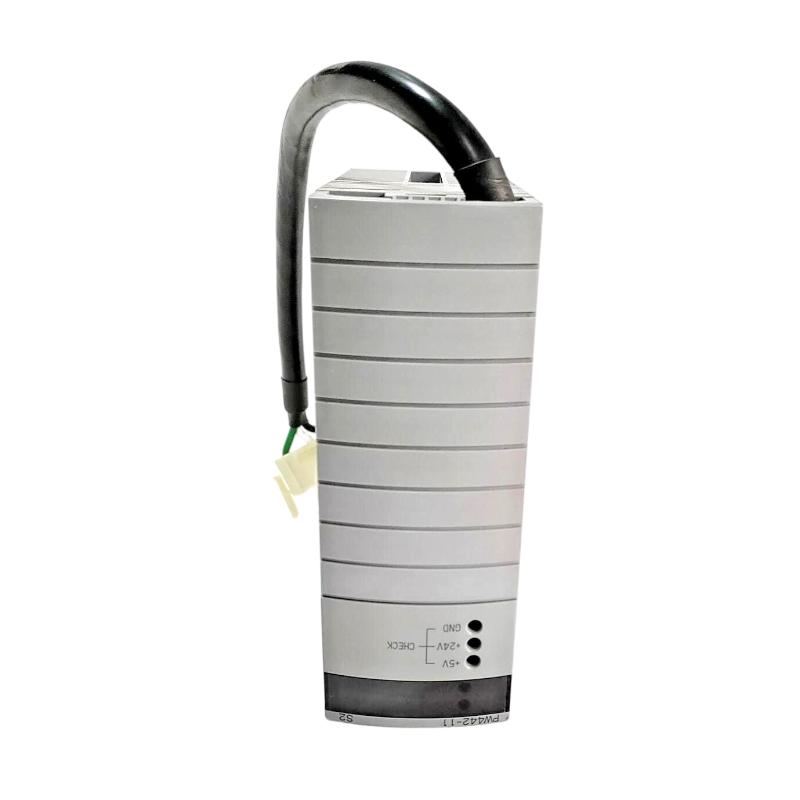

The Yokogawa PW482-11 S2 is a high-reliability AC/DC power supply module used in Yokogawa CENTUM CS / CS 3000 distributed control systems (DCS).
It provides stable power conversion from 220–240 V AC input into regulated DC outputs, supplying essential power to controllers, I/O modules, and communication units within industrial automation systems. The “S2” suffix represents a hardware revision version, typically improving reliability, safety compliance, or internal circuit optimization.
This module is widely deployed in oil & gas, petrochemical, power generation, and continuous process industries, where uninterrupted system power is critical.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Yokogawa |
| Model | PW482-11 S2 |
| Product Type | Power Supply Module |
| Input Voltage | 220–240 V AC |
| Input Frequency | 50/60 Hz |
| Input Current | ~1.3 A |
| Output Voltage | 5.1 V DC / 24 V DC |
| Output Current | 7.8 A (5.1 V) / ~1.7–4 A (24 V, system dependent) |
| Power Capacity | Approx. 200–230 VA |
| Redundancy | Supported (dual power configuration) |
| System Compatibility | CENTUM CS / CS 3000 / FCU / FIO nodes |
The PW482 series is designed for FCU, FIO node units, and ESB bus-based control architectures, supporting redundant power configurations.
Physical Characteristics
| Item | Specification |
|---|---|
| Dimensions (W × H × D) | Approx. 105 × 136 × 19 mm |
| Weight | Approx. 1.0 – 2.2 kg (varies by source/configuration) |
| Mounting Type | Rack / FCU / node unit slot installation |
| Cooling Method | Natural convection (fanless design) |
| Construction | Industrial-grade power electronics module |
Recommended Related Models
- Yokogawa PW482-10 – standard AC input version
- Yokogawa PW481 series – alternative input range version
- Yokogawa PW484 series – extended power configuration
- Yokogawa CP471 – controller processor module
- Yokogawa NFCP100 – communication processor module
