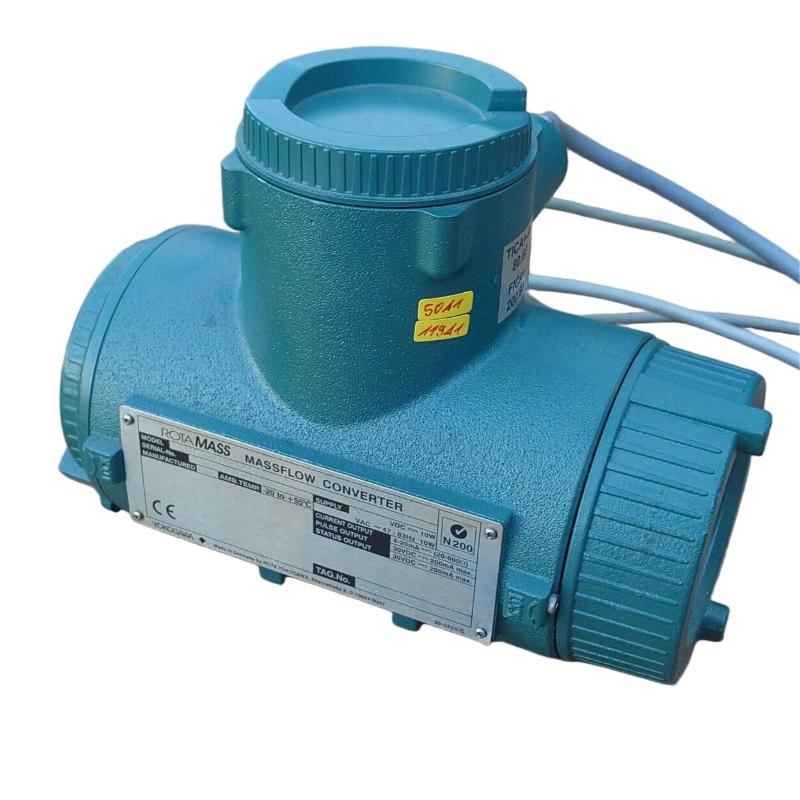

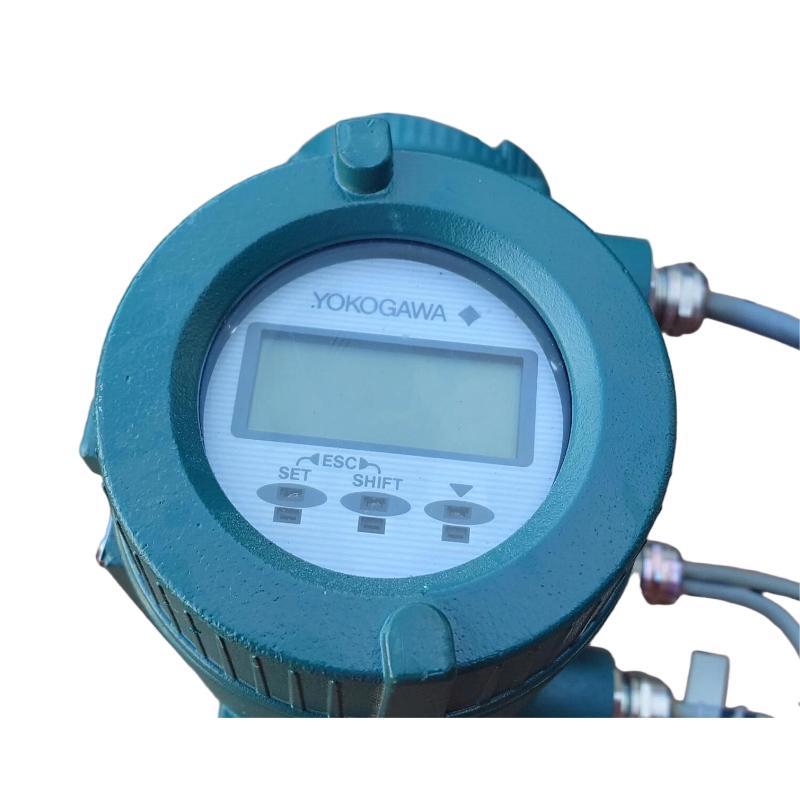

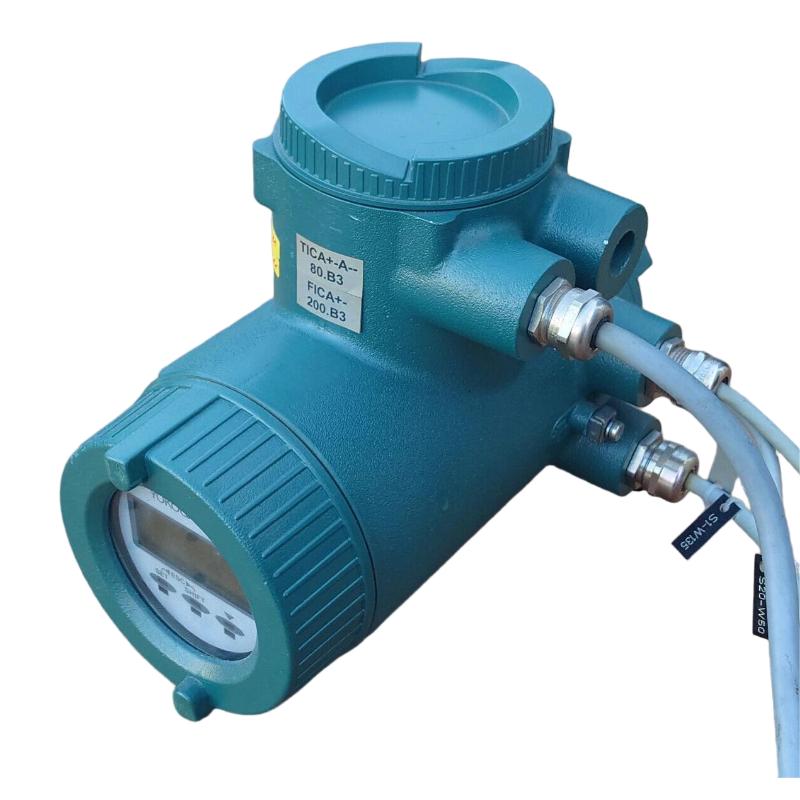

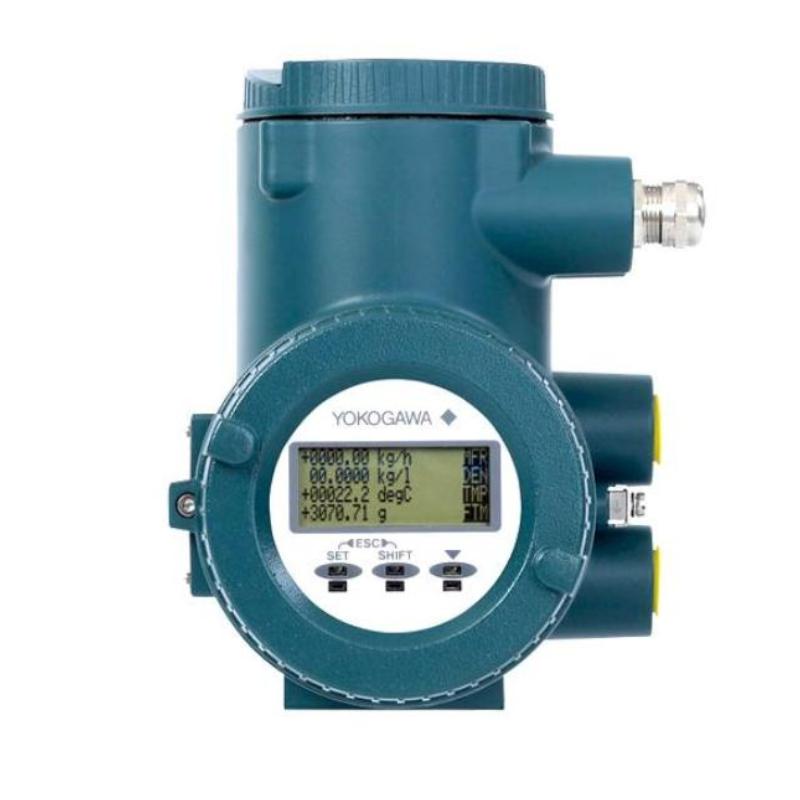

The Yokogawa RCCF31 is a Coriolis mass flow converter module from the Yokogawa ROTAMASS 3 series, designed for high-precision measurement of mass flow, density, and temperature in industrial processes.
Unlike standard I/O modules, RCCF31 functions as a field-mounted or remote converter, working together with a Coriolis sensor (such as RCCS series) to provide direct mass flow measurement without relying on volumetric conversion. This makes it highly accurate and stable, even under varying process conditions.
It is widely used in oil & gas, chemical, pharmaceutical, and food industries, especially in applications requiring custody transfer accuracy and real-time process control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Yokogawa |
| Model | RCCF31 |
| Product Type | Coriolis Mass Flow Converter |
| Measurement Parameters | Mass flow, density, temperature |
| Measurement Accuracy | ±0.1% (liquids), ±0.5% (gases) |
| Density Accuracy | ±0.0005 g/cm³ |
| Repeatability | ±0.05% |
| Flow Range | 0–0.3 t/h to 0–30 t/h (depending on sensor) |
| Communication Protocols | HART, FOUNDATION Fieldbus, Modbus, PROFIBUS |
| Output Signals | 4–20 mA (dual), pulse/frequency output |
| Power Supply | 90–250 V AC or 24 V DC |
| Protection Rating | IP67 / NEMA 4X |
| Operating Temperature | -50°C to +200°C (process dependent) |
RCCF31 is part of Yokogawa’s ROTAMASS platform, delivering direct mass flow measurement with no moving parts, ensuring high reliability and minimal maintenance.
Physical Characteristics
| Item | Specification |
|---|---|
| Dimensions (W × H × D) | Approx. 210 × 260 × 140 mm (typical field-mount converter housing) |
| Weight | Approx. 1.5 kg |
| Mounting Type | Field-mounted / remote converter installation |
| Housing | Explosion-proof industrial enclosure |
| Protection Class | IP67 / NEMA 4X |
Exact dimensions may vary slightly depending on configuration and certification options (ATEX / IECEx).
