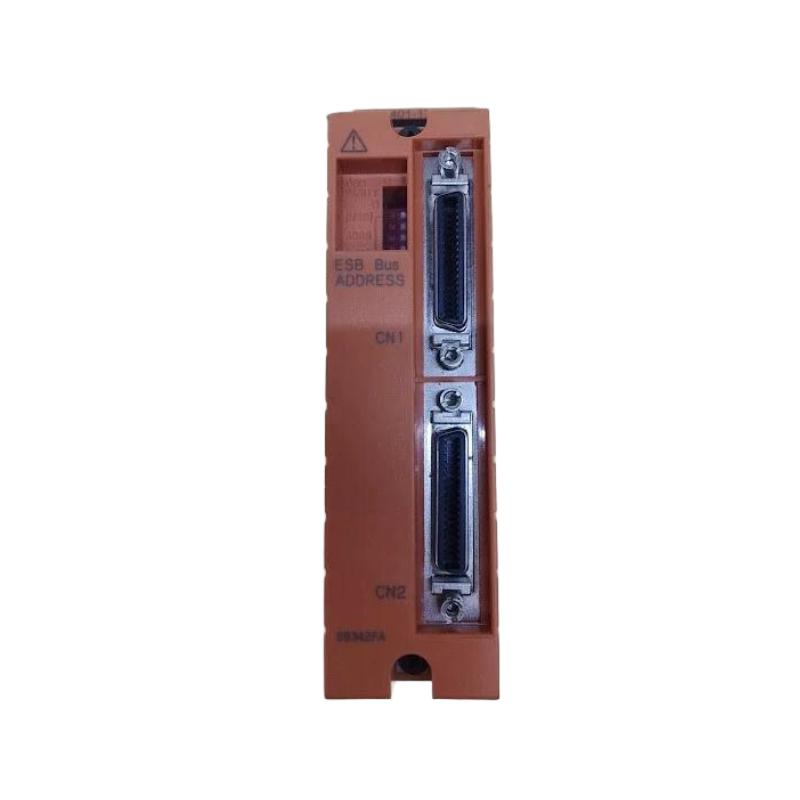

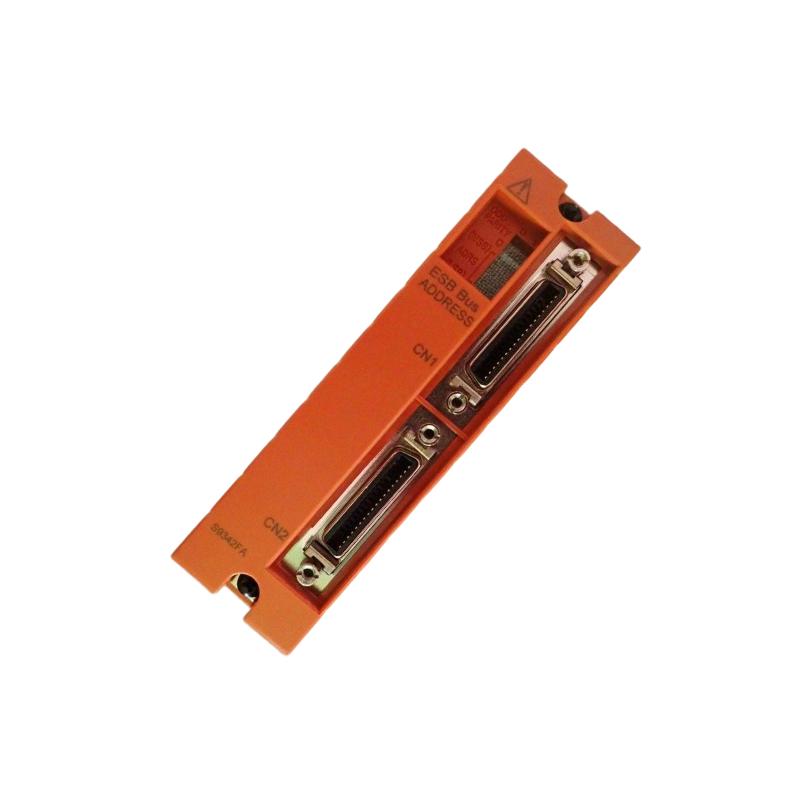

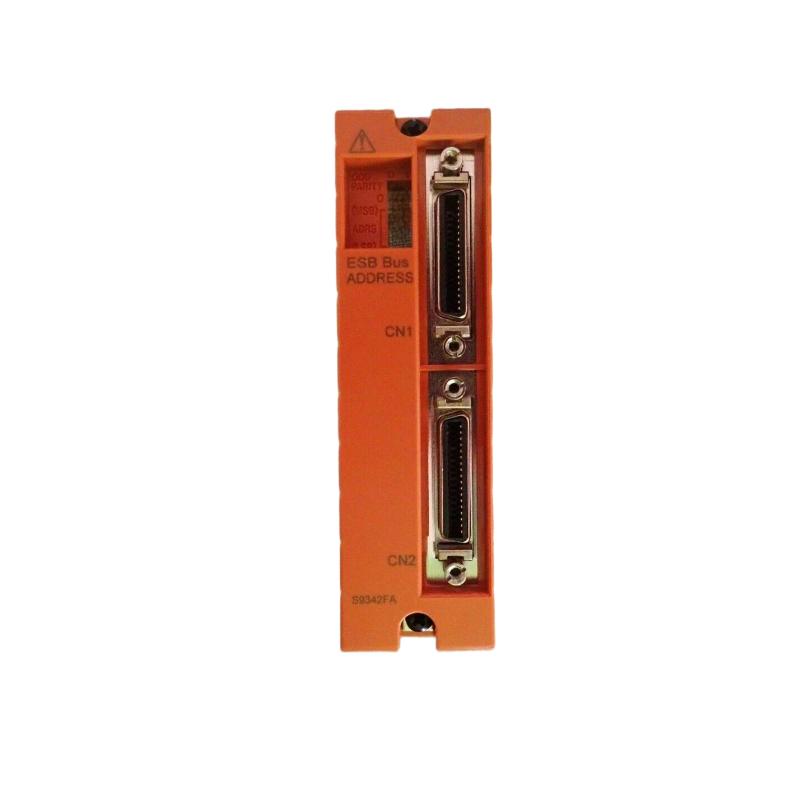

The Yokogawa S9346FA is an ESB bus connector unit with integrated terminator, designed for Yokogawa CENTUM VP / CENTUM CS 3000 Distributed Control Systems (DCS).
It combines both bus connection and termination functions in a single module, simplifying system architecture while ensuring stable communication across the ESB (Extended Serial Backplane) network. This unit is typically used at the end of an ESB bus segment, where proper termination is required to prevent signal reflection and maintain data integrity.
According to Yokogawa system documentation, S9346FA is specifically defined as a connector unit with terminator for ESB bus systems, often used together with optical ESB repeater modules.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Yokogawa |
| Model | S9346FA |
| Product Type | ESB Bus Connector Unit with Terminator |
| Function | Bus connection + signal termination |
| Bus Type | ESB (Extended Serial Backplane) |
| System Compatibility | CENTUM VP / CS 3000 / ProSafe-RS |
| Installation Position | End of ESB bus segment |
| Communication Role | Ensures signal integrity and network stability |
| Configuration | Passive termination + connector integration |
| Operating Temperature | -20°C to +70°C |
S9346FA integrates termination into the connector unit, eliminating the need for a separate terminator module and improving installation efficiency.
Physical Characteristics
| Item | Specification |
|---|---|
| Dimensions (W × H × D) | Approx. 107.5 × 50 × 32.8 mm |
| Weight | Approx. 0.2 – 0.5 kg |
| Mounting Type | Rack / ESB node / connector slot |
| Structure | Integrated connector + terminator module |
| Installation | Plug-in (no configuration required) |
Recommended Related Models
- Yokogawa S9345FA – ESB connector unit (without terminator)
- Yokogawa S9341FA – ESB bus terminator module
- Yokogawa S9157FA – ER bus terminator
- Yokogawa NFCP100 – communication processor module
- Yokogawa CP471 – controller CPU module
