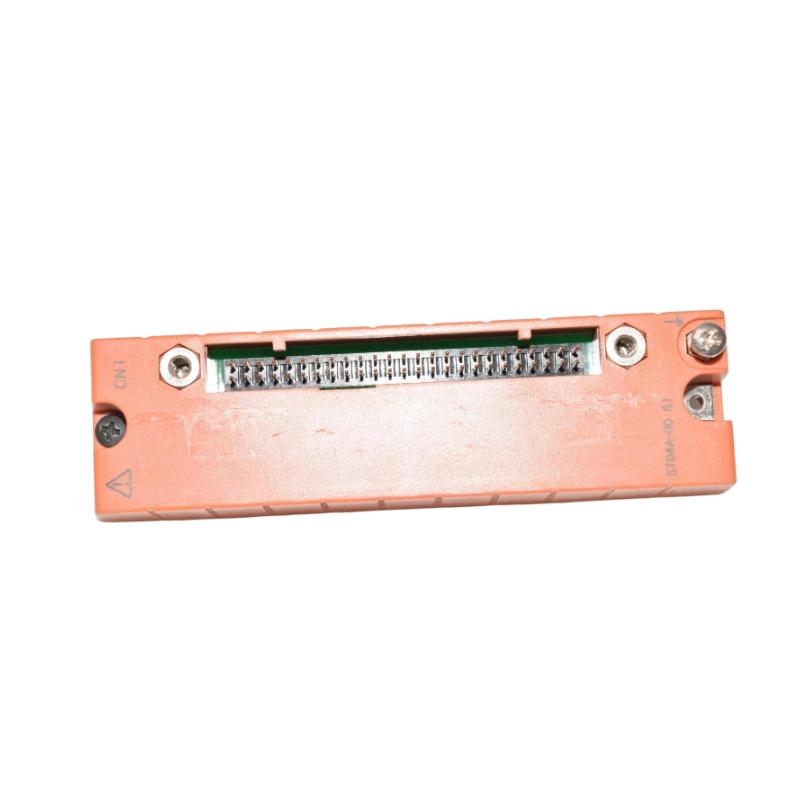

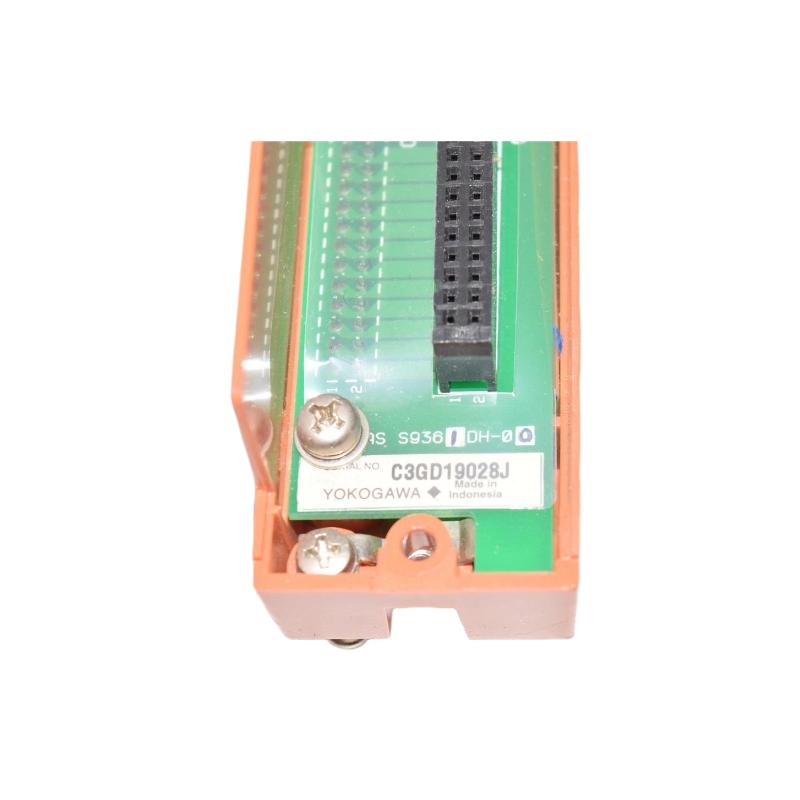

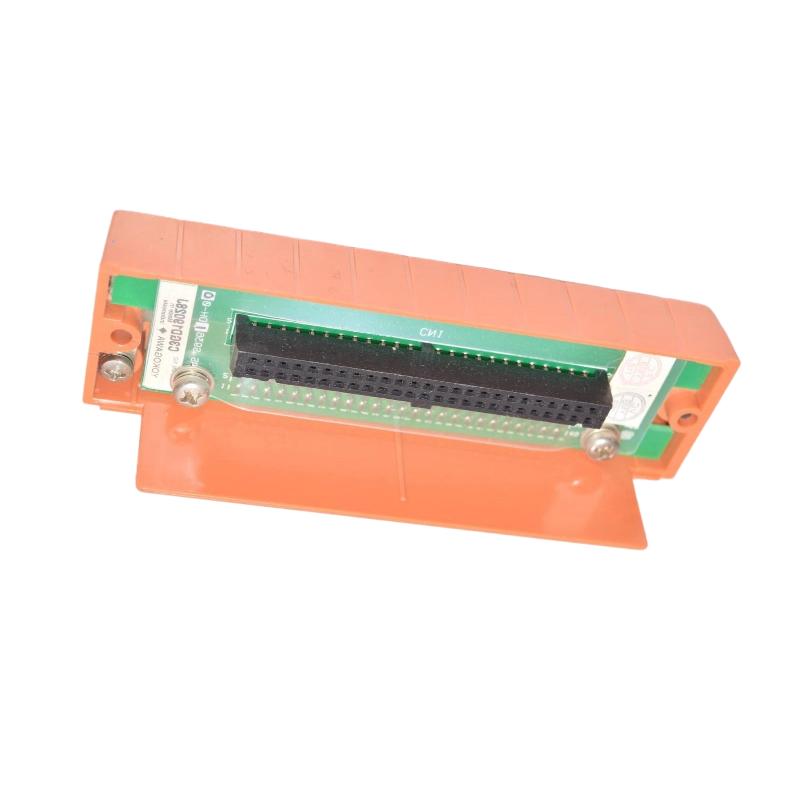

The Yokogawa S9361DH (commonly referenced as S9361DH-00) is a terminal board / I/O interface module used in Yokogawa CENTUM CS / CENTUM VP Distributed Control Systems (DCS).
It is designed to act as a signal termination and distribution interface between field wiring and DCS I/O modules, enabling stable transmission of digital and analog signals in industrial automation environments. The module helps simplify cabinet wiring, improve maintainability, and ensure reliable signal integrity in complex control systems.
The S9361DH is widely used in process industries where high-density I/O signal management is required, such as oil & gas, petrochemical, power generation, and chemical plants.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Yokogawa |
| Model | S9361DH (S9361DH-00) |
| Product Type | Terminal Board / I/O Interface Module |
| System Compatibility | CENTUM CS / CENTUM VP |
| Function | Signal termination & I/O distribution |
| Signal Types | Digital & analog I/O (system dependent) |
| Digital I/O Capacity | Up to 16 DI / 16 DO (typical configuration) |
| Analog Capability | 0–10 V / 4–20 mA (system dependent) |
| Power Supply | 24 V DC |
| Communication | DCS backplane / I/O bus interface |
| Operating Temperature | -20°C to +70°C |
The S9361DH is designed as a high-density terminal interface module, enabling efficient signal aggregation for DCS I/O systems.
Physical Characteristics
| Item | Specification |
|---|---|
| Dimensions (W × H × D) | Approx. 100 × 120 × 25 mm |
| Weight | Approx. 0.3 – 1.3 kg |
| Mounting Type | Panel / rack-mounted terminal board |
| Structure | Industrial PCB + terminal block assembly |
| Installation | Cabinet wiring termination system |
