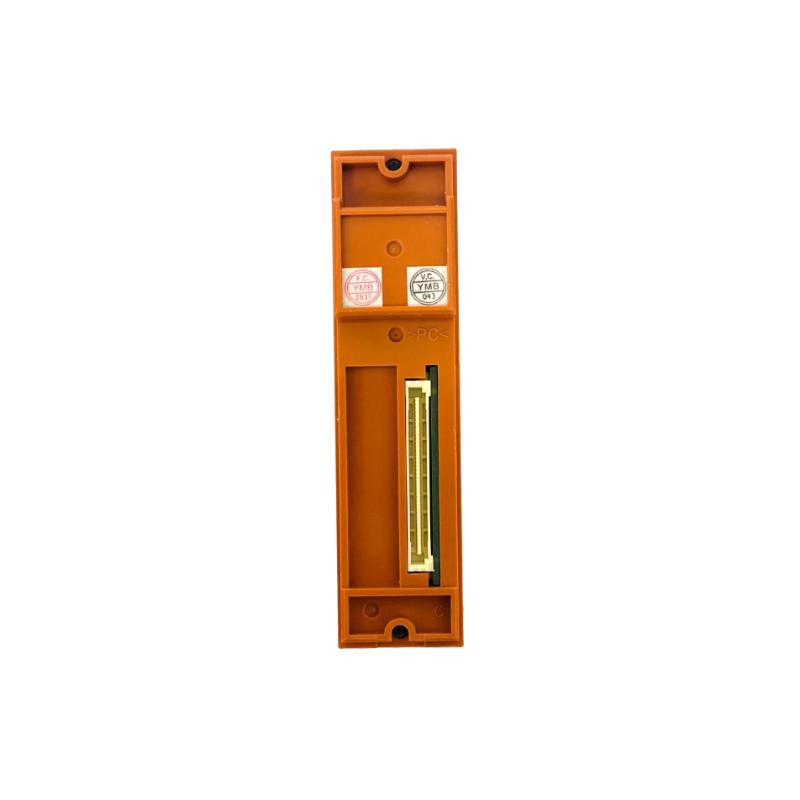

The Yokogawa SAV144 is a 16-channel isolated analog input module used in Yokogawa ProSafe-RS Safety Instrumented Systems (SIS) and related CENTUM / safety node architectures.
It is designed to acquire voltage-based process signals (1–5 V / 1–10 V) from field instruments such as transmitters, pressure sensors, and monitoring devices. The module ensures high-precision signal conversion with strong electrical isolation, making it suitable for safety-critical and high-integrity automation systems.
SAV144 is widely deployed in ESD, F&G, BMS, and HIPPS applications, where stable analog signal acquisition is essential for plant safety and control reliability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Yokogawa |
| Model | SAV144 |
| Product Type | Analog Input Module |
| System Compatibility | ProSafe-RS / CENTUM safety node |
| Input Channels | 16 channels (isolated) |
| Input Signal Range | 1–5 V / 1–10 V DC |
| Permissible Input | ±30 V |
| Accuracy | ±4 mV (1–5 V), ±9 mV (1–10 V) |
| Data Update Time | ~40 ms |
| Input Impedance | 1 MΩ (powered) / 100 kΩ (unpowered) |
| Withstand Voltage | 1.5 kV AC (1 minute) |
| Power Consumption | 5 V DC / 24 V DC system dependent |
SAV144 is specifically engineered for high-reliability voltage signal acquisition in safety systems with module-level isolation per channel.
Physical Characteristics
| Item | Specification |
|---|---|
| Dimensions (W × H × D) | Approx. 105 × 136 × 19 mm (varies slightly by terminal type) |
| Weight | Approx. 0.24–0.29 kg |
| Mounting Type | Rack / safety node installation |
| Structure | Plug-in industrial I/O module |
| Wiring Options | Terminal block / MIL cable / KS cable system |
Recommended Related Models
- Yokogawa SAI533 – analog output module (4–20 mA)
- Yokogawa SAT145 – thermocouple input module
- Yokogawa SAR145 – RTD input module
- Yokogawa SDV144 – digital input module
- Yokogawa SDV531 – digital output module
