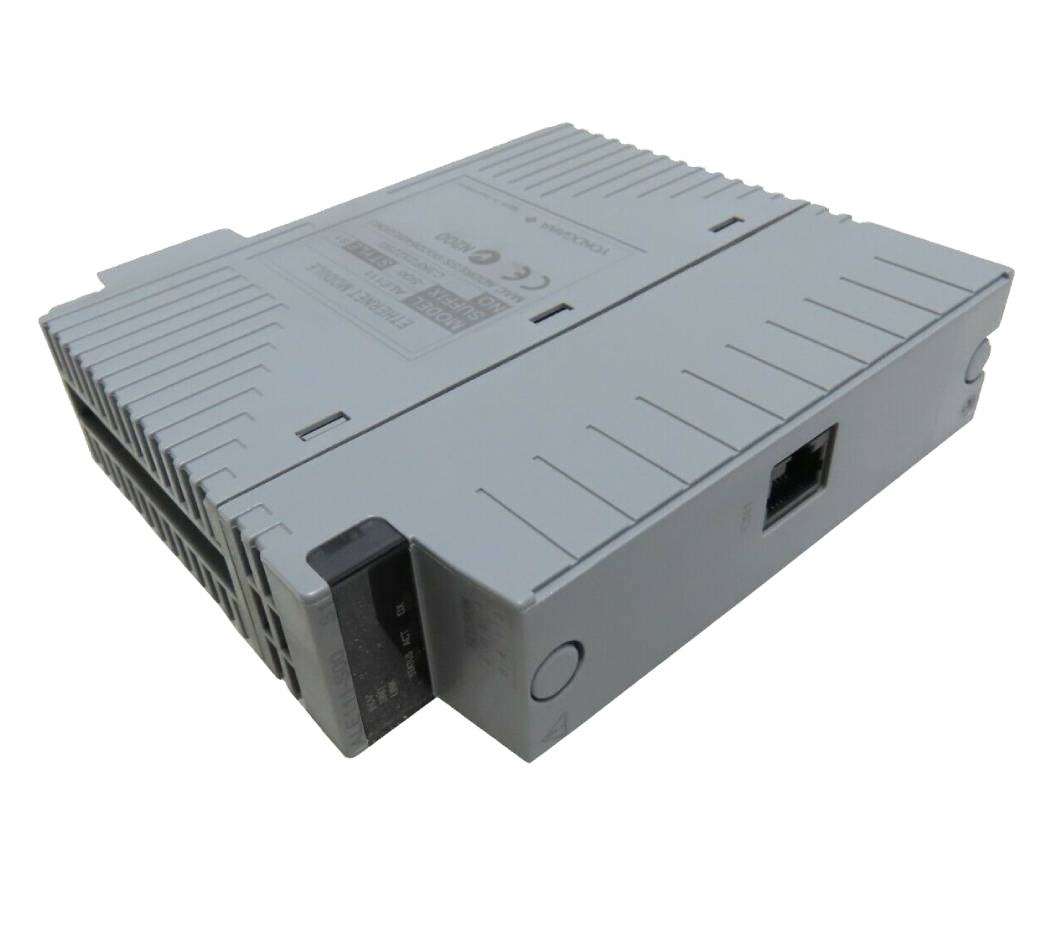

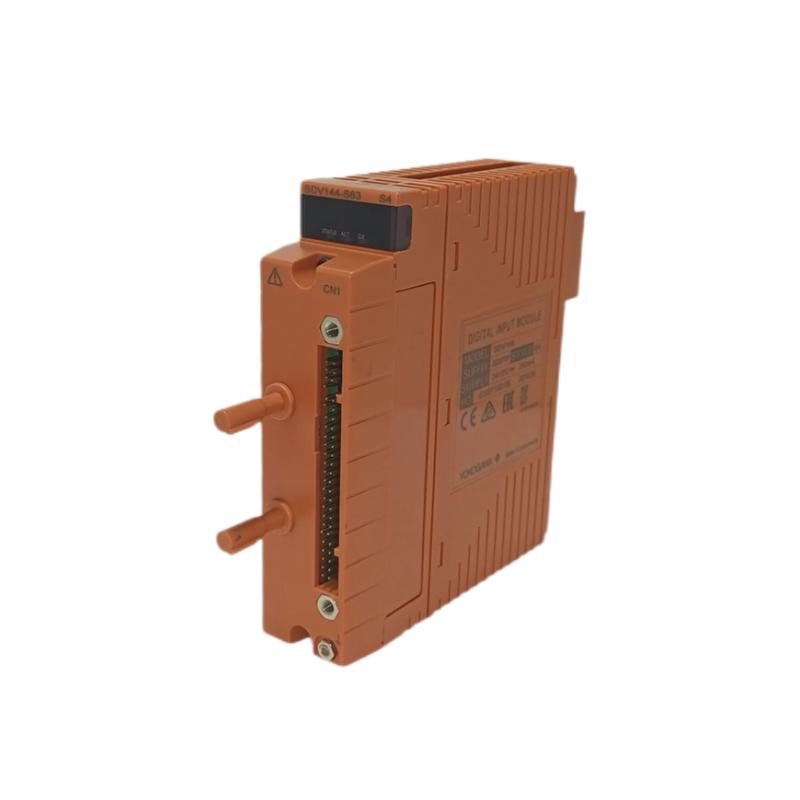

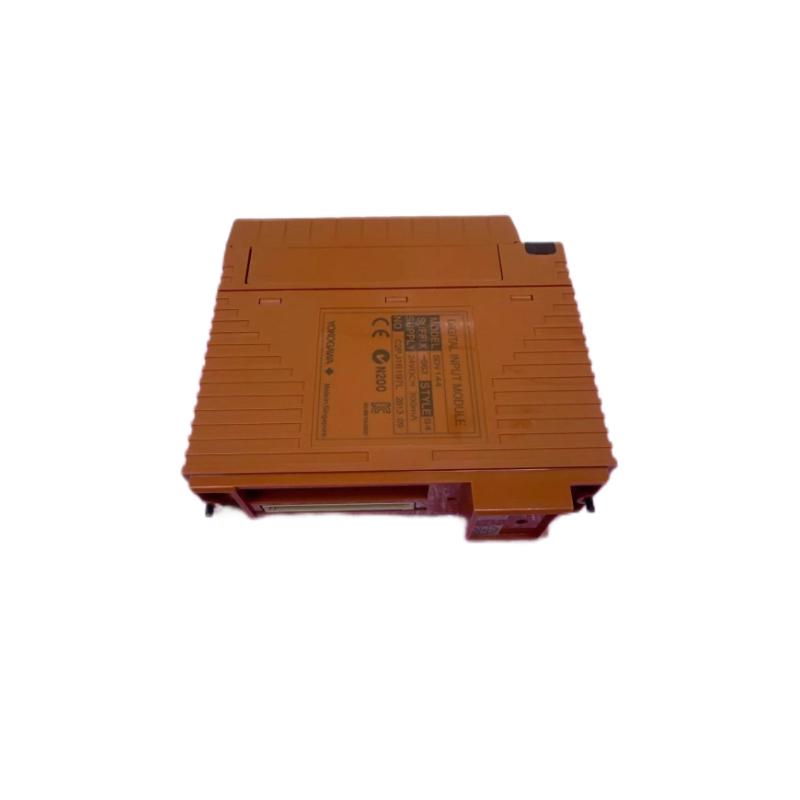

The Yokogawa SAV144-S63 is a 16-channel isolated analog input module designed for Yokogawa ProSafe-RS Safety Instrumented Systems (SIS) and related DCS safety architectures.
It is used to acquire high-precision voltage signals (1–5 V / 1–10 V) from field instruments such as transmitters, pressure sensors, and monitoring devices. The module provides strong electrical isolation and fast signal processing, making it suitable for critical safety applications including ESD, F&G, BMS, and HIPPS systems.
The “-S63” suffix typically indicates a configuration with signal cable interface adapter support and ISA G3 environmental compliance (-20°C to +70°C), making it suitable for harsh industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Yokogawa |
| Model | SAV144-S63 |
| Product Type | Analog Input Module |
| System | ProSafe-RS / Safety Node |
| Channels | 16 channels (module isolated) |
| Input Signal | 1–5 V / 1–10 V DC |
| Permissible Input | ±30 V |
| Accuracy | ±4 mV (1–5 V), ±9 mV (1–10 V) |
| Data Update Time | ~40 ms |
| Input Impedance | 1 MΩ (powered) / 100 kΩ (unpowered) |
| Withstand Voltage | 1.5 kV AC (1 min) |
| Power Consumption | ~300 mA (system dependent) |
This module is widely used for reliable analog signal acquisition in safety-critical control loops, ensuring stable measurement even in electrically noisy environments.
Physical Characteristics
| Item | Specification |
|---|---|
| Dimensions (W × H × D) | Approx. 130 × 124 × 32.8 mm |
| Weight | Approx. 0.29 – 0.41 kg |
| Mounting Type | Rack / safety node installation |
| Structure | Plug-in modular I/O card |
| Wiring Interface | Terminal block / MIL cable / signal cable (AKB331) |
Recommended Related Models
- Yokogawa SAV144-S33 – standard temperature variant
- Yokogawa SDV144-S63 – digital input module
- Yokogawa SAI533 – analog output module
- Yokogawa SAT145 – thermocouple input module
- Yokogawa SAR145 – RTD input module
