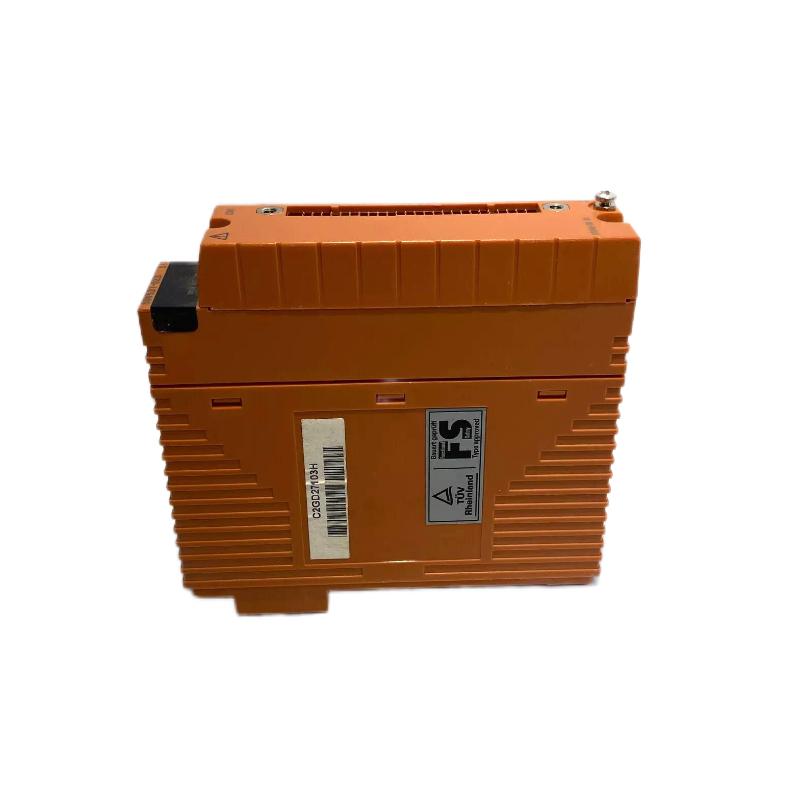

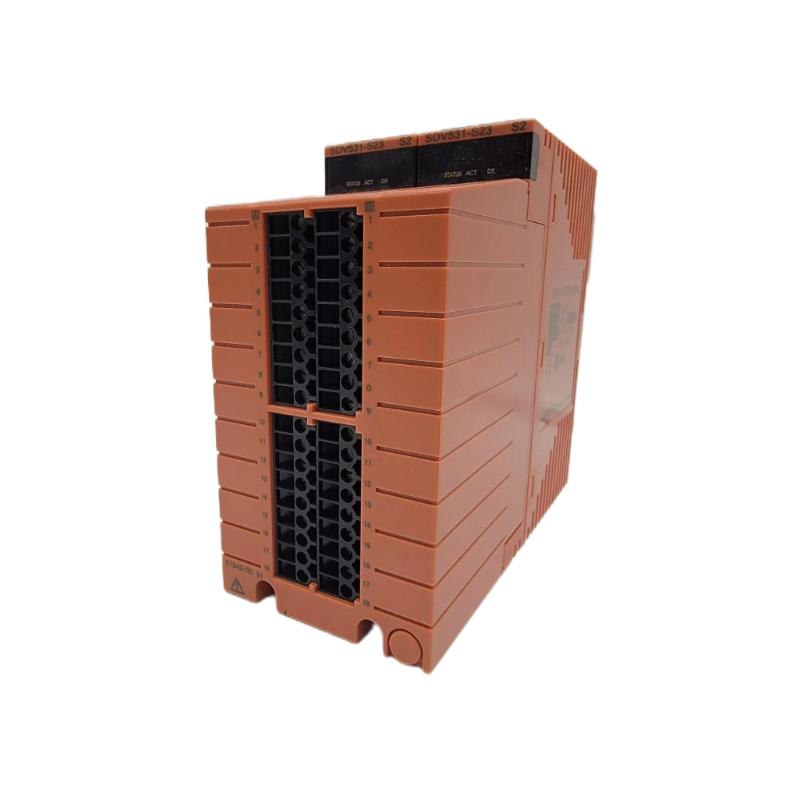

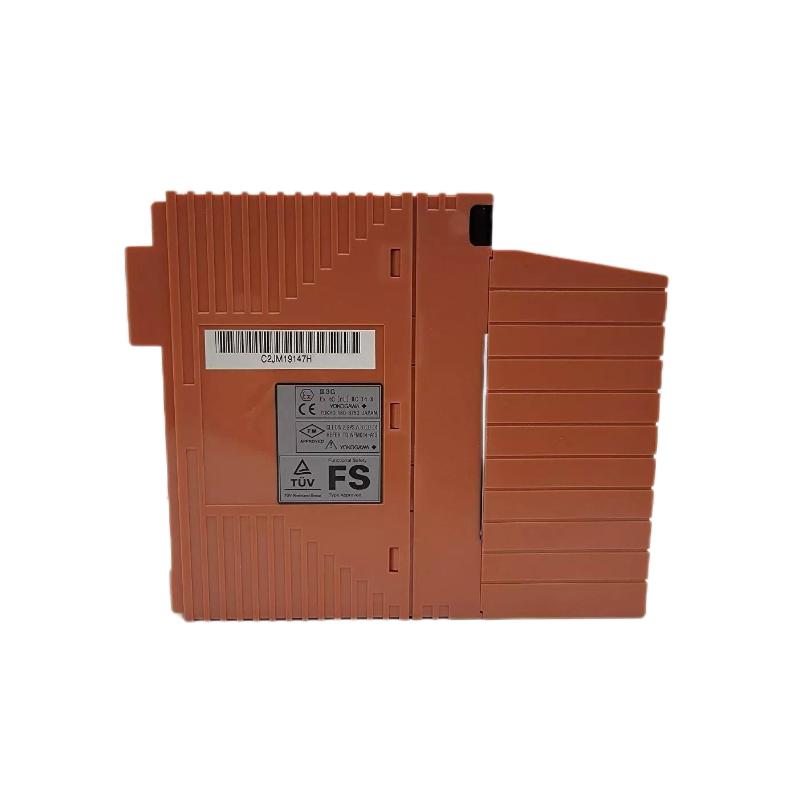

The Yokogawa SDV531-S13 is a digital output module designed for Yokogawa ProSafe-RS Safety Instrumented Systems (SIS) and compatible CENTUM safety node architectures.
It provides reliable 24 V DC ON/OFF control signals to field devices such as solenoid valves, relays, alarms, and actuators. The SDV531-S13 is engineered for safety-critical applications, ensuring stable signal transmission and high operational reliability in environments like ESD, F&G, and BMS systems.
The suffix code “-S13” represents a specific configuration within the SDV531 series, typically indicating:
- S = Standard model
- 1 = Pressure clamp terminal block connection
- 3 = ISA G3 environmental rating (-20°C to +70°C)
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Yokogawa |
| Model | SDV531-S13 |
| Product Type | Digital Output Module |
| System Compatibility | ProSafe-RS / CENTUM safety node |
| Output Channels | 8 channels (module isolated) |
| Output Voltage | 24 V DC |
| Output Type | Current source |
| Max Load Current | 0.6 A per channel (4.8 A total) |
| Min Load Current | 35 mA |
| Leakage Current (OFF) | ≤ 1.6 mA |
| Load Resistance | 40 – 685 Ω |
| External Power Supply | 24 V DC ±20% |
| Response Time | ≤ 30 ms |
| Withstand Voltage | 2 kV AC (1 min) |
| Operating Temperature | -20°C to +70°C |
This module is optimized for stable digital control output in safety systems, ensuring reliable performance under industrial conditions.
Physical Characteristics
| Item | Specification |
|---|---|
| Dimensions (W × H × D) | Approx. 107.5 × 130 × 32.8 mm |
| Weight | Approx. 0.28 – 0.34 kg |
| Mounting Type | Rack / safety node installation |
| Structure | Plug-in modular I/O card |
| Wiring Interface | Pressure clamp terminal (S13 variant) |
