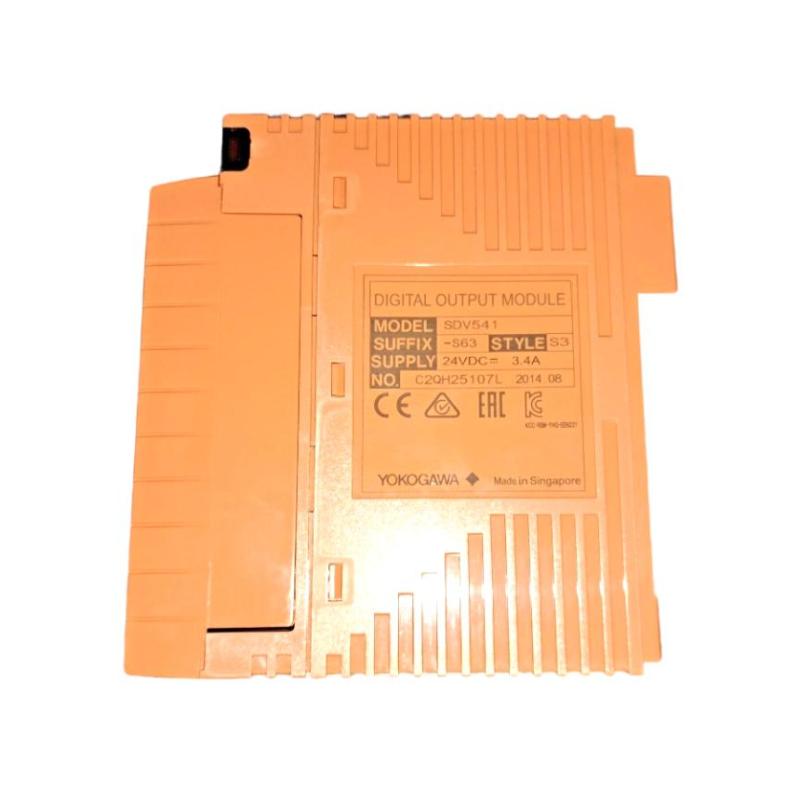

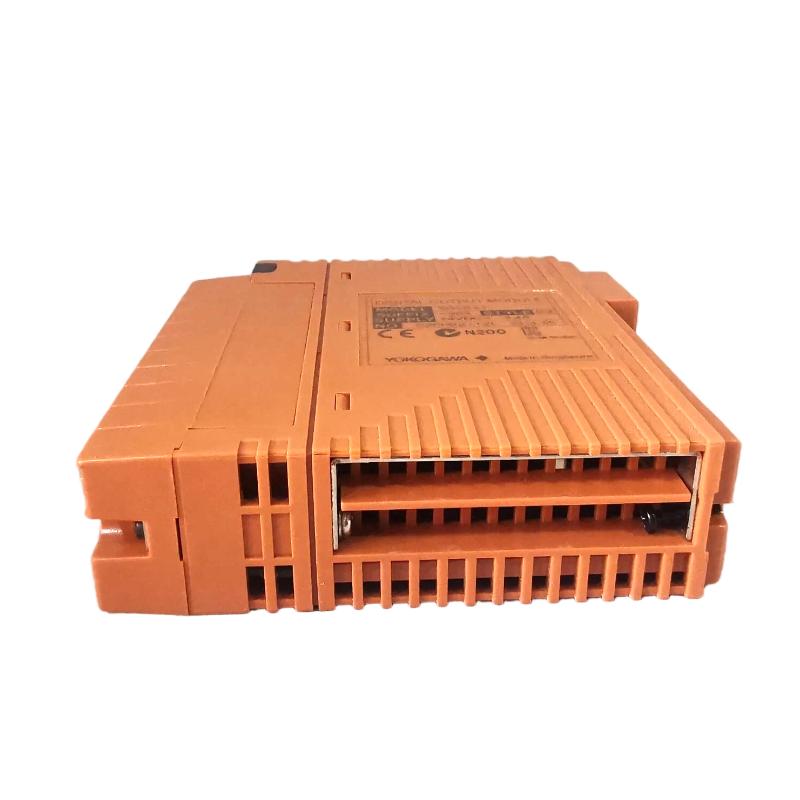

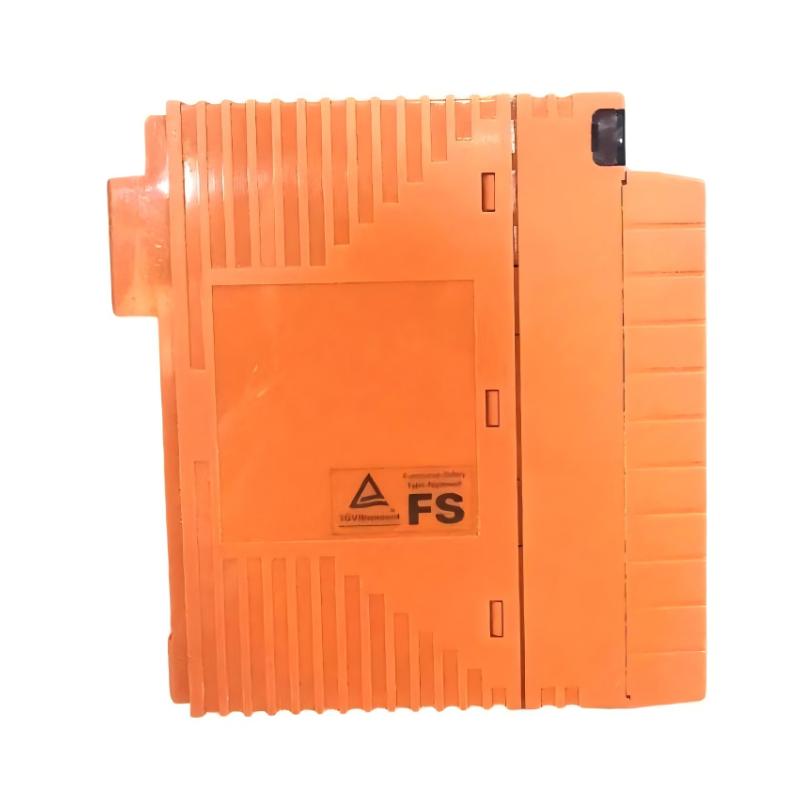

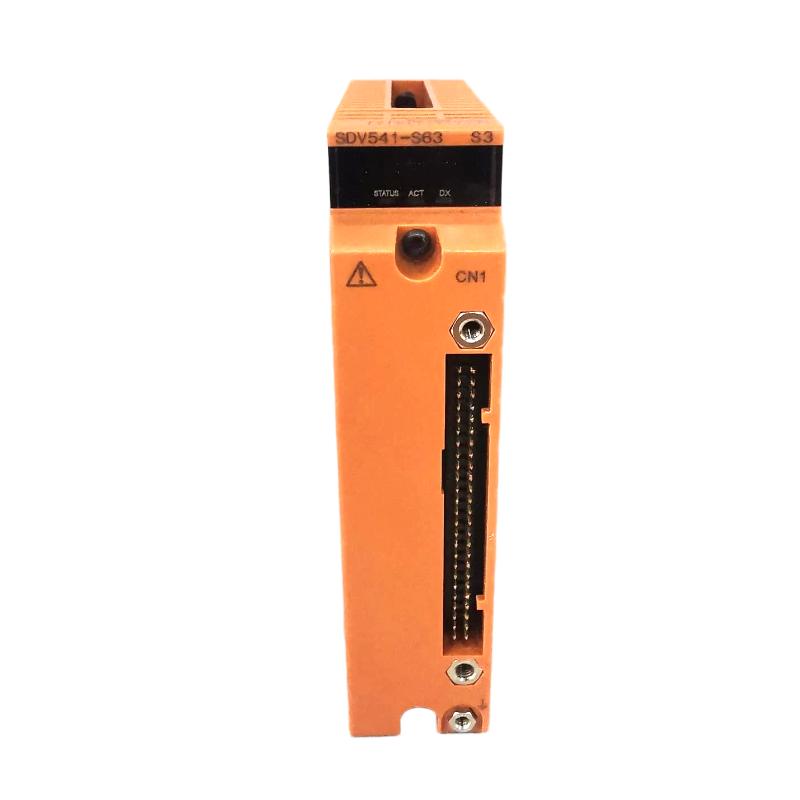

The Yokogawa SDV541 is a 16-channel digital output module designed for Yokogawa ProSafe-RS Safety Instrumented Systems (SIS) and compatible CENTUM CS / CENTUM VP architectures.
It is used to transmit 24 V DC ON/OFF control signals to field devices such as relays, solenoid valves, alarms, and actuators. Compared to the smaller SDV531 (8-channel), the SDV541 provides higher channel density (16 outputs), making it ideal for large-scale safety and control systems.
Engineered for mission-critical environments, the SDV541 ensures high reliability, strong electrical isolation, and stable operation under harsh industrial conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Yokogawa |
| Model | SDV541 |
| Product Type | Digital Output Module |
| System Compatibility | ProSafe-RS / CENTUM CS / CENTUM VP |
| Output Channels | 16 channels (module isolated) |
| Output Voltage | 24 V DC |
| Output Type | Current source |
| Max Load Current | 0.2 A per channel (3.2 A total) |
| Min Load Current | 35 mA |
| Leakage Current (OFF) | ≤ 1.6 mA |
| Load Resistance | 120 – 685 Ω |
| External Power Supply | 24 V DC (+20% / -10%) |
| Response Time | ≤ 30 ms |
| Withstand Voltage | 2 kV AC (1 min) |
| Power Consumption | 300 mA (5 V DC), 150 mA (24 V DC) |
The SDV541 provides high-density digital control output with built-in isolation and diagnostics, ensuring reliable performance in safety-critical systems
Physical Characteristics
| Item | Specification |
|---|---|
| Dimensions (W × H × D) | Approx. 107.5 × 130 × 32.8 mm |
| Weight | Approx. 0.29 – 0.31 kg |
| Mounting Type | Rack / safety node installation |
| Structure | Plug-in modular I/O card |
| Wiring Options | Pressure clamp / MIL cable / signal cable (AKB331) |
Standard Yokogawa datasheets confirm compact module dimensions suitable for dense control cabinets
Recommended Related Models
- Yokogawa SDV531 – 8-channel digital output module
- Yokogawa SDV541-S53 – updated variant (replacement model)
- Yokogawa SDV144 – digital input module
- Yokogawa SAI533 – analog output module
- Yokogawa SCB110-S0 – wiring diagnostic adapter
