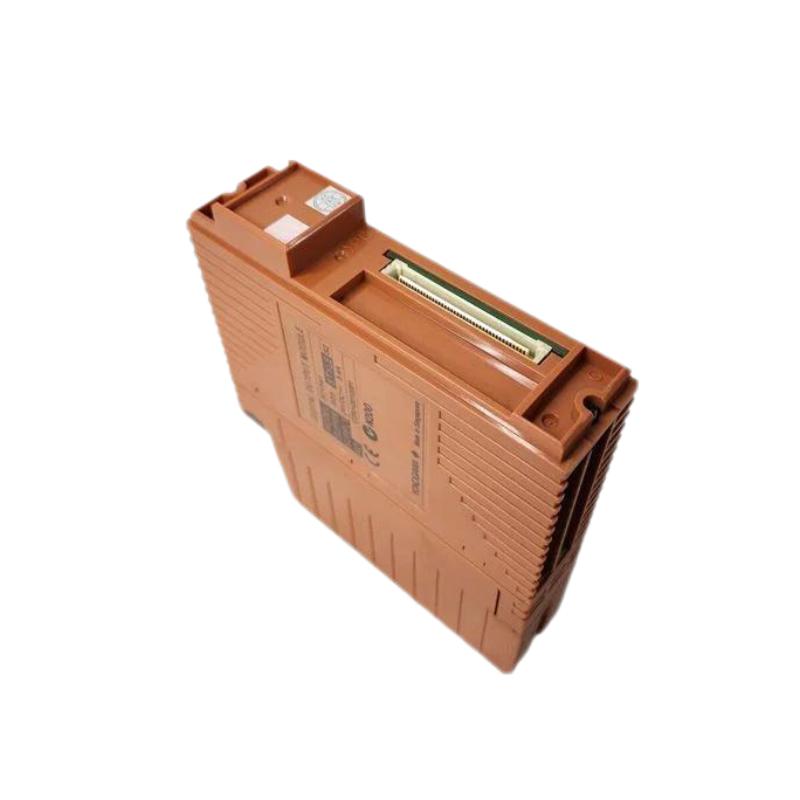

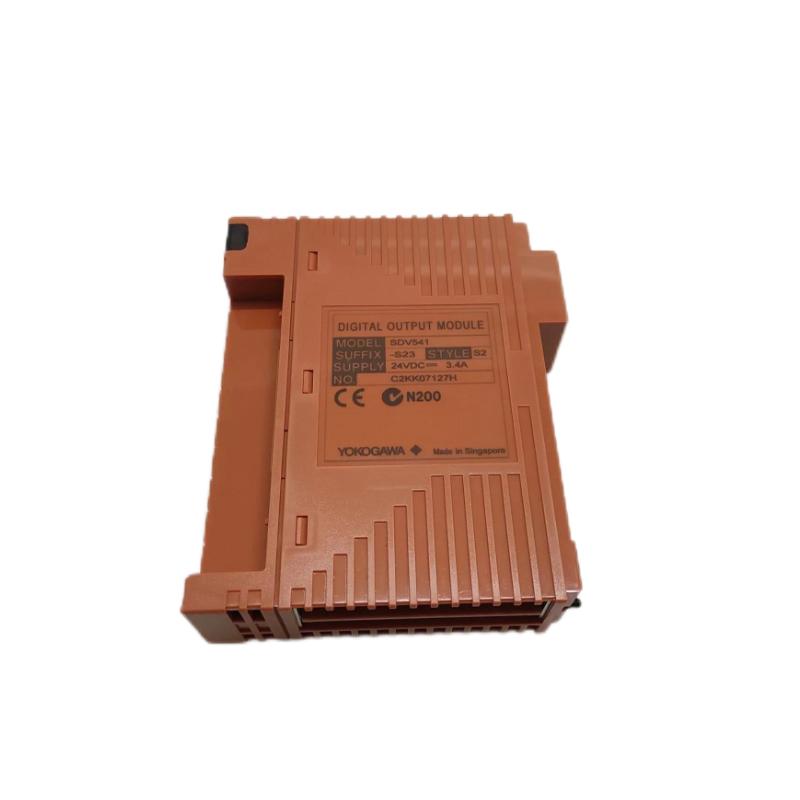

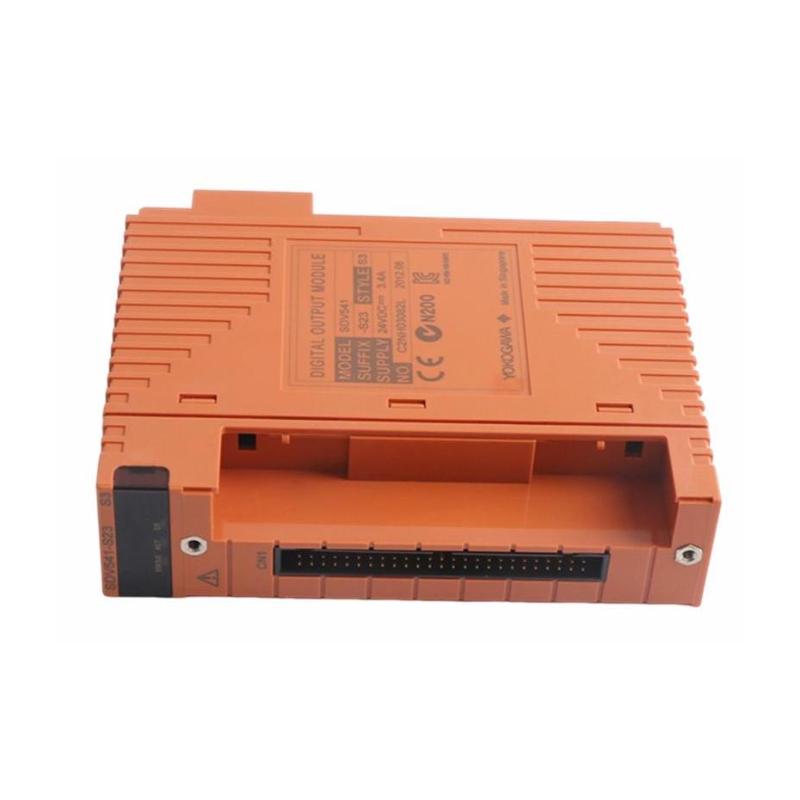

The Yokogawa SDV541-S23 is a 16-channel digital output module used in Yokogawa ProSafe-RS Safety Instrumented Systems (SIS) and compatible CENTUM CS / CENTUM VP DCS systems.
It provides 24 V DC ON/OFF control signals to field devices such as solenoid valves, relays, alarms, and actuators. The module is designed for high-reliability safety applications including ESD, F&G, BMS, and HIPPS systems, where stable output switching is critical.
The suffix “-S23” defines a configuration variant typically indicating:
- S = Standard type
- 2 = MIL cable / pressure clamp terminal option
- 3 = ISA G3 environmental rating (-20°C to +70°C)
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Yokogawa |
| Model | SDV541-S23 |
| Product Type | Digital Output Module |
| System Compatibility | ProSafe-RS / CENTUM safety node |
| Output Channels | 16 channels (isolated) |
| Output Voltage | 24 V DC |
| Output Type | Current source |
| Max Load Current | 0.2 A per channel (3.2 A total) |
| Min Load Current | 35 mA |
| Leakage Current (OFF) | ≤ 1.6 mA |
| Load Resistance | 120 – 685 Ω |
| External Power Supply | 24 V DC ±20% |
| Response Time | ≤ 30 ms |
| Withstand Voltage | 2 kV AC (1 min) |
| Power Consumption | 300 mA (5 V DC), 150 mA (24 V DC) |
The module supports module-level isolation and stable current-source outputs, ensuring reliable operation in safety-critical environments.
Physical Characteristics
| Item | Specification |
|---|---|
| Dimensions (W × H × D) | Approx. 107.5 × 130 × 32.8 mm |
| Weight | Approx. 0.29 – 0.31 kg |
| Mounting Type | Rack / safety node installation |
| Structure | Plug-in modular I/O card |
| Wiring Options | Pressure clamp / MIL cable / signal cable (AKB331) |
