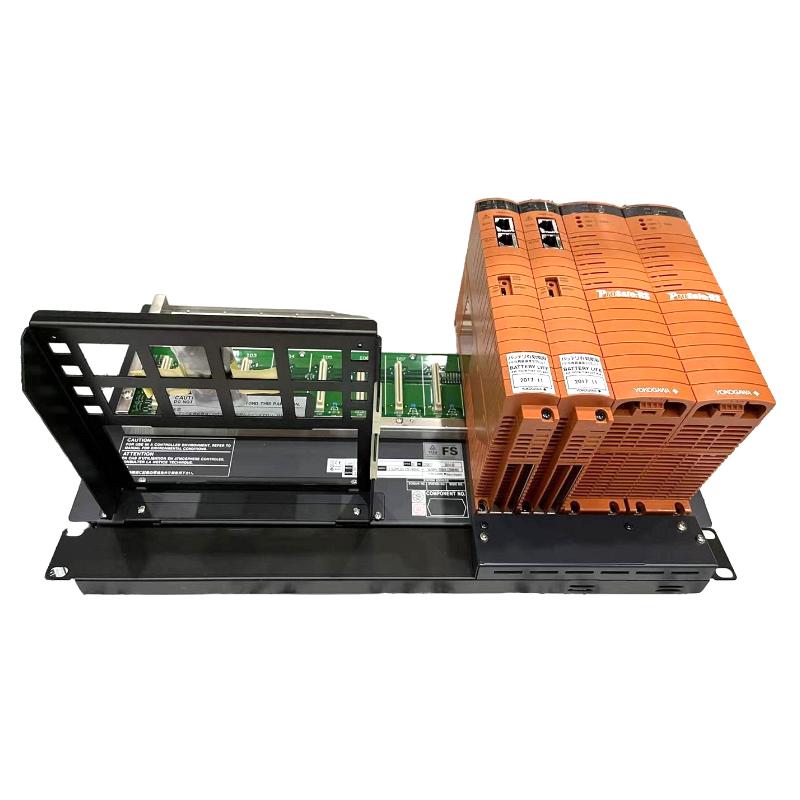

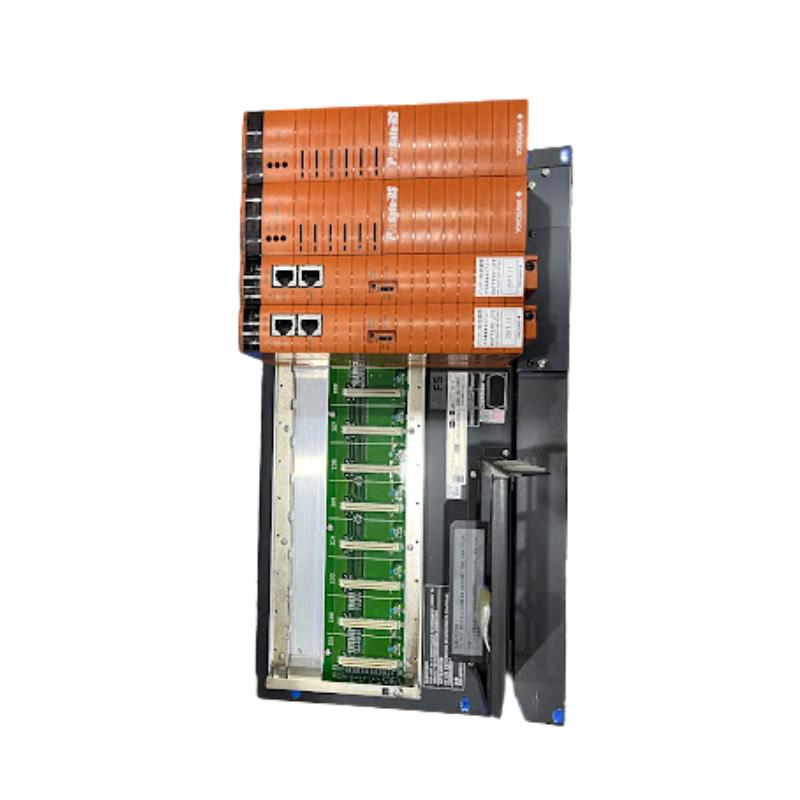

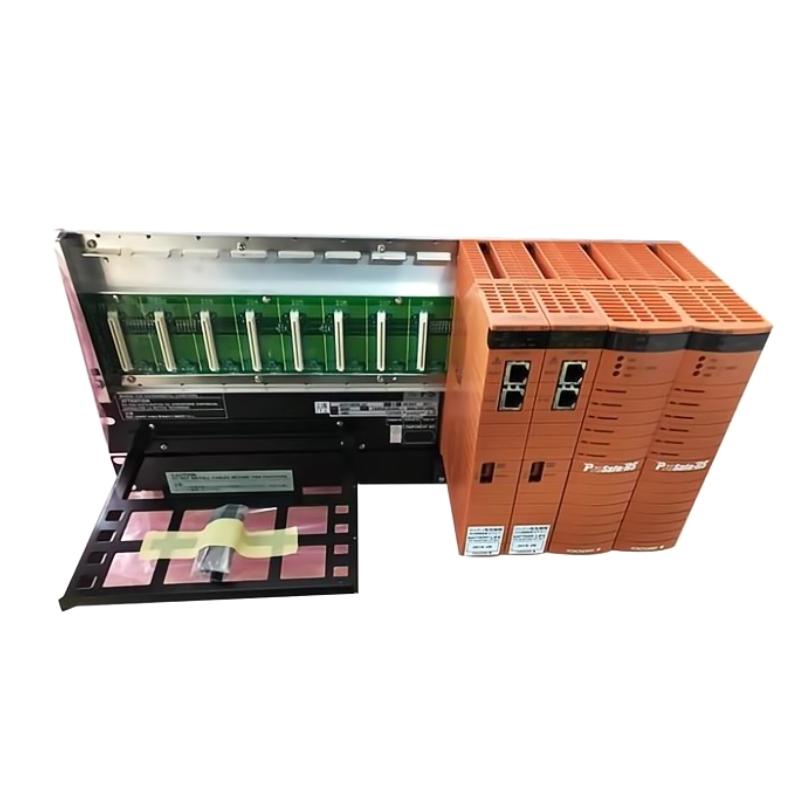

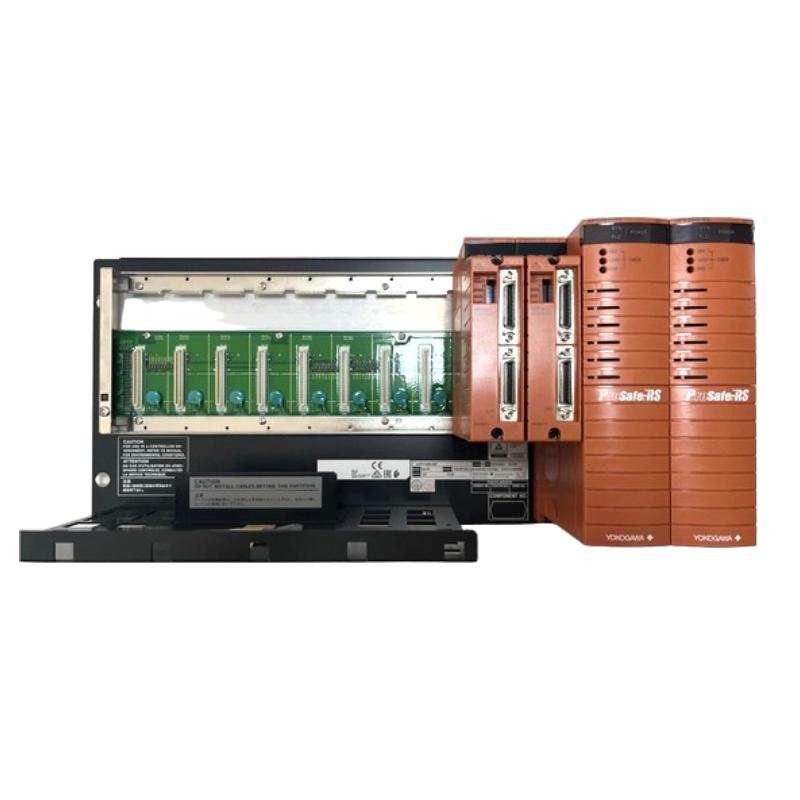

The Yokogawa SSC60D is a Safety System Controller (SIS CPU module) used in Yokogawa ProSafe-RS (Safety Instrumented System).
It represents a higher-capacity / newer-generation safety controller class compared with earlier SSC10 series, and is used for larger or more complex safety applications.
Typical functions include:
- Emergency Shutdown System (ESD)
- Fire & Gas System (F&G)
- Burner Management System (BMS)
- High-integrity process interlocks
- Complex multi-node safety logic processing
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Yokogawa |
| Model | SSC60D |
| Product Type | Safety System Controller (SIS CPU) |
| System Platform | ProSafe-RS |
| Processing Capability | Higher performance class (vs SSC10 series) |
| Function | Safety logic execution / system control |
| Architecture | Redundant fault-tolerant CPU system |
| Communication | ESB bus / system network (Vnet/IP depending on system) |
| Redundancy | Supported (dual CPU configuration) |
| Diagnostics | Advanced self-diagnostics + online monitoring |
| Safety Level | Designed for SIL3 system architecture |
Physical Characteristics
| Item | Specification |
|---|---|
| Dimensions (W × H × D) | Approx. 130 × 100 × 40 mm (module class) |
| Weight | ≈ 0.9 – 1.3 kg |
| Mounting Type | Rack-mounted CPU module |
| Installation | ProSafe-RS safety cabinet (SCS) |
| Cooling | Cabinet natural ventilation |
System Role
The SSC60D acts as the high-performance safety logic engine:
Field Inputs → Input Modules → SSC60D (advanced logic processing) → Output Modules → Final shutdown devices
It provides:
- High-speed safety logic execution
- Large-scale interlock handling
- Multi-node safety coordination
- Redundant synchronization between CPU pairs
- Continuous system diagnostics and fault detection
Key Features
- High-capacity SIS controller for complex systems
- Redundant CPU architecture (high availability)
- Advanced diagnostics and fault isolation
- Deterministic safety execution (real-time response)
- Designed for SIL3 safety system integration
- Supports large-scale ProSafe-RS architectures
- Stable operation for 24/7 industrial environments
