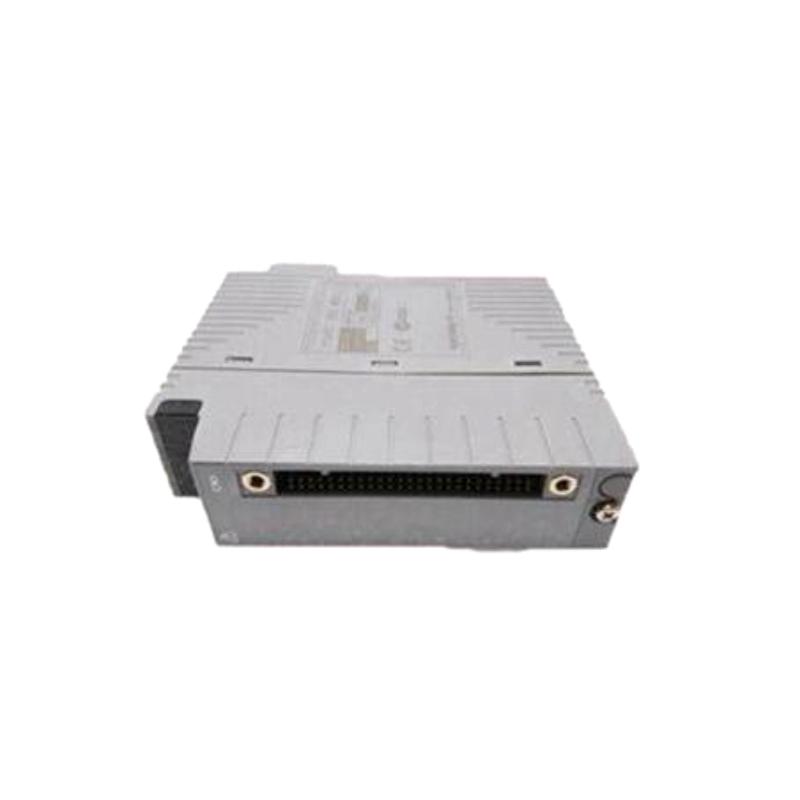

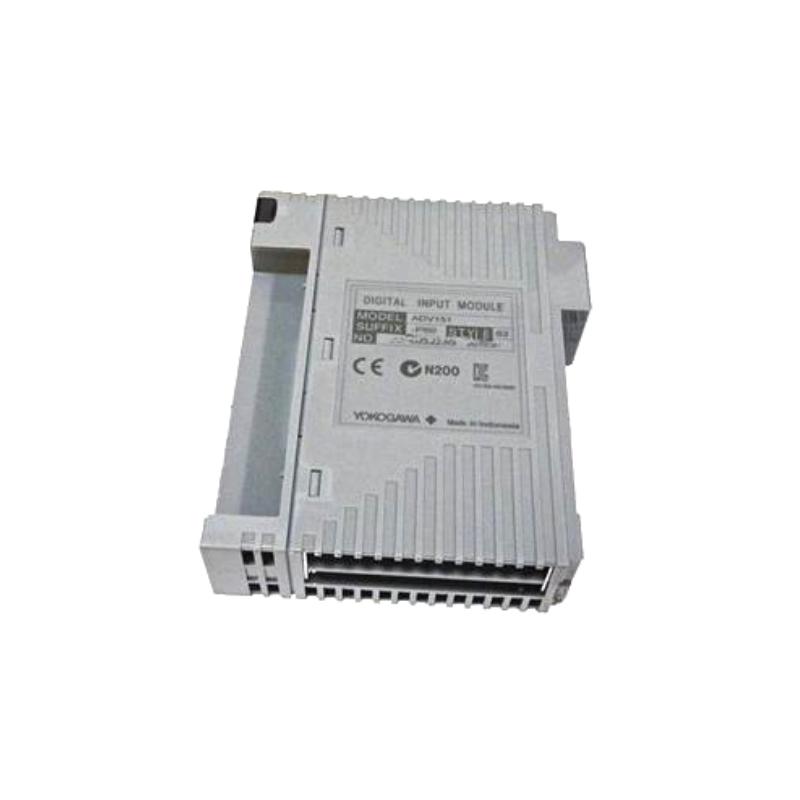

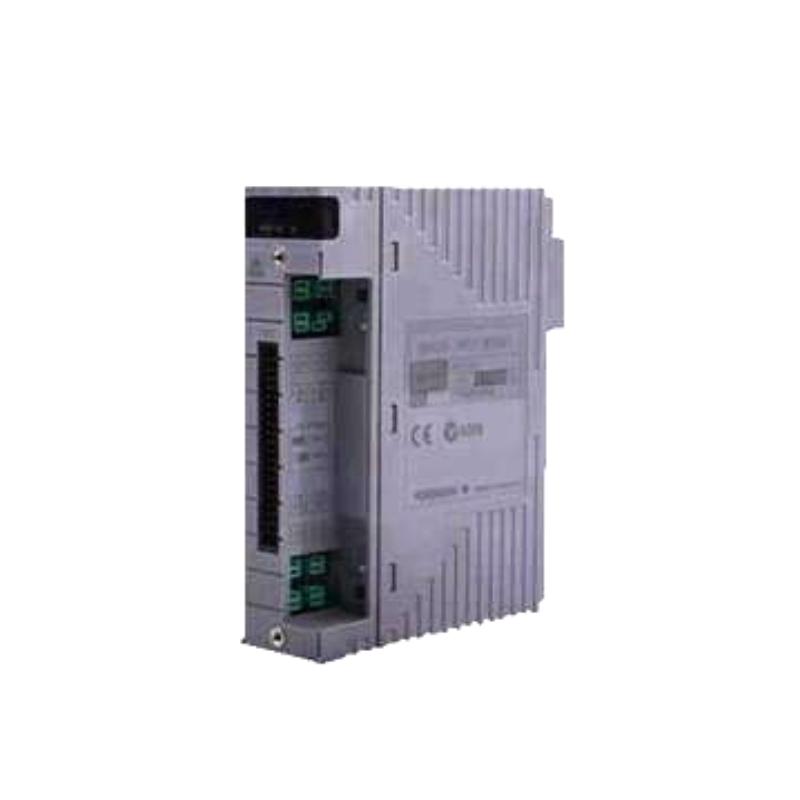

The Yokogawa Y9612YU is a field control / I/O-related module accessory used in Yokogawa CENTUM / ProSafe-RS / FIO system architectures.
In Yokogawa naming convention, the “Y96xx” series is typically associated with system interface, terminal, or auxiliary modules used in control cabinet integration, rather than a main CPU or power unit.
The Y9612YU is used as part of the system wiring / interface layer to support reliable signal connection between field devices and control modules.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Yokogawa |
| Model | Y9612YU |
| Product Type | System interface / auxiliary module |
| System Compatibility | CENTUM VP / ProSafe-RS / FIO |
| Function | Signal interface / system integration support |
| Signal Type | Digital / system bus dependent (configuration-based) |
| Mounting | Rack / cabinet mounting (system dependent) |
| Connection | Backplane / terminal interface |
| Redundancy | System-dependent (via architecture, not standalone) |
| Diagnostics | Provided through host system (CENTUM / SIS) |
Physical Characteristics
| Item | Specification |
|---|---|
| Dimensions (W × H × D) | Approx. 100 × 130 × 40 mm (typical Y96xx class) |
| Weight | ≈ 0.3 – 0.8 kg |
| Installation | Control cabinet / system rack |
| Material | Industrial-grade housing |
| Cooling | Cabinet ventilation |
System Role
The Y9612YU works as a supporting interface module within Yokogawa control architecture:
Field devices → Terminal / interface layer (Y9612YU) → I/O modules → CPU (SSC / SCS)
Its main roles:
- Signal routing and interface support
- Cabinet wiring simplification
- System integration between field and control modules
- Supporting stable signal transmission in DCS/SIS systems
Key Features
- Designed for Yokogawa control system integration
- Stable industrial signal interface support
- Compatible with CENTUM / ProSafe-RS architecture
- Modular cabinet installation
- High reliability for continuous operation
- Supports system-level redundancy indirectly
