Brand:Yokogawa Electric Item No.:AVR10D-0022020 Product Origin:Japan Product Dimensions:482.6 x 132.5 x 169 mm Product Weight:5.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

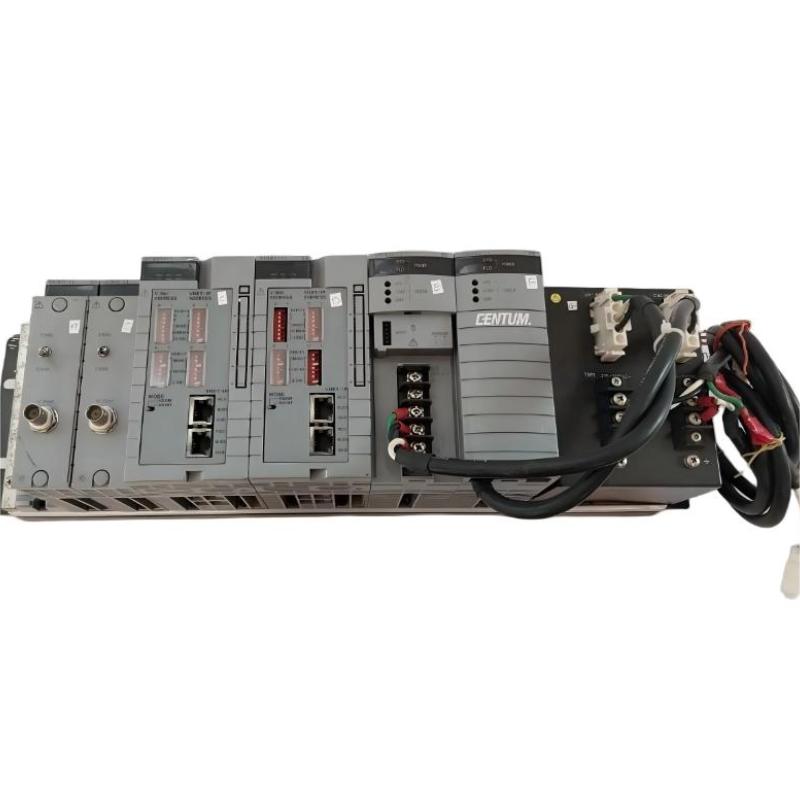

The Yokogawa AVR10D-0022020 full-duplex V2 router is a high-reliability industrial communication module used in CENTUM control systems. It enables seamless data exchange between different network generations, ensuring stable integration across distributed control architectures.
Designed for mission-critical process industries, it provides robust routing performance with redundancy features that support uninterrupted industrial operations.
Technical Specifications
Parameter
Specification
Product Model
AVR10D-0022020
Product Type
Full-Duplex V2 Router / Duplexed Vnet Router
Network Side (Vnet/IP)
100 Mbps Full Duplex, RJ45 (100Base-TX)
Network Side (Vnet/VLnet)
10 Mbps Coaxial BNC
Architecture
Duplexed redundant communication system

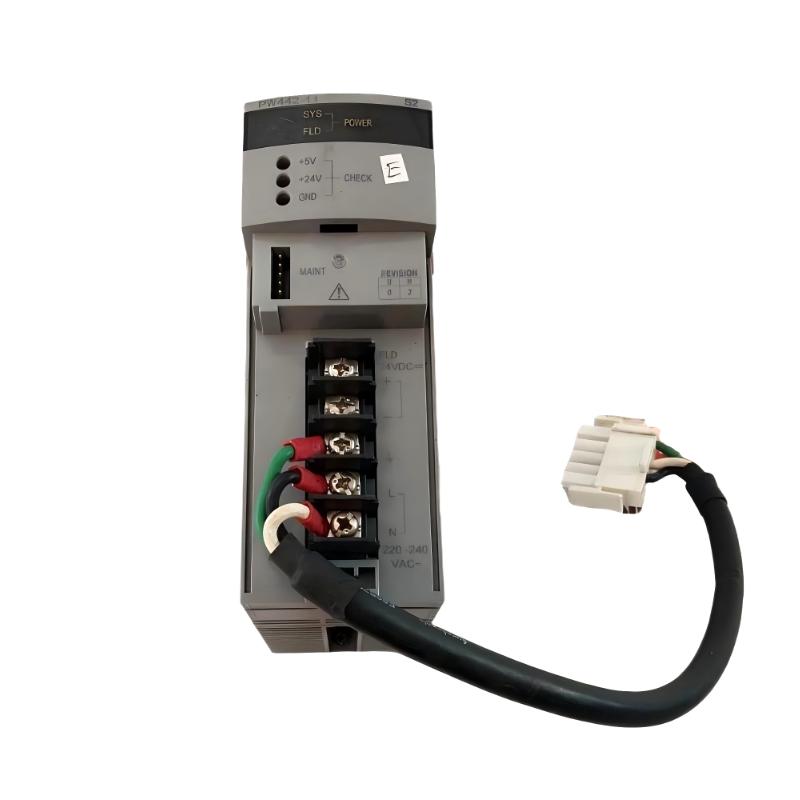

Power Supply
100–120 V AC / 220–240 V AC / 24 V DC
Power Consumption
80–110 VA (depending on configuration)
Mounting Type
19-inch rack mount
Operating Temperature
0°C to 50°C
Humidity
10% to 90% RH (non-condensing)
Dimensions (W × H × D)
482.6 × 132.5 × 169 mm
Weight
5.8 kg / 12.79 lb
Applications
The Yokogawa AVR10D-0022020 full-duplex V2 router is designed for high-availability industrial communication networks where reliable data exchange between control systems is mission-critical. It serves as a bridge between Vnet/IP and legacy Vnet/VLnet architectures within Yokogawa CENTUM environments.
Typical applications include:
Distributed process control systems in oil & gas facilities
Power generation monitoring and supervisory control networks
Legacy-to-modern control system migration projects
Its duplexed architecture ensures continuous communication flow even in redundant system configurations, making it suitable for continuous-process industries.
Advantages
The AVR10D-0022020 is built for industrial-grade reliability, ensuring uninterrupted communication across heterogeneous control networks.
Full-duplex high-speed communication ensuring stable data throughput
Duplexed Vnet architecture for enhanced system redundancy
Seamless integration between Vnet/IP and legacy Vnet/VLnet systems
High system availability design reducing risk of communication downtime
Rack-mountable 19-inch industrial form factor for standardized deployment
Proven robustness in continuous 24/7 process control environments
It is widely adopted in critical infrastructure where communication failure is not acceptable.
Technical FAQs (10 Technical Questions)
Q1: What is the main function of AVR10D-0022020?
It connects Vnet/IP systems with Vnet and VLnet domains in CENTUM architectures.
Q2: Does it support redundancy?
Yes, it supports duplexed (redundant) communication paths for high availability.
Q3: What communication speed does it support?
Vnet/IP side supports 100 Mbps full duplex communication.
Q4: Is it compatible with CENTUM VP systems?
Yes, it is specifically designed for CENTUM VP and related Yokogawa systems.
Q5: Can it integrate legacy systems?
Yes, it bridges older CENTUM CS 3000 / CS 1000 systems with modern platforms.
Q6: What type of network interfaces does it use?

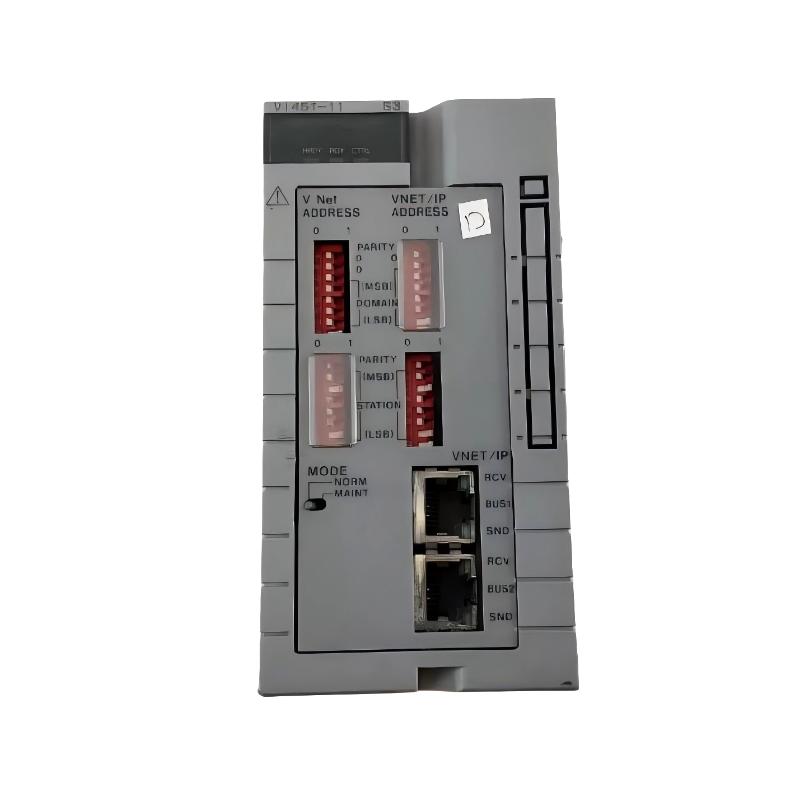

It uses RJ45 for Vnet/IP and BNC coaxial connections for Vnet/VLnet.
Q7: Is special configuration software required?
Yes, Yokogawa engineering tools are required for system configuration.
Q8: What ensures its communication stability?
Duplexed routing architecture and redundant communication paths.
Q9: Can it be used in harsh environments?
Yes, it is designed for industrial control cabinet installation with controlled environments.
Q10: Does it support continuous operation?
Yes, it is engineered for 24/7 mission-critical industrial use.
