Brand:Yokogawa Electric Item No.:AVR10D-Q22021 Product Origin:Japan Product Dimensions:482.6 x 132.5 x 169 mm Product Weight:5.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

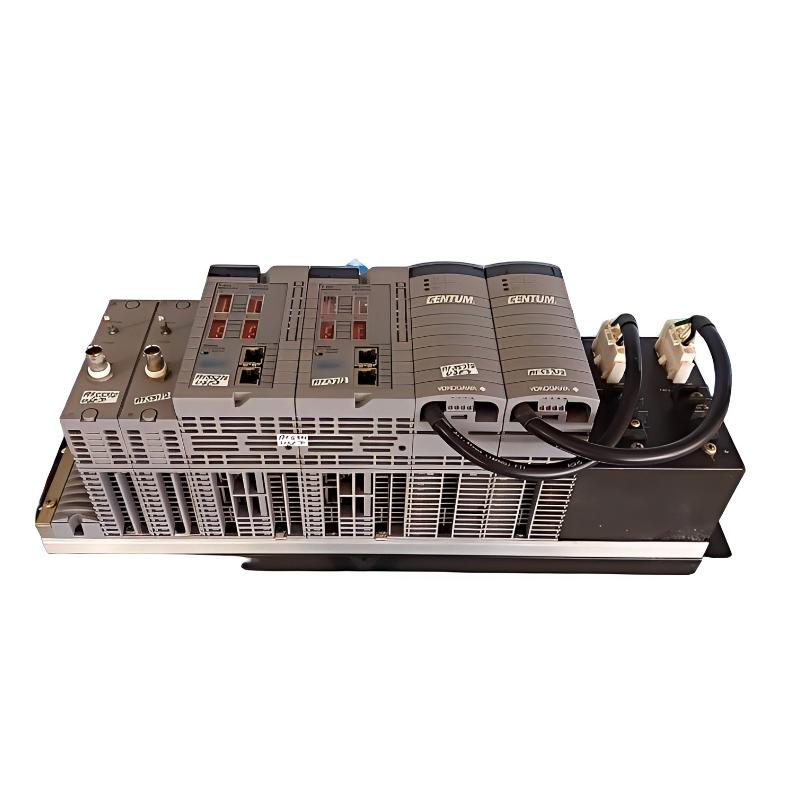

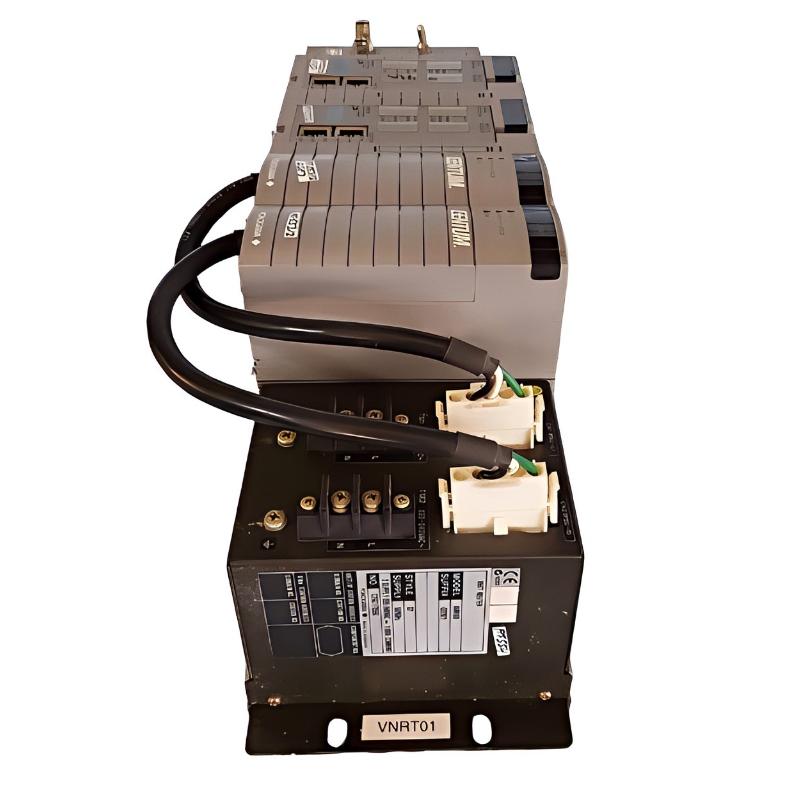

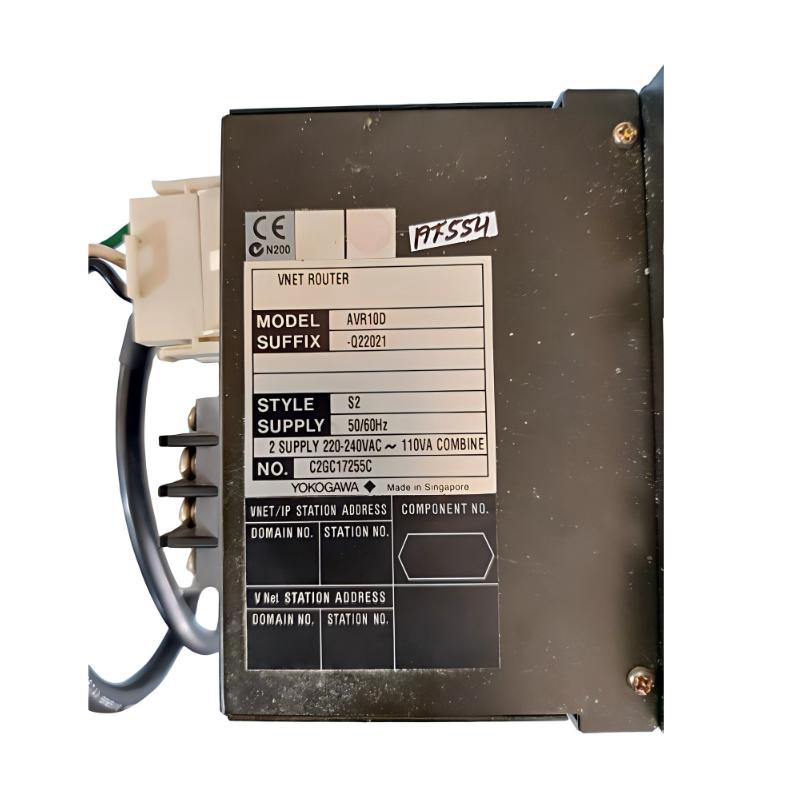

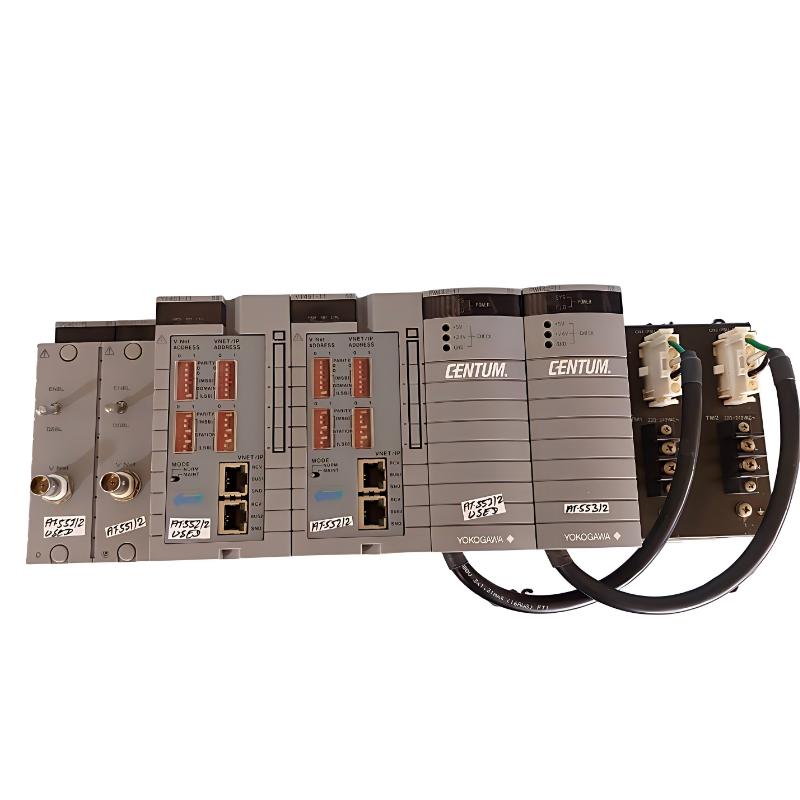

The Yokogawa AVR10D-Q22021 is a dual redundant V2V router designed for advanced industrial communication networks. It plays a key role in connecting different generations of Yokogawa control systems, ensuring seamless data flow across distributed process environments.
Built for mission-critical applications, it provides high reliability, redundancy, and stable routing performance for large-scale automation infrastructures.
Technical Specifications
Parameter
Specification
Product Model
AVR10D-Q22021
Product Type
Dual Redundant V2V / Vnet Router
Communication Network
Vnet/IP, Vnet, VLnet
Architecture
Dual redundant routing system
Data Transmission
Full duplex
Mounting Type
19-inch rack mount
Power Supply
100–120 V AC / 220–240 V AC / 24 V DC (varies by suffix)
Power Consumption
Approx. 80–110 VA
Operating Temperature
0°C to 50°C
Humidity
10%–90% RH (non-condensing)
Dimensions (W × H × D)
482.6 × 132.5 × 169 mm
Weight
5.8 kg / 12.79 lb
Applications
The Yokogawa AVR10D-Q22021 dual redundant V2V router is engineered for mission-critical industrial communication networks where continuous data exchange and system redundancy are essential. It is widely used in large-scale distributed control environments to ensure uninterrupted connectivity between different Vnet-based domains.
Typical applications include:
CENTUM VP distributed control system network integration
Oil & gas refinery automation and supervisory control networks
Petrochemical plant communication backbone systems
Power generation plant control and monitoring infrastructure
Legacy Vnet/VLnet to Vnet/IP hybrid system migration projects
Its dual redundant architecture ensures continuous communication even if one network path fails, making it suitable for high-availability industrial environments.
Advantages
The AVR10D-Q22021 is designed to deliver maximum uptime and stable communication performance in complex industrial control systems.
Dual redundant V2V routing architecture ensures zero single-point communication failure
Seamless integration between Vnet/IP and legacy Vnet/VLnet systems
Full-duplex communication for stable and high-speed data transfer
Industrial-grade reliability for continuous 24/7 operation
Rack-mounted design for standardized control cabinet integration
Proven performance in large-scale distributed automation networks
It is a preferred solution in industries where network downtime directly impacts production safety and efficiency.
Technical FAQs (10 Technical Questions)
Q1: What is the main function of AVR10D-Q22021?
It routes communication between Vnet/IP and Vnet/VLnet systems in Yokogawa CENTUM environments.
Q2: Does it support redundancy?
Yes, it uses a dual redundant architecture to ensure high system availability.
Q3: What systems is it compatible with?
It is compatible with CENTUM VP, CENTUM CS 3000, and other Yokogawa control systems.
Q4: What happens if one communication path fails?
The system automatically switches to the redundant path without interrupting communication.
Q5: Is it suitable for legacy system integration?
Yes, it is commonly used for bridging legacy Vnet systems with modern Vnet/IP networks.
Q6: What type of mounting does it use?
It is designed for standard 19-inch rack mounting in industrial control cabinets.
Q7: Does it support full-duplex communication?
Yes, it supports full-duplex data transmission for stable performance.
Q8: Is it used in safety systems?
It is used in high-availability control networks but is not itself a safety instrumented device.
Q9: What ensures its reliability in harsh environments?
Industrial-grade hardware design and redundant communication architecture.
Q10: Can it operate continuously?
Yes, it is built for continuous 24/7 industrial operation.
