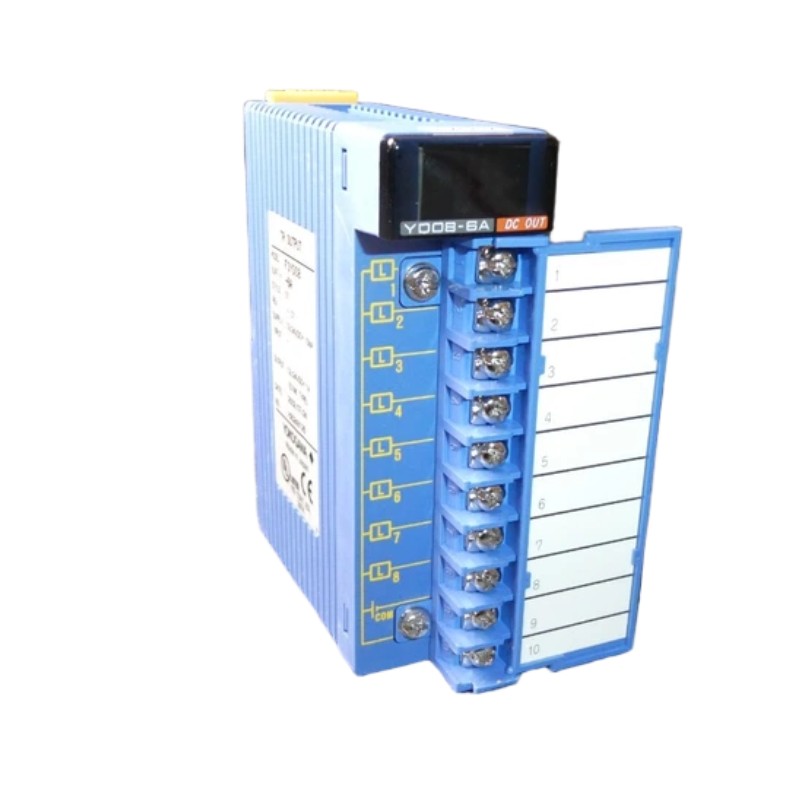

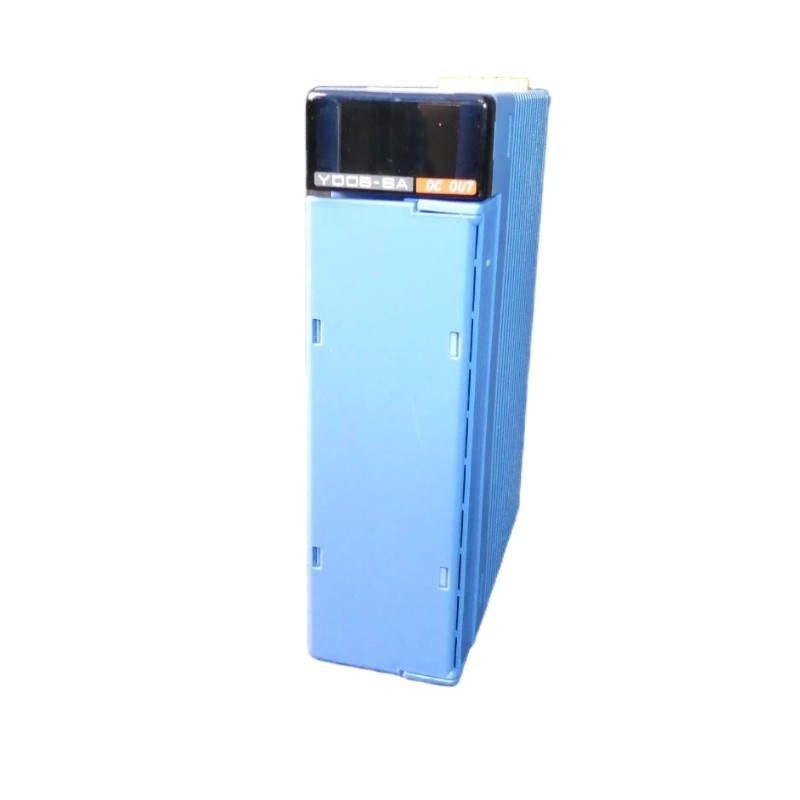

Yokogawa F3YD08-6A Output Module

Applications

The Yokogawa F3YD08-6A output module is designed for compact, high-speed digital control in FA-M3 PLC systems, where reliable switching of field devices is required. It is widely used in industrial automation environments that demand stable and precise output control.

Typical applications include:

• PLC-based machine automation and sequencing systems
• Factory production line actuator and solenoid control
• Conveyor and material handling control systems
• Industrial robot peripheral I/O control
• General-purpose discrete output expansion in FA-M3 architectures

Its fast switching response and isolated transistor design make it suitable for high-frequency control tasks in electrically noisy environments.

Advantages

The F3YD08-6A provides a strong balance of speed, reliability, and compact design, making it a trusted choice for industrial digital output applications.

• 8-channel transistor output for flexible control configurations
• High-speed switching performance suitable for real-time automation
• Photocoupler isolation improves electrical noise resistance
• Compact module design saves valuable PLC rack space
• Stable operation in industrial environments with electrical interference
• Optimized for seamless integration with Yokogawa FA-M3 systems

It is especially effective in systems where precise timing and stable switching are critical.

Technical FAQs (10 Technical Questions)

Q1: What type of output does F3YD08-6A use?
It uses transistor (sink-type) digital outputs.

Q2: How many output channels are available?
It provides 8 independent output points.

Q3: What is the main application of this module?
It is used for controlling actuators, relays, and industrial field devices.

Q4: Is it electrically isolated?
Yes, it uses photocoupler isolation for noise protection.

Q5: What system is it compatible with?
It is designed for Yokogawa FA-M3 PLC systems.

Q6: Is it suitable for high-speed switching?
Yes, it supports fast response times suitable for automation control.

Q7: Can it be used in harsh industrial environments?
Yes, it is designed for industrial-grade electrical conditions.

Q8: Does it require external power supply?
It operates within the FA-M3 system power architecture.

Q9: Is it suitable for safety-critical applications?
It is used in industrial control systems but not classified as a safety-rated module.

Q10: What improves its long-term reliability?
Isolation design and stable transistor switching reduce wear and failure risk.
